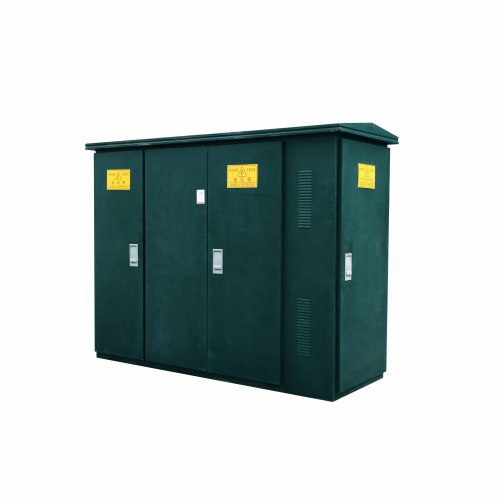

ZGS Combined Transformers American Box Transformers

Zgs American Box Combined Transformer

Ultimate Guide to the ZG(F)S Series Combined Transformer (American Box Transformer)

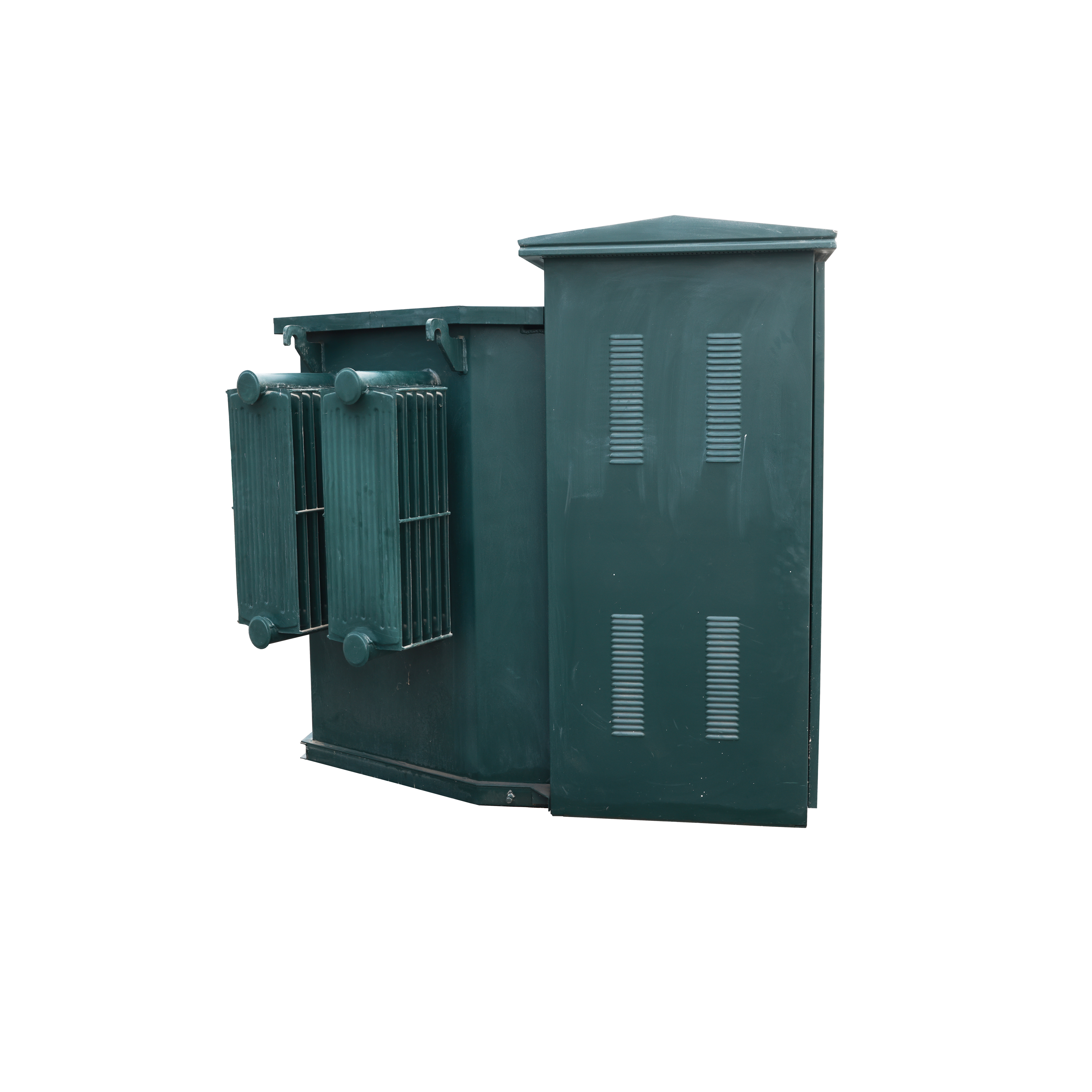

Product Overview: The ZG(F)S Series Prefabricated Substation, also recognized as the American Transformer, is a revolutionary product in the electrical power distribution industry. This transformer is a pre-integrated unit that seamlessly combines the transformer, high-voltage load switch, and protective fuses within a single, compact enclosure, offering an efficient and secure method for power distribution.

Technical features Beautiful appearance, compact structure, small size, flexible and convenient disassembly and assembly, fully sealed, high and low pressure components are separated and placed in the box, which is only equivalent to 115~1/3 of the volume of similar box-type transformers. The unique box anti-corrosion design and special spray painting treatment can be widely used in various harsh environmental conditions, such as stormy and highly polluted areas. The box adopts a sealed design and is maintenance-free.

Technical Features and Benefits:

1. Integrated Design:

   • The ZG(F)S Series is a pre-integrated unit that consolidates the transformer, high-voltage load switch, and protective fuses into one enclosure, simplifying installation and reducing the physical footprint required for traditional substation setups.

2. Safety and Insulation:

   • The transformer features a fully insulated design, eliminating the need for additional insulation distances and ensuring the safety of personnel during operations. The high-voltage leads are fully insulated, enhancing safety further.

3. Compact Design:

   • The compact design of the ZG(F)S Series Padmount Transformer reduces the physical space required compared to traditional transformers, with a volume reduction to approximately 1/5 to 1/3 of that of similar box-type transformers.

4. Versatility:

   • The ZG(F)S Series is suitable for a wide range of applications, including new residential areas, green belts, parks, stations, docks, hotels, construction sites, and airports, making it a versatile solution for various power distribution needs.

5. Environmental Durability:

   • The transformer is engineered with a unique corrosion-resistant design and special paint treatment, making it suitable for use in harsh environments, such as areas with frequent storms and high pollution levels.

6. Low Maintenance:

   • The sealed design of the transformer reduces maintenance requirements, offering a cost-effective, long-term solution for power distribution.

7. Dual Protection System:

   • The transformer is equipped with both insert-type and backup fuses, providing comprehensive protection against overloads and short circuits, enhancing the reliability of the power distribution system.

8. Overload Capacity:

   • The ZG(F)S Series can handle overloads up to 2 times the rated load for 2 hours and 1.6 times the load for 7 hours, ensuring continuous power supply even under demanding conditions.

Operational Excellence:

1. High-Voltage Load Switch:The high-voltage load switch is installed within the Transformer oil tank, allowing for a small form factor and 360° directional switching, ensuring reliable interruption of load current and high power supply reliability.

2. Cable Connections:The transformer is designed for easy cable connections, with the option for live cable plugging and unplugging, which simplifies the connection process and reduces installation time and costs.

3. Investment Efficiency:he compact and integrated design of the ZG(F)S Series reduces the need for a dedicated distribution room, lowering initial investment and installation expenses.

Conclusion: The ZG(F)S Series Combined Transformer is a state-of-the-art solution for power distribution, combining efficiency, safety, and environmental resilience in a single package. Its design meets the highest standards of modern electrical infrastructure, making it a preferred choice for various applications where reliability and space optimization are paramount.
