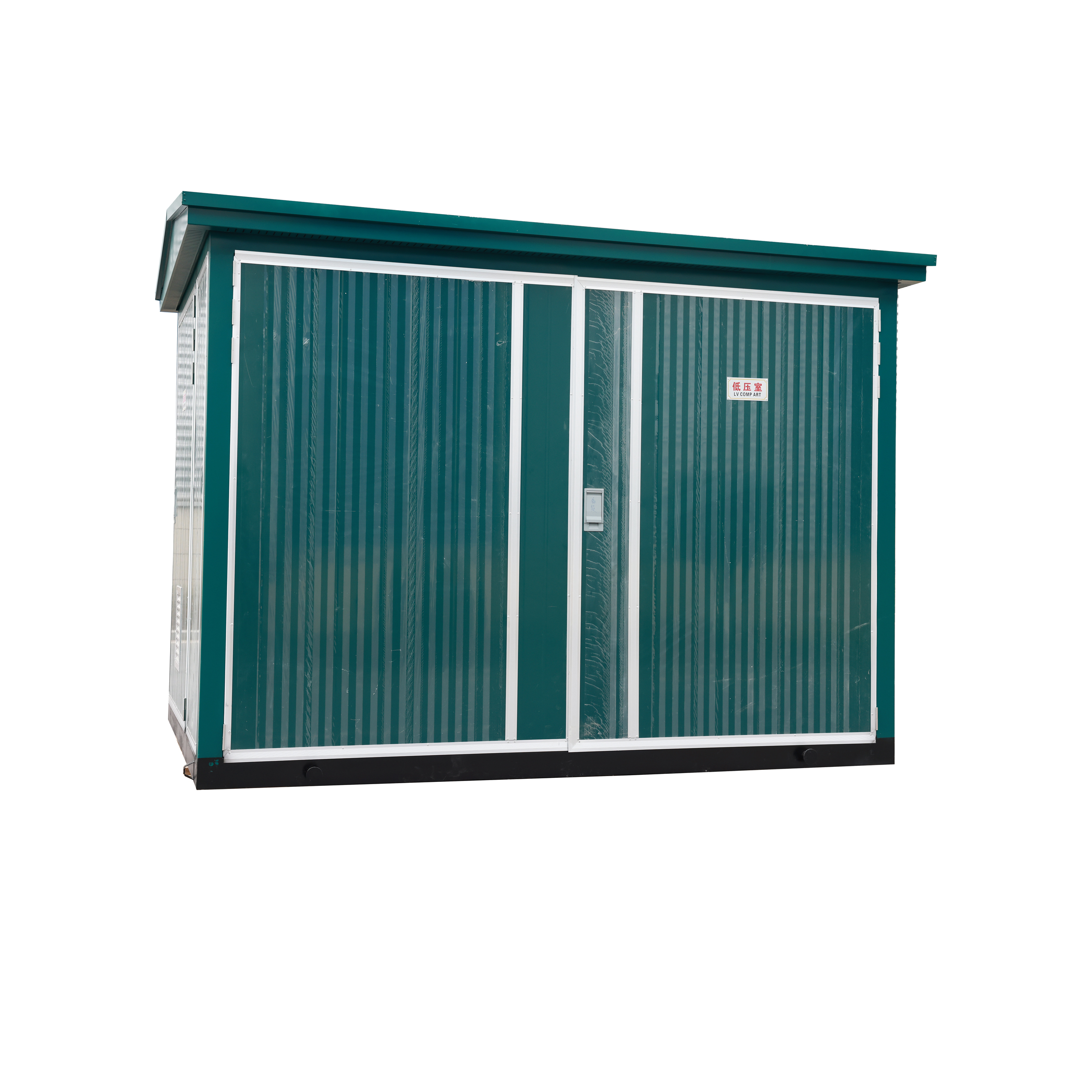

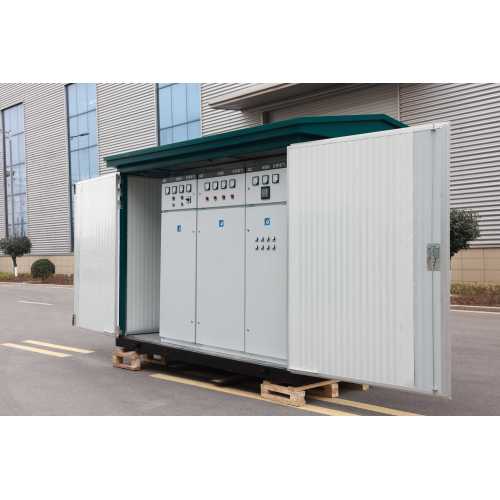

European Box Type Substation 10KV

10KV European Prefabricated Substation Product Description

Overview: Prefabricated substations, also known as "Prefabricated box-type substation" are an innovative solution in power distribution systems that offer economic, rapid, safe, and reliable performance. These European Substation integrate high-voltage switchgear, transformers, and low-voltage distribution equipment within a compact, pre-assembled enclosure. They are designed to meet the specific energy needs of modern energy demands while ensuring strong reliability and flexibility.

Technical Specifications:

1. Prefabricated substation is an economical, fast, safe and reliable distribution device in today's power distribution system. It is a prefabricated mobile distribution device that integrates high-voltage switchgear, transformer and low-voltage switchgear. Prefabricated box-type substation has a series of advantages such as strong completeness, small size, small footprint, ability to penetrate into the load center, improve power supply quality, reduce line loss, shorten power transmission cycle, flexible site selection, strong environmental adaptability, easy installation, safe and reliable operation, low investment and quick results.

2. Internal Fault Protection:

   • Minimum Internal Fault Protection Classification IAC AB 20 kA 1 s, ensuring protection against internal arc faults

3. Accessibility and Safety:

   • High-voltage, transformer, and low-voltage compartments are accessible through padlockable doors for secure maintenance
   • Minimum Degree of protection: IP43D for HV and LV compartments, IP23D for the transformer compartment

4. Ventilation and Cooling:

   • Natural ventilation for cooling, ensuring energy efficiency and reduced operational costs

5. Electrical Equipment:

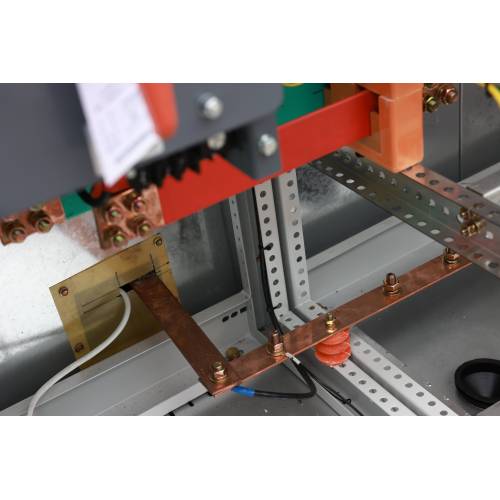

   • High-voltage switchgear, low-voltage switchboard, and distribution transformers are housed in separate compartments to minimize the transfer of arc faults

6. Type Test and Quality:

   • Type test certificates are provided, ensuring compliance with industry standards
   • Personal safety is prioritized, with protection against climate effects and environmental hazards

Applications: Prefabricated substations are widely deployed in various settings, including urban distribution networks, commercial centers, residential areas, industrial parks, and outdoor facilities such as parks, stations, airports, ports, and temporary setups

Advantages:

1. Space Efficiency: Compact design suitable for areas with limited space, such as urban and industrial settings
2. Rapid Deployment: Factory-assembled and pre-tested, reducing on-site construction time and complexity
3. Enhanced Safety: Enclosed design isolates electrical equipment, reducing environmental risks and improving reliability
4. Environmental Consideration: Equipped with noise and leak control devices, minimizing environmental impact
5. Cost-Effectiveness: Lower operational costs due to simplified maintenance and management.
6. Aesthetic Design: Modern appearance with customizable colors, blending seamlessly with surroundings

Conclusion: Prefabricated substations represent a significant advancement in power distribution technology, offering a combination of efficiency, reliability, and adaptability. Their modular design, factory prefabrication, and integrated components make them an ideal choice for a wide range of applications, from urban areas to remote locations, providing a safe and sustainable solution for energy distribution.
