ZGS Combined type transformer substation

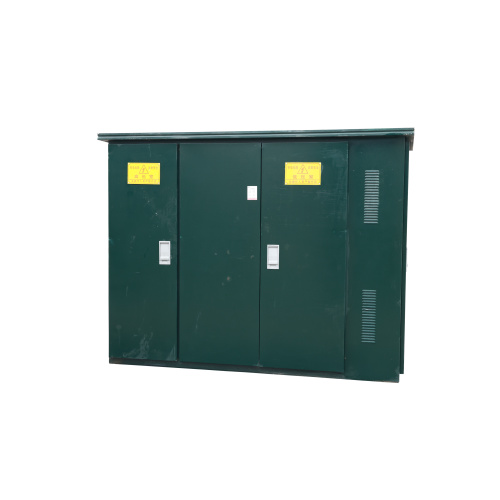

ZG(F)S Series Combined Transformer (American Box Transformer)

Product Profile: The ZG(F)S Series Prefabricated Substation, recognized for its American transformer configuration, is an innovative approach to power distribution. This transformer is designed to integrate key electrical components within a single, compact unit, offering a space-saving and secure solution for modern power distribution needs.

Key Technical Attributes:

1. Integrated Power Distribution Unit:

   • The ZG(F)S Series is a pre-assembled power distribution unit that consolidates the transformer, high-voltage load switch, and protective fuses into one enclosure, simplifying installation and reducing the physical space required.

2. Safety and Insulation:

   • The transformer is fully insulated, eliminating the need for additional insulation distances and ensuring the safety of personnel during operations. The high-voltage leads are fully insulated, enhancing safety further.

3. Compact Design:

   • The compact design of the ZG(F)S Series reduces the physical space required compared to traditional transformers, with a volume reduction to approximately 1/5 to 1/3 of that of similar box-type transformers.

4. Versatile Application Suitability:

   • The ZG(F)S Series is suitable for a wide range of applications, including new residential areas, green belts, parks, stations, docks, hotels, construction sites, and airports, making it a versatile solution for various power distribution needs.

5. Environmental Durability:

   • The transformer is engineered with a unique corrosion-resistant design and special paint treatment, making it suitable for use in harsh environments, such as areas with frequent storms and high pollution levels.

6. Low Maintenance:

   • The sealed design of the transformer reduces maintenance requirements, offering a cost-effective, long-term solution for power distribution.

7. Dual Protection System:

   • The transformer is equipped with both insert-type and backup fuses, providing comprehensive protection against overloads and short circuits, enhancing the reliability of the power distribution system.

8. High Overload Capacity:

   • The ZG(F)S Series can handle overloads up to 2 times the rated load for 2 hours and 1.6 times the load for 7 hours, ensuring continuous power supply even under demanding conditions.

Detailed Technical Parameters:

1. Voltage Ratings:

   • High-voltage side: 10kV to 35kV, adaptable to various distribution network requirements.
   • Low-voltage side: 0.4kV, standard for low-voltage power supply to end-users.

2. Capacity Range:

   • The series offers a wide range of capacities from several hundred kVA to several thousand kVA, catering to different load demands.

3. Connection Group:

   • The connection group label is crucial for determining the voltage transformation ratio and phase relationship between the primary and secondary sides of the transformer.

Fully sealed and fully insulated, no insulation distance is required, and personal safety is reliably guaranteed. It can be used for both ring network and terminal, and the conversion is very convenient, which improves the reliability of power supply. It adopts double fuse protection to reduce the operating cost. The plug-in fuse is a double-sensitive fuse. The transformer uses high-ignition-point oil and can be placed in the building to eliminate the fire hazard.

Conclusion: The ZG(F)S Series Combined Transformer is a state-of-the-art solution for power distribution, combining efficiency, safety, and environmental resilience in a single package. Its design meets the highest standards of modern electrical infrastructure, making it a preferred choice for various applications where reliability and space optimization are paramount.
