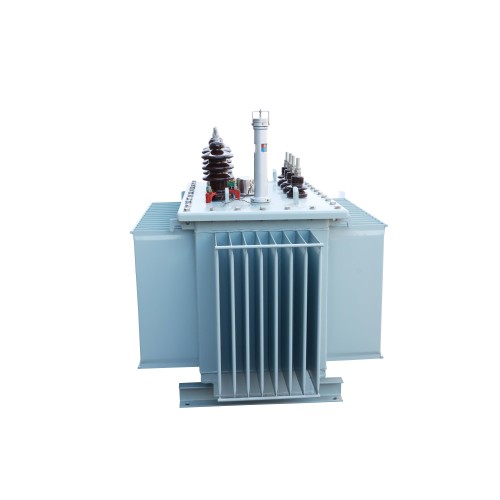

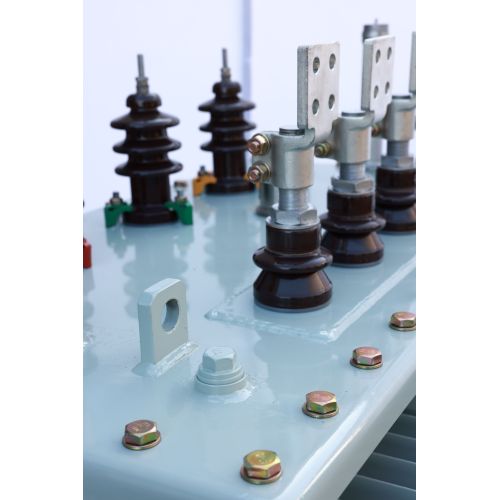

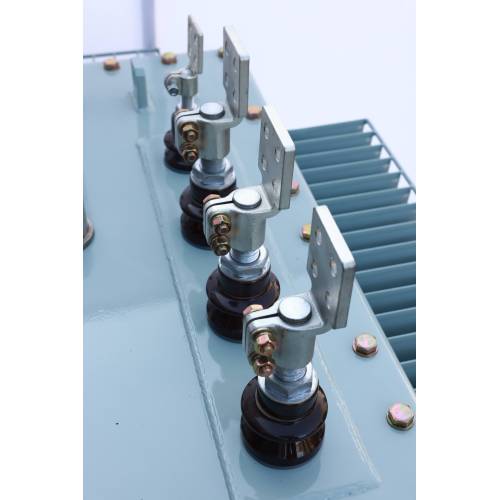

Product Description: S11 Series Oil Immersed Transformer - Pioneering a New Era in Power Distribution

A transformer is an electrical device used to change the size of voltage and current while keeping the frequency of alternating current unchanged. It is based on the principle of electromagnetic induction and realizes the conversion and transmission of electrical energy through the magnetic field coupling between two or more windings. Transformers are widely used in power systems, industrial equipment, electronic circuits and other fields, and are one of the indispensable core devices in modern power technology.

The working principle of the transformer is based on Faraday's law of electromagnetic induction and Lenz's law. When an alternating current is passed through a winding (called the primary winding), a changing magnetic field is generated around the winding. This magnetic field is transmitted to another winding (called the secondary winding) through the iron core, and an electromotive force is induced in the secondary winding. If the secondary winding is connected to a load, a current will be generated, thereby realizing the transmission of electrical energy.

The S11 Series Oil-Filled Transformer represent a revolutionary advancement in the realm of electrical power distribution, establishing new benchmarks for energy efficiency, resource conservation, and environmental responsibility. These transformers build upon and surpass the foundational designs of the S9 and S10 models by incorporating superior cold-rolled grain-oriented silicon steel sheets and utilizing a sophisticated multi-step progressive full-lap joint design. This ensures optimal performance while maintaining a commitment to environmental sustainability.

Technical Specifications:

Enhanced Core Technology: The S11 series features premium cold-rolled grain-oriented silicon steel sheets, renowned for their exceptional magnetic properties. Coupled with an advanced core configuration, these transformers deliver unparalleled energy efficiency and minimal energy losses.
Energy Efficiency: The S11 series showcases a remarkable 30% reduction in no-load losses when compared to the S9 series. This places the S11 series at the vanguard of international efforts to conserve energy and mitigate pollution. This improvement not only aligns with global standards but also contributes to cost savings and environmental sustainability.

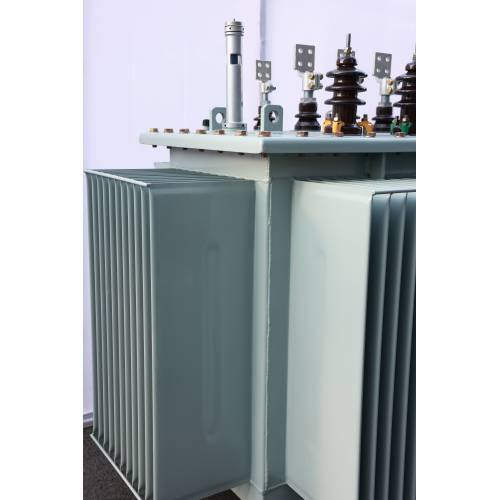

Structural Robustness and Lightweight Design: Characterized by a streamlined and logical design, the S11 series offers exceptional structural strength with reduced mass. An optimized oil circulation system facilitates enhanced thermal dissipation, minimizing energy dissipation and ensuring peak efficiency with minimal heat generation.
Advanced Cooling System: Equipped with an advanced cooling system that effectively dissipates heat through the principles of convection and conduction. This system ensures stable temperatures under varying loads, thereby extending the service life and ensuring consistent performance of the transformers.
Low Noise Operation: Engineered for minimal noise during operation, the S11 series transformers are suitable for both industrial and residential installations without causing disturbance.
High Short-Circuit Strength: Designed to withstand high short-circuit forces, providing robust protection for the electrical system and ensuring safety and reliability under all operating conditions.
Ecological Responsibility: The manufacturing process of the S11 series adheres to ecological responsibility, utilizing materials and processes that minimize environmental impact and support sustainable development goals.
Regulatory Compliance: Manufactured in strict compliance with the International Electrotechnical Commission (IEC) 60076 and the Chinese National Standard GB1094, ensuring that each transformer meets the stringent safety, reliability, and performance criteria set by the industry's leading standards.
Durable and Reliable Operation: The S11 series transformers are designed for long-term, reliable operation with minimal maintenance requirements, offering a cost-effective and enduring solution for power distribution.

Inspection of oil-immersed transformers:

1. After long-distance transportation, the transformer will be subjected to greater vibration and needs to be inspected. The transformer body inspection is divided into hanging core and hanging cover. Regardless of the hanging core or hanging cover, the inspection content is the same. The hanging core inspection should be completed within one working day to speed up the inspection process.

2. Take the hanging core inspection as an example: ⑴ The transformer core should be hung indoors. If it is outdoors, there should be a tent to prevent the hanging core from being prohibited in bad weather such as rain, snow, fog, wind and sand. ⑵ The hanging core temperature in winter shall not be lower than zero degrees, otherwise the transformer will be heated to make the core temperature higher than the ambient temperature by 10℃. ⑶ The shorter the time the core is exposed to the air, the better. It should not exceed 16 hours when the relative humidity is 65%, and should not exceed 12 hours when the relative humidity is 25%. The calculation time is from the start of oil draining to the end of oil filling. ⑷ When the relative humidity exceeds 75%, the hanging core inspection is not allowed. ⑸ During the hanging core inspection, pay attention to prevent parts and tools from falling into the oil tank.
