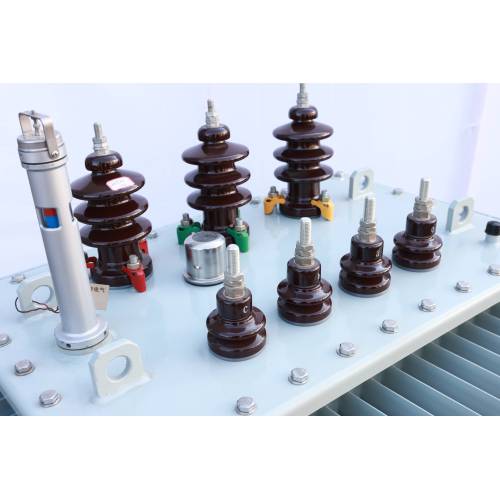

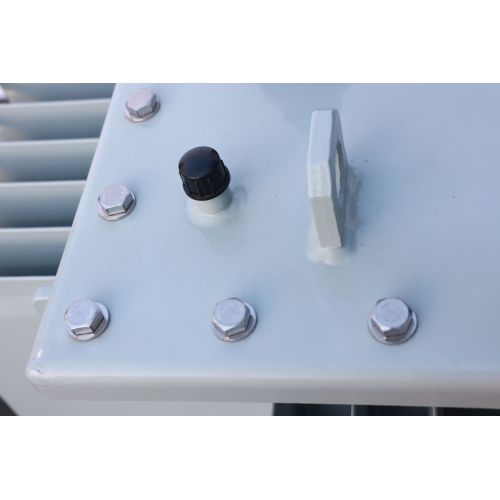

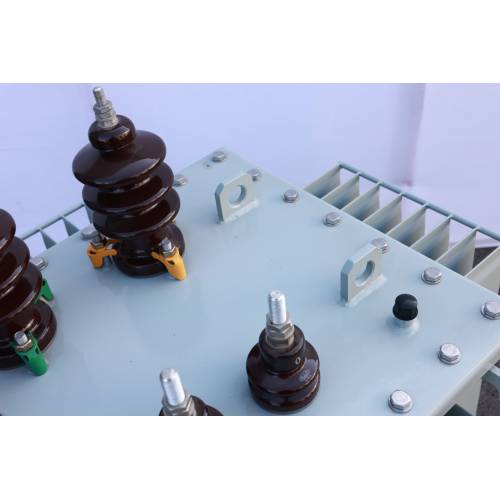

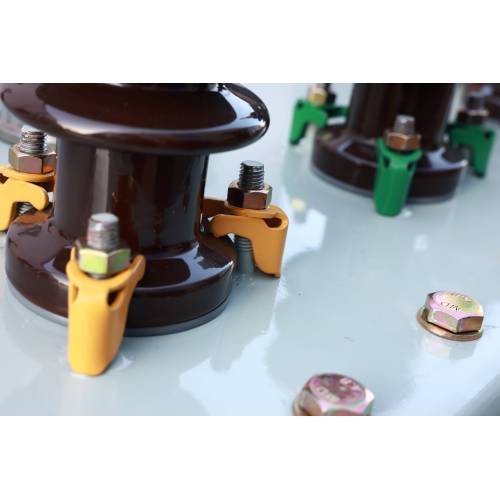

S11/S13 Oil Filled Transformer

S11/S13 Oil-Filled Transformer

Introduction

S11 Series Oil-Filled Transformer

Key Features

• Energy Efficiency: Achieves a 30% reduction in no-load losses compared to the S9 series, translating into significant cost savings and a reduced environmental footprint.
• Structural Robustness: Engineered with a robust structure and optimized oil circulation, leading to improved cooling efficiency and ensuring stable operation under various load conditions.
• Compliance with Standards: Strict adherence to IEC 60076 and GB1094 standards ensures that the S11 series transformers are in full compliance with international manufacturing regulations, guaranteeing safety, reliability, and performance.
• Compact Design: The S11 series is designed to occupy minimal space, making them an ideal choice for installations where space is at a premium.
• Low Noise Levels: The design includes noise reduction measures, making them suitable for urban and residential areas where noise pollution is a concern.

Key Features

• Energy Efficiency: Offers a 25% reduction in no-load losses and an 80% reduction in no-load current compared to the S11 series, further enhancing energy efficiency.
• Advanced Materials: Uses high-quality 23ZH90 silicon steel sheets to reduce hysteresis and eddy current losses.
• Winding Design: Copper foil winding improves current distribution and short-circuit resistance.
• Compliance with Standards: Adheres to IEC 60076 and GB1094 standards, ensuring compliance with the highest industry benchmarks.
• Low Noise Levels: Very low noise levels, making them suitable for quiet environments.

Applications

• Power Plants and Electrical Grids: Perfectly suited for power plants and electrical grids, providing the backbone for efficient energy distribution and management.
• Urban Infrastructure: Ideal for critical urban infrastructure such as airports and subways, where a reliable and efficient power supply is essential for smooth operations.Industrial Settings: Robust construction and ability to handle varying loads make them suitable for industrial environments, including manufacturing plants and factories where consistent power quality is crucial.
• Rural Electrification: Suitable for remote locations where reliable power distribution infrastructure is needed to support agricultural activities and rural development

Energy efficiency rating of 10 kV oil-immersed three-phase double-winding non-excitation voltage-regulating Distribution transformer
