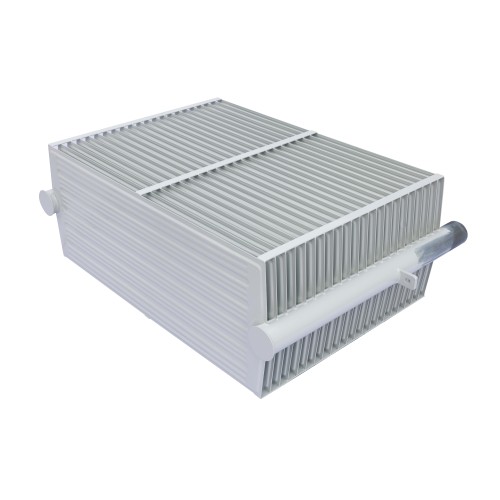

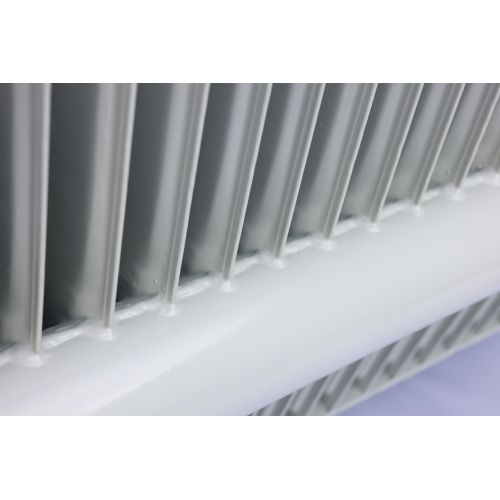

Cooling panels for oil-immersed transformers

Product Details: Transformer Components——Oil-immersed Transformer Heat Sink

Overview: Our oil-immersed Transformer Radiator is designed to provide efficient cooling for electrical components, particularly transformers. This product is engineered to optimize heat dissipation, ensuring the longevity and reliability of your transformer equipment.

Key Features:

1. Constructional Features:

   • Oil filling plug
   • DIN/EN bushings
   • Oil-level indicator
   • Dial type thermometer
   • Pressure relief device
   • Oil filling pipe
   • Oil drain valve
   • Off-circuit tap changer
   • Earthing terminals
   • Lifting lugs
   • Lashing lug
   • Rating plate
   • Dehydrating breather (conservator type)

2. Standard Fittings/Accessories:

   • Plug-in bushings
   • Dial type thermometer with two contacts
   • DGPT2 / RIS / DMCR control device
   • Pressure – vacuum gauge
   • Pressure switch
   • Pressure relief valve with contacts
   • Buchholz relay (conservator type)
   • Tap changer with more than five positions
   • LV/HV Cable boxes / Common cable box
   • Jacking pad
   • Bidirectional rollers
   • Protection CTs

3. Optional Accessories:

   • Oil Level Indicator
   • Conservator
   • High Voltage bushing
   • Top Cover
   • Tap Changer (OCTC)

4. Product Performance:

   • The transformer is designed to withstand thermal and mechanical effects of external short circuits without injury.
   • Capable of withstanding over-fluxing conditions up to 170% without danger.
   • Designed for continuous operation without danger on any tapping at the rated MVA with voltage variation of ±10%.

5. Heat Dissipation Technology:

   • Shihlin's oil-immersed switching Power Transformer features a high-performance wave-shaped outer casing that offers excellent radiation, reduced oil-leaking possibility, good outer casing strain ability, and a unique radiator respiration effect.

6. Material and Efficiency:

   • Vacuum dip paint for good insulation and high voltage resistance.
   • Transformer finishing paint no. 45 oil shell adopts heat sink, high overload capacity, good insulation.
   • Low no-load loss and low load loss for green safety and energy saving.

7. Cooling Method:

   • Oil-immersed self-cooling ensures effective heat dissipation and protection of the transformer coils.

8. Environmental Adaptability:

   • Suitable for outdoor installation or in a separate transformer room due to fire prevention needs.

9. Packaging:

   • Custom high-strength wooden cases are used to ensure the safe transportation of the product.

Technical Specifications:

• Core Shape: R type
• Voltage Ratio: 30-1600KVA
• Number of Power Phases: Three-phase
• Rated Power: 30kva
• Moisture-proof Method: Sealed
• Cooling Form: Liquid / Oil immersion
• Frequency Characteristics: High frequency
• Winding Form: Three windings
• Core Form: Ring
• Shape Structure: Vertical
• Model: S11

Our oil-immersed Transformer Cooling Radiator is designed to meet the highest standards of performance and reliability, ensuring efficient operation and longevity in various environmental conditions. For more information or to place an order, please contact us directly.
