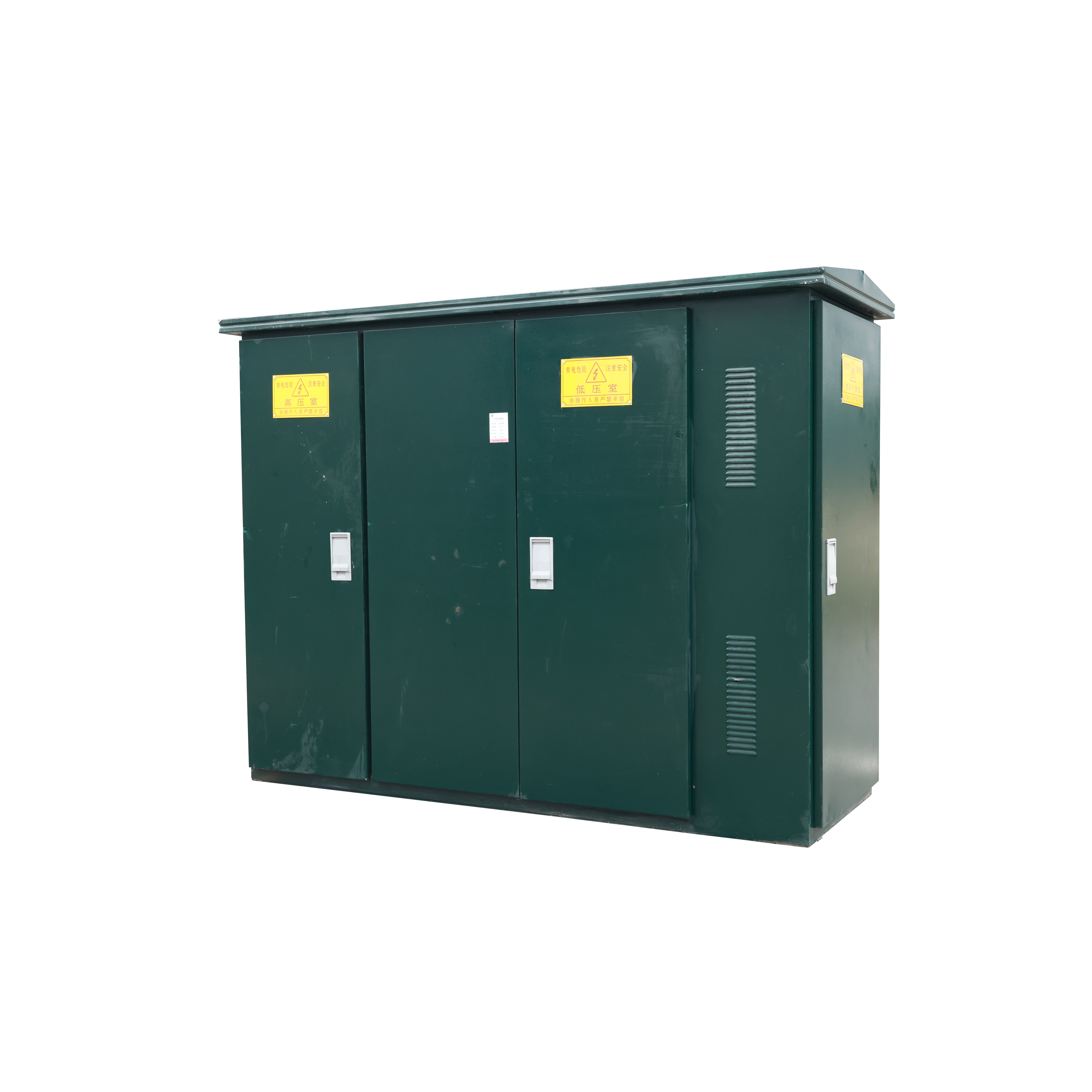

ZGS Compact Outdoor combined box type Substation(American)

Energy-Saving Zgs Compact Outdoor Substation with American Configuration

Application Fields: Widely used in new residential areas, green belts, parks, stations, docks, hotels, construction sites, airports, and other locations.

Technical Features:

• Aesthetically pleasing design with a compact structure and small size.
• Easy to assemble and disassemble, with high and low voltage components separated and housed within the box, occupying only 1/5 to 1/3 of the volume of similar box-type transformers.
• Space is reserved in the low-voltage compartment for customers to install low-voltage switches, transformers, meters, and remote control devices.
• Safe and reliable: The unique box corrosion-resistant design and special painting treatment make it suitable for various harsh environmental conditions, such as areas with frequent storms and high pollution. The box is designed to be sealed and maintenance-free.
• The high and low voltage components are reasonably arranged and separated for installation, with high-voltage terminal insulating protective covers or elbow-type cable plugs to ensure operational safety.
• The transformer is protected by dual fuses, including an insert-type fuse and a backup fuse. The insert-type fuse wire is sensitive to both temperature and current, providing overload protection, while the backup fuse offers short-circuit protection for the transformer.
• The high-voltage load switch is installed within the Transformer oil tank, featuring a small size and 360° directional switching capability, ensuring safe and reliable interruption of load current, ease of use, and high power supply reliability.
• Low investment for the substation: Due to its small size and compact structure, the Combined Transformer integrates the transformer, low-voltage equipment, metering, and measurement in one unit, eliminating the need for a distribution room. The incoming line is directly led from the cable trench, allowing for direct installation at the load center. The cable plug can be inserted and removed live when necessary, making connections convenient and reducing the investment and installation costs of the substation.
• Fully sealed and insulated, eliminating the need for insulating distances, ensuring personal safety.
• Suitable for both ring networks and terminal use, with easy conversion, improving power supply reliability.
• Strong overload capacity, allowing operation at 2 times the load for 2 hours and 1.6 times the load for 7 hours.
• Elbow-type cable connectors can be used as load switches in emergencies and have the characteristics of an isolating switch, offering convenient and flexible operation.
• Dual fuse protection reduces operating costs. The insert-type fuse wire is dual-sensitive.
• The transformer uses high-flash-point oil, which can be placed indoors to eliminate fire hazards.

Product Advantages:

1. Aesthetically pleasing appearance.
2. Compact structure.
3. Small size.
4. Flexible assembly and disassembly.
5. Convenience.
6. Fully sealed.
