Low loss Three-phase transformer

Product Summary:

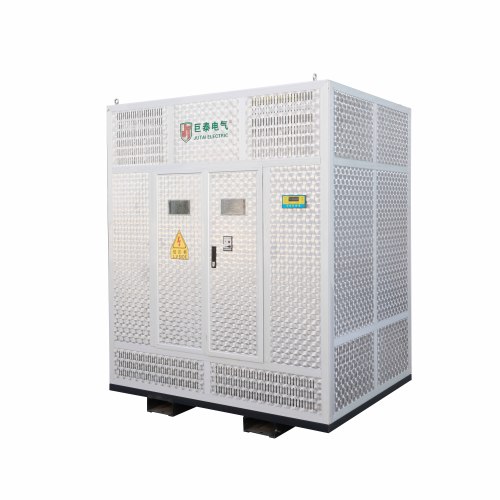

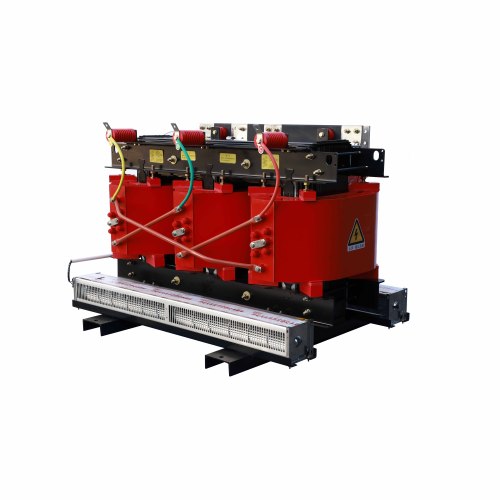

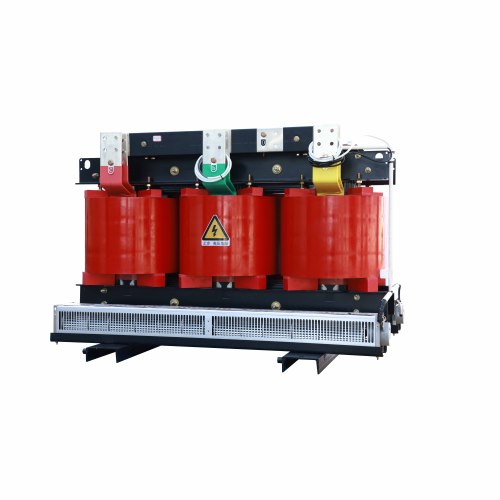

We are pleased to present our sophisticated 10kV three-phase Dry-type power transformer, a benchmark in electrical engineering that blends international technology with domestic innovation. This transformer is encapsulated in epoxy resin, offering inherent non-flammability, fireproofing, and explosion-proof characteristics, alongside a zero-maintenance regime and a neutral environmental footprint. Its compact form factor is ideal for central load placement, making it a space-efficient solution for various applications. It excels with a low partial discharge rate, minimal noise levels, and superior cooling efficiency, all governed by an intelligent temperature control system designed for remote monitoring and management.

Our dry-type distribution transformers are the epitome of modern electrical engineering, offering a perfect blend of performance, safety, and environmental consciousness. They are the preferred choice for applications where reliability, efficiency, and minimal environmental impact are paramount. Trust our SC(B) series transformers to deliver a dependable power supply for your critical operations, ensuring the smooth functioning of your facilities and the satisfaction of your energy needs. With their advanced features, innovative design, and commitment to sustainability, our transformers stand out as a leading solution in the power distribution industry.

Applications:

Our Dry Type Transformer is the quintessential choice for a variety of demanding applications, including:

• Urban power networks requiring efficient energy distribution in metropolitan areas.
• Commercial districts with high power density and reliability needs.
• Airports demanding consistent power supply for safety-critical operations.
• Offshore platforms and marine vessels for robust power solutions in harsh marine environments.
• Tunnels for stable and safe power supply in underground transportation systems.
• Hydroelectric plants for power management in large-scale renewable energy projects.
• Railway stations for dependable power in transportation hubs.

Technical Highlights:

• Core Construction: Meticulously crafted with premium silicon steel and employing a 45° full-lap joint, this transformer significantly reduces no-load losses and operational noise. The design ensures optimal magnetic flux distribution, enhancing overall performance.

• Winding Technology: The high-voltage winding is meticulously made from reinforced copper wire with H-grade insulation, ensuring electrical reliability and mechanical strength. The low-voltage winding utilizes copper foil with epoxy resin, providing exceptional strength and durability against short-circuit forces.

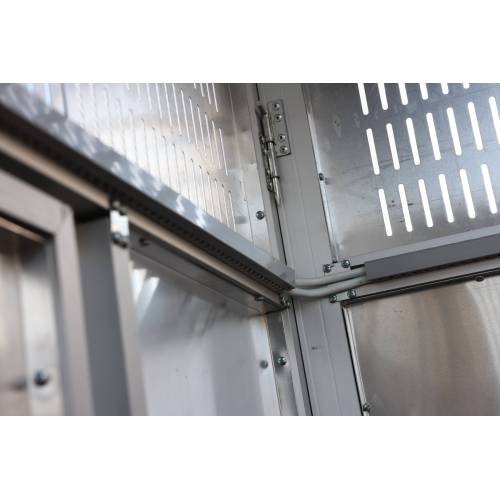

• Clamping System: The clamping system is engineered from low-magnetic steel, coated with a durable finish to ensure longevity and resistance to environmental factors, while maintaining an aesthetically pleasing appearance.

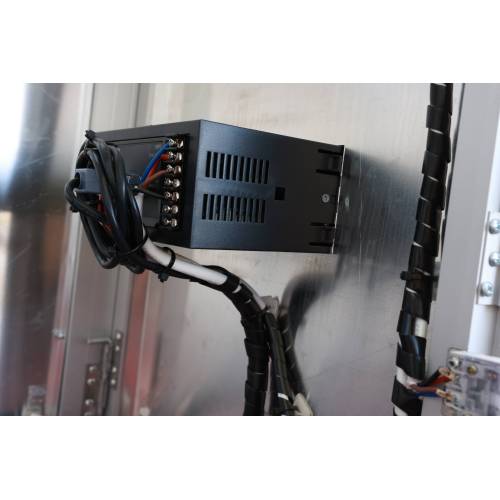

• Cooling System: Each phase is equipped with advanced cooling fans and a temperature controller, working in harmony to maintain optimal operating temperatures and enhance performance, preventing overheating and extending the service life of the transformer.

Advantages:

• Fire Safety: The epoxy resin encapsulation provides superior fire safety, reducing the risk of fire-related incidents and ensuring compliance with stringent safety standards.

• Energy Efficiency: The design and materials used result in low energy consumption, contributing to cost savings and a reduced environmental footprint.

• Quiet Operation: The low partial discharge rate and noise reduction features make our transformer suitable for use in noise-sensitive areas without compromising performance.

• Zero Pollution: As a Dry-Type Transformer, it eliminates the risk of oil leaks and associated environmental contamination, aligning with eco-friendly energy solutions.

• Maintenance-Free Operation: The epoxy resin encapsulation and robust design eliminate the need for regular maintenance, reducing operational costs and downtime.

• High Short-Circuit Resistance: The transformer is designed to withstand high short-circuit forces, ensuring the safety and reliability of the electrical system.

• Compact and Lightweight Design: The small footprint and lightweight construction facilitate easy installation and transportation, making it an ideal choice for space-constrained or remote locations.

Energy efficiency rating table of 10kV dry-type three-phase double-winding voltage regulating Distribution transformer:
