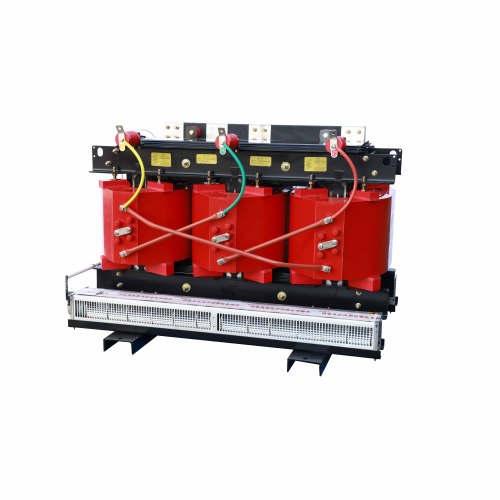

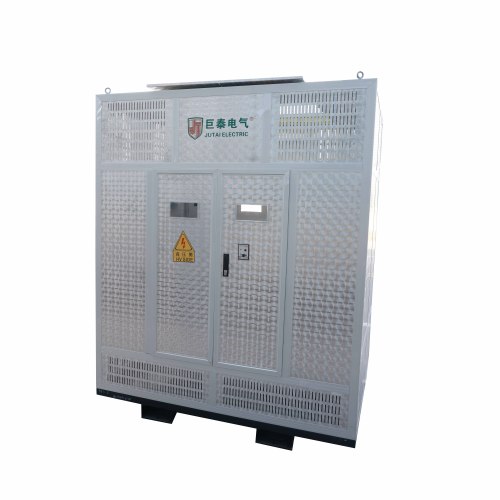

10kV Dry-type Distribution Transformer

Get Latest Price

Contact Now

Brand: jutai

Use: Power, Current, Electronic, High Frequency, Lighting, Instrument

Phase: Three

Coil Structure: Toroidal

Number Of Coils: Autotransformer

Description

Product Description

Dry-type Distribution transformer for Industry

Overview of Epoxy Numerical Casting Dry Type Power Transformer

10kV three-phase cast resin insulated Dry-type power transformer is SC(B)10, SC(B)11, SC(B)13 series Dry-Type Transformer independently developed with the introduction of foreign advanced technology. The coil is encapsulated with epoxy resin, so it is flame retardant, fireproof, explosion-proof, maintenance-free, pollution-free, small in size, and can be directly installed at the load center.

Epoxy resin dry-type transformers have the following advantages

(1) High insulation strength: Cast epoxy resin has an insulation breakdown field strength of 18~22kV/mm, and has roughly the same lightning impulse strength as oil-immersed transformers of the same voltage level.

(2) Strong short-circuit resistance: Due to the material properties of the resin and the fact that the winding is cast as a whole and becomes a rigid body after heating and curing, the mechanical strength is very high. Sudden short-circuit tests have shown that cast dry-type transformers are rarely damaged by short circuits.

(3) Outstanding disaster prevention performance: Epoxy resin is flame-retardant and self-extinguishing, and will not cause secondary disasters such as explosions.

(4) Excellent environmental performance: Epoxy resin is a chemically extremely stable material that is moisture-proof and dust-proof. It can operate reliably even in harsh environments such as polluted air, and can even operate normally at 100% humidity. It can be put into operation again after shutdown without drying and preheating.

(5) Maintenance-free: With the perfect temperature control and temperature display system, epoxy cast dry-type transformers can now be maintenance-free, which can greatly reduce the burden on operators and reduce operating costs.

(6) Low operating loss and high operating efficiency.

(7) Low noise.

(8) Small size, light weight, easy installation and commissioning.

(9) No need for a separate transformer room, no need for hanging core maintenance, saving floor space and correspondingly saving civil engineering investment.

Application fields

Widely used in power transformation and distribution of urban power grids, high-rise buildings, commercial centers, airports, offshore drilling platforms, ships, tunnels, large hydropower stations, railway stations, etc.
