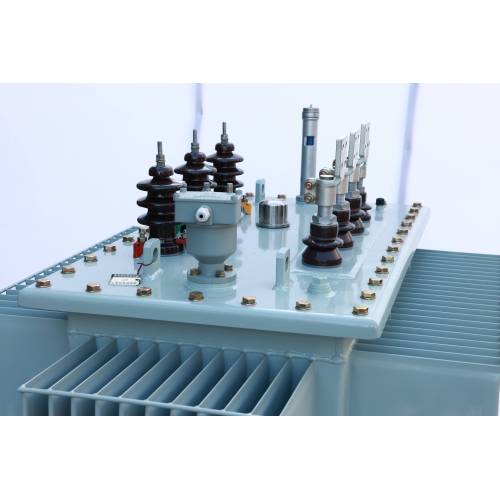

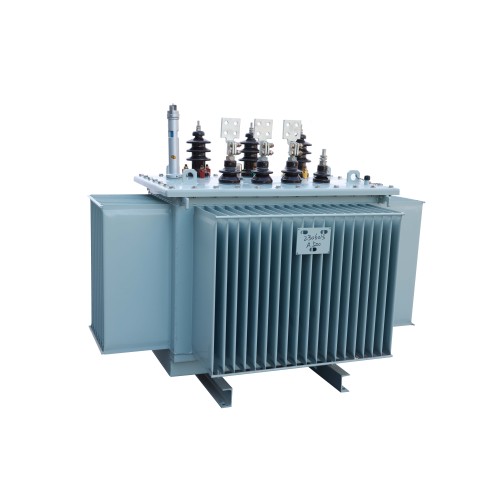

S11/S13/S20/S22 Oil-Filled Electric Transformer

S11/S13/S20/S22 Oil-Filled Electric Transformer

Get Latest Price

Contact Now

Brand: Jutai

Description

Product Description

S11 Series Oil Immersed Transformer

Product Introduction

The S11 series Oil-Filled Transformer represent a significant leap forward in power distribution technology.The S11 series Power Transformer achieve a remarkable 30% reduction in no-load losses compared to the S9 series. A transformer is a static electrical device that uses the principle of electromagnetic induction to convert AC power of one voltage level into AC power of another voltage level. Oil-immersed transformers rely on oil as a cooling medium, such as oil-immersed self-cooling, oil-immersed air cooling, oil-immersed water cooling, forced oil circulation air cooling, etc.

1. The main function of the transformer in the power system is to convert voltage to facilitate power transmission.

2. Increasing the voltage can reduce line losses, improve the economy of power transmission, and achieve the purpose of long-distance power transmission.

3. Reduce the voltage and convert the high voltage into the voltage of each level required by the user to meet the needs of the user.

The structure of Oil-immersed Transformer:

1. Body: iron core, winding, insulation, lead wire (including voltage regulator, lead wire clamp, etc.)

2. Oil tank: oil tank body, oil tank accessories (including oil pillow, throttle valve, etc.)

3. Cooling device (including radiator, fan, oil pump, etc.)

4. Protection device (including explosion-proof valve, gas relay, temperature measuring element, respirator, etc.)

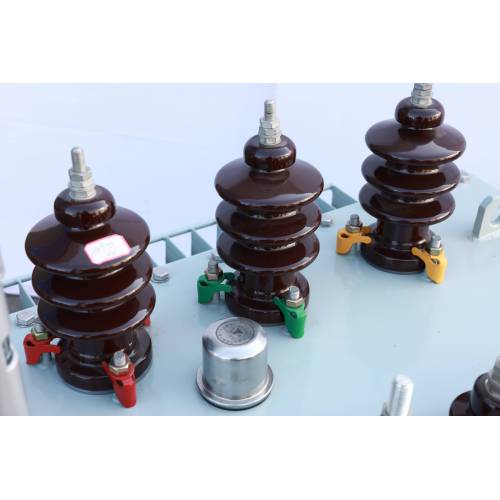

5. Outlet device (including bushing, etc.)

Key Technical Features

S11 series Power Transformers use high-quality cold-rolled silicon steel sheets. These steel sheets have superior magnetic properties and low iron losses, which helps improve the overall efficiency of the transformer. Compared with the S9 series, the S11 series oil-immersed transformers achieve a significant 30% reduction in no-load losses. This significant improvement in energy efficiency has led to significant energy savings and is in line with global energy conservation efforts.
The S11 series oil-immersed transformers feature a streamlined and robust design that ensures the integrity of the transformer structure, reduces weight, and improves the oil circulation structure.
The S11 series is manufactured in strict accordance with IEC 60076 and GB1094 standards, meeting the safety and performance requirements of the highest international and national standards. This compliance ensures the reliability and safety of the transformer.
