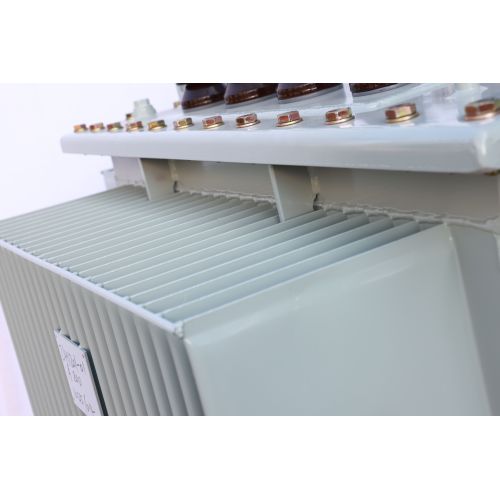

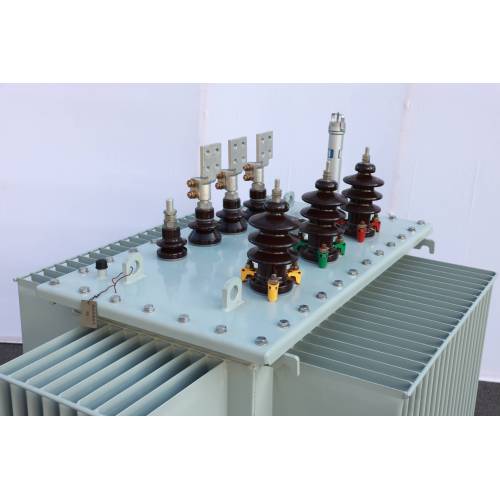

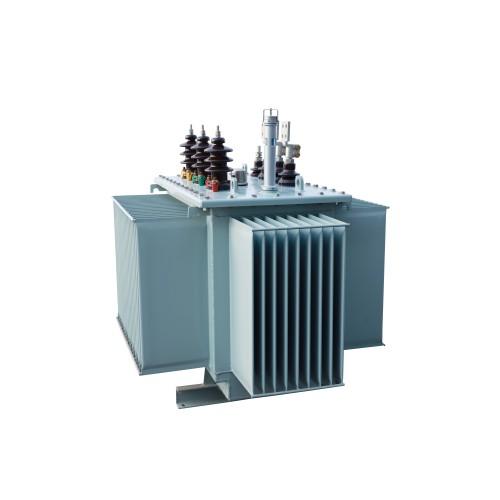

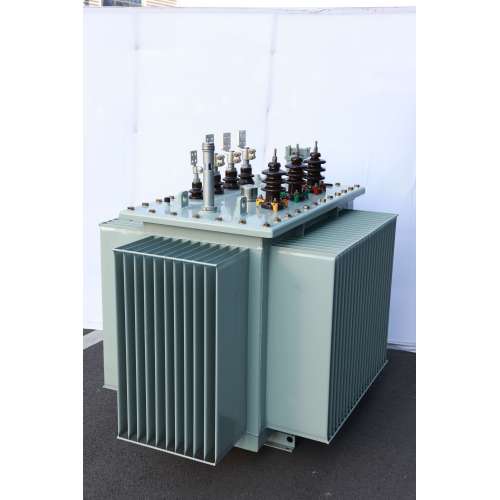

10kV S11 Oil Type Transformers

S11 Series Oil-Filled Transformer: Redefining Efficiency and Sustainability in Power Distribution

Introduction: The S11 series Oil-immersed Transformer signify a groundbreaking evolution in electrical power distribution, setting new benchmarks for energy efficiency, resource conservation, and ecological responsibility. These transformers refine and surpass the established designs of the S9 and S10 models by incorporating superior cold-rolled grain-oriented silicon steel sheets and an advanced multi-step progressive full-lap joint design, ensuring peak performance and environmental sustainability.

Technical Specifications:

1. Enhanced Energy Efficiency:The S11 series boasts a remarkable 30% decrease in no-load losses compared to the S9 series, aligning with international mandates for energy preservation and pollution mitigation. This significant improvement translates to substantial energy savings and a reduced environmental footprint.

2. Structural Robustness:These transformers are distinguished by their streamlined, logical design, offering exceptional structural strength and reduced mass. The optimized oil circulation system facilitates enhanced thermal dissipation, minimizing energy dissipation and ensuring operational efficiency.

3. Regulatory Compliance:Meticulously fabricated in accordance with the International Electrotechnical Commission (IEC) 60076 and the Chinese National Standard GB1094, the S11 series transformers adhere to the stringent criteria set by the industry's leading standards, ensuring safety, reliability, and performance.

Applications:

The S11 series transformers are versatile and suitable for a broad spectrum of applications, including:

• Power generation facilities for efficient energy production.
• Electrical transmission and distribution networks for reliable power flow.
• Industrial and commercial complexes requiring high power reliability.
• Urban infrastructure projects, including airports, subways, docks, and residential areas, for sustainable power solutions.

Benefits

Economical Operation

• Cost-Effective Solution: The S11 series offers a cost-effective solution for power distribution, with high efficiency and low maintenance requirements. The reduced energy losses lead to significant cost savings over the transformer's operational life.

Long Service Life

• Designed for Longevity: These transformers are designed to provide a long service life, reducing the need for frequent replacements and minimizing costs. The robust design and high-quality materials ensure that the transformers remain operational for extended periods.

High Reliability

• Stable Power Supply: The S11 series guarantees high operational reliability, ensuring a stable power supply essential for critical applications. This reliability is crucial in environments where power outages can have significant consequences.

Space-Efficient Design

• Compact Footprint: The compact design of the S11 series maximizes space utilization in power distribution facilities, making it ideal for installations with limited space. This design is particularly beneficial in urban and industrial settings where space is at a premium.

10kV Oil Immersed Distribution Transformer energy efficiency grade table
