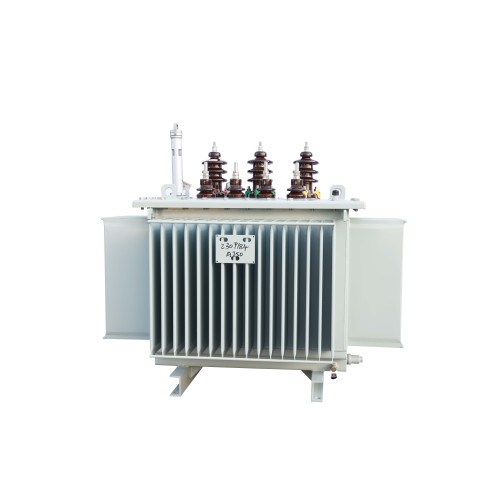

10kV Oil Immersed Power Transformer

Title: 10kV Oil Immersed Distribution Transformer - Reliability and Efficiency in Power Distribution

Overview: The 10kV Oil-Filled Transformer is a robust and efficient solution designed for reliable power distribution in various industrial and commercial applications. Engineered with the latest technology, this transformer offers a combination of high performance, safety, and environmental responsibility, making it an ideal choice for a wide range of power systems.

Key Features:

• Oil Immersed Design: Provides excellent heat dissipation and cooling, ensuring the transformer operates within optimal temperature ranges for maximum efficiency and longevity.

• High-Grade Materials: Constructed with premium quality materials, including cold-rolled grain-oriented silicon steel, for superior magnetic properties and minimal energy loss.

• Advanced Winding Technology: Utilizes double-glass enameled copper wire for high-voltage windings and copper foil with epoxy resin for low-voltage windings, ensuring strength and durability.

• Safety and Compliance: Meets international safety standards and is compliant with IEC 60076 and relevant national standards, ensuring a reliable and safe operation.

Technical Specifications:

• Voltage Rating: Designed for 10kV operation, suitable for stepping down high-voltage power to levels suitable for industrial and commercial use.

• Cooling System: Equipped with an advanced oil cooling system that maintains stable temperatures and prevents overheating, even under heavy loads.

• Clamping System: Features a low-magnetic steel clamping system treated for durability, ensuring secure and long-lasting performance.

• Insulation Resistance: Offers high insulation resistance, protecting against electrical stress and contributing to a longer service life.

Applications:

The 10kV Oil Immersed Power Transformer is widely used in:

• Electrical Grids: For efficient power transmission and distribution in utility networks.
• Industrial Facilities: To provide stable power supply for manufacturing and processing plants.
• Commercial Buildings: For reliable power in shopping centers, offices, and other commercial spaces.
• Infrastructure Projects: Supporting power needs in transportation hubs, public facilities, and more.

Advantages:

1. Efficiency: With advanced design and materials, these transformers offer high efficiency and low energy loss, reducing operational costs.

2. Reliability: Built to withstand heavy loads and harsh conditions, ensuring consistent performance and minimal downtime.

3. Safety: Designed with multiple safety features, including oil immersion for effective cooling and protection against electrical faults.

4. Environmental Sustainability: Minimizes environmental impact with reduced energy loss and compliance with global environmental standards.

10kV Oil Immersed Distribution transformer energy efficiency grade table
