S13 Series Oil Immersed Transformer: Efficiency Redefined

An Oil-immersed Transformer is an electrical device that uses transformer oil as a cooling and insulating medium. It consists of an iron core, windings and other components, immersed in oil, which dissipates heat through natural or forced circulation of the oil, while the oil also provides electrical insulation. This design helps to improve the heat dissipation efficiency of the transformer, reduce losses, ensure stable electrical performance, and monitor the health of the transformer through oil sample analysis.

Oil-immersed transformers are suitable for 50 and 60 Hz AC power. Their main function is to adjust the network voltage of 10kV, 6kV or 3.5kv to 400V or 230V bus voltage suitable for industrial and mining enterprises and civil buildings. Oil-immersed transformers can be used both indoors and outdoors. People may see 315kVA transformers on electric poles every day. Oil-immersed transformers have high temperature requirements. The ambient temperature must be between -25℃ and 40℃, with a maximum temperature of 30℃ per day and 20℃ per year. The humidity of the environment where the transformer is located must not be higher than 90%, and the altitude must be less than 1km.

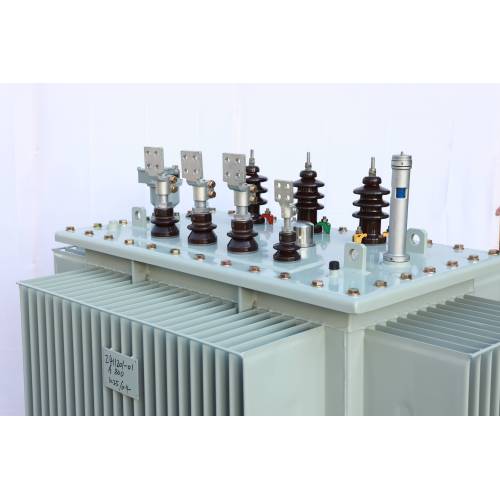

The S13 series Oil-Filled Transformer epitomize innovation in power distribution, designed for maximum efficiency and minimal environmental impact. Crafted with the highest-grade cold-rolled grain-oriented silicon steel, these Power Transformer deliver superior performance and reliability.

Core Features:

1. Material Excellence: Utilizes the finest silicon steel for optimal magnetic properties.
2. Energy Savings: Delivers a 25% reduction in no-load losses and an 80% reduction in no-load current.
3. Quiet Operation: Operates 5-10dB quieter than previous models.
4. Outdoor Ready: Robust design for outdoor use with high pollution resistance.
5. Safety First: Includes a pressure relief valve for enhanced safety.

Applications:

• Urban and rural power distribution networks
• Industrial and commercial facilities requiring high power reliability
• Substations for efficient power management
• Renewable energy projects for integration with the grid

Technical Specifications:

• Enhanced Core Technology:The S13 series Oil Immersed Distribution Transformer utilizes premium cold-rolled grain-oriented silicon steel sheets, which are known for their exceptional magnetic properties. This material, combined with our advanced core configuration, results in a transformer that offers unparalleled energy efficiency and low energy losses.
• Energy Efficiency:Demonstrating a significant 30% decrease in no-load losses compared to the S9 series, the S13 series transformers are at the forefront of international energy preservation and pollution mitigation initiatives. This improvement not only aligns with global standards but also contributes to cost savings and environmental sustainability.
• Structural Robustness and Lightweight Design:The S13 series is characterized by a streamlined, logical design that provides exceptional structural strength and reduced mass. The optimized oil circulation system facilitates enhanced thermal dissipation, reducing energy dissipation and ensuring the transformers operate at peak efficiency with minimal heat generation.

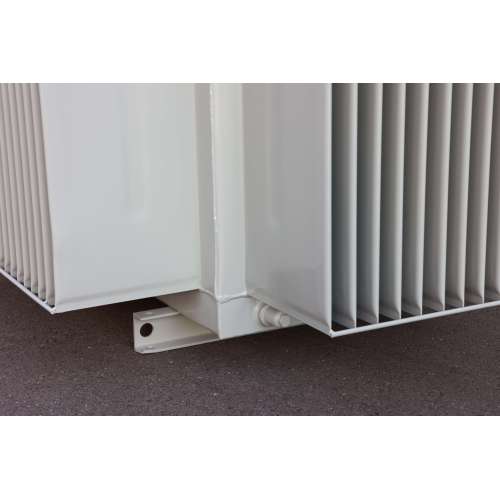

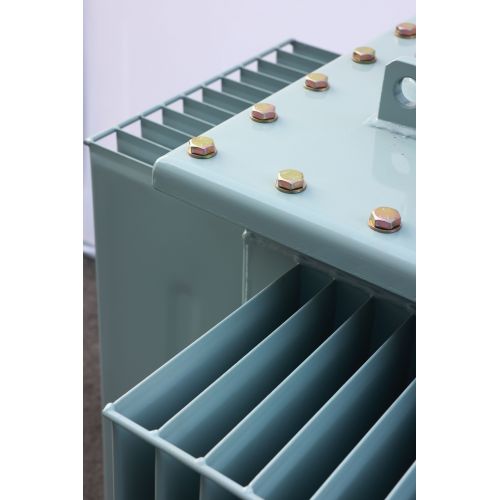

• Advanced Cooling System:These transformers are equipped with an advanced cooling system that leverages the principles of convection and conduction to dissipate heat effectively. This system ensures that the transformers maintain a stable temperature under varying loads, thereby extending their service life and ensuring consistent performance.
• Low Noise Operation:The S13 series transformers are engineered to operate with minimal noise, making them suitable for installation in both industrial and residential settings without causing disturbance.
• High Short-Circuit Strength:Designed to withstand high short-circuit forces, the S13 series transformers provide robust protection for the electrical system, ensuring safety and reliability in all operating conditions.
• Ecological Responsibility:The manufacturing process of the S13 series is aligned with ecological responsibility, using materials and processes that minimize environmental impact and support sustainable development goals.
• Regulatory Compliance:The S13 series transformers are fabricated in strict accordance with the International Electrotechnical Commission (IEC) 60076 and the Chinese National Standard GB1094. This ensures that each transformer meets the stringent criteria set by the industry's leading standards for safety, reliability, and performance.
• Durable and Reliable Operation:The S13 series transformers are designed for long-term, reliable operation with minimal maintenance, offering a cost-effective solution for power distribution that lasts.

10kV Oil Immersed Distribution transformer energy efficiency grade table
