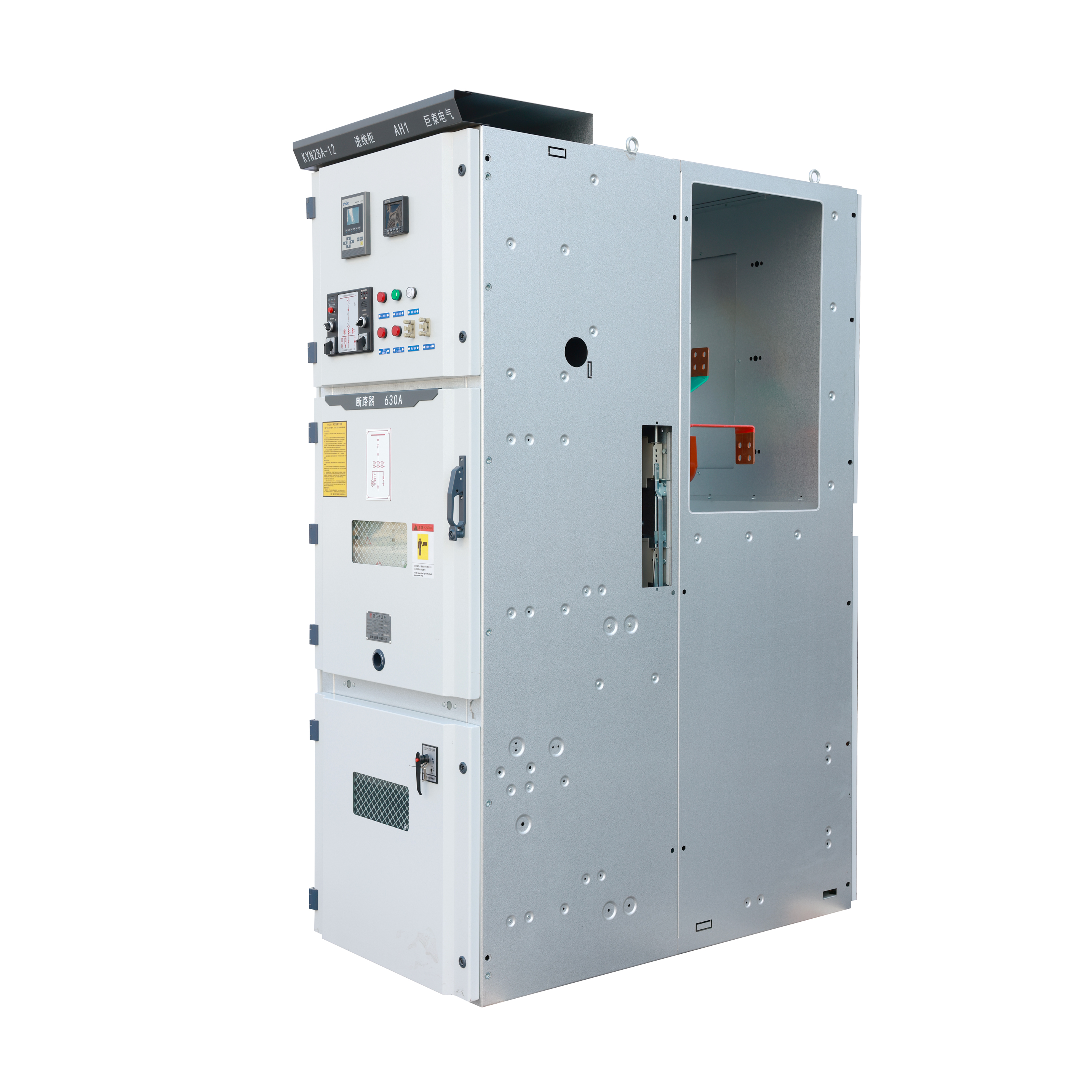

KYN28-12 Type Modular Switchgear

KYN28 Series Metal-Clad, Draw-Out Switchgear: A Flagship Solution for Power Distribution

Essentials: The KYN28 Series Metal-Clad, Drawer Type Switch Cabinet is a top-tier solution crafted for indoor three-phase AC power distribution systems. It operates at 50Hz with a rated voltage range of 3.6 to 12kV, embodying high reliability and safety standards, and is well-suited for diverse electrical applications across industrial, commercial, and utility sectors.

Distinctive Attributes:

1. Enduring Metal-Clad Framework:

   • Constructed with a resilient metal-clad framework for enduring protection against environmental stressors and ensuring long-term durability.
   • Manufactured with meticulous precision to ensure secure and smooth integration with existing electrical infrastructure.

2. Adaptable Switching Capabilities:

   • Designed to accommodate a range of vacuum circuit breakers, including the ABB VD4 and the domestically produced ZN73 (VH1), offering adaptability to various system configurations.

3. Safety-Centric Engineering:

   • Emphasizes safety with maintained air insulation and creepage distances, adhering to electrical safety standards to mitigate the risk of electrical incidents.

4. All-Encompassing Protection:

   • Compatible with single busbar, single busbar sectioning, and double busbar systems, providing robust protection, monitoring, and control for electrical power.

5. Rugged Environmental Resistance:

   • Engineered to perform reliably across a wide range of temperatures and humidity levels, and resistant to harsh environmental conditions, including seismic activities.

6. Sturdy Structural Composition:

   • Features a modular assembly structure with high-precision components for straightforward maintenance.
   • Doors are made from high-quality cold-rolled steel with a durable plastic coating for extended service life.

7. Streamlined Operational Interface:

   • The central extraction mechanism simplifies operation, with a trolley system that includes a screw rod transmission for reliable movement and reduced operational errors.

8. Advanced Safety Mechanisms:

   • Incorporates interlocks and safety features to prevent unauthorized operations, such as closing the grounding switch with power present or moving the trolley under load.

Conclusion: The KYN28 Series Metal-Clad, Drawer Switchgear stands as a beacon of modern electrical engineering, offering a reliable, safe, and efficient solution for power distribution and control across a spectrum of network configurations.
