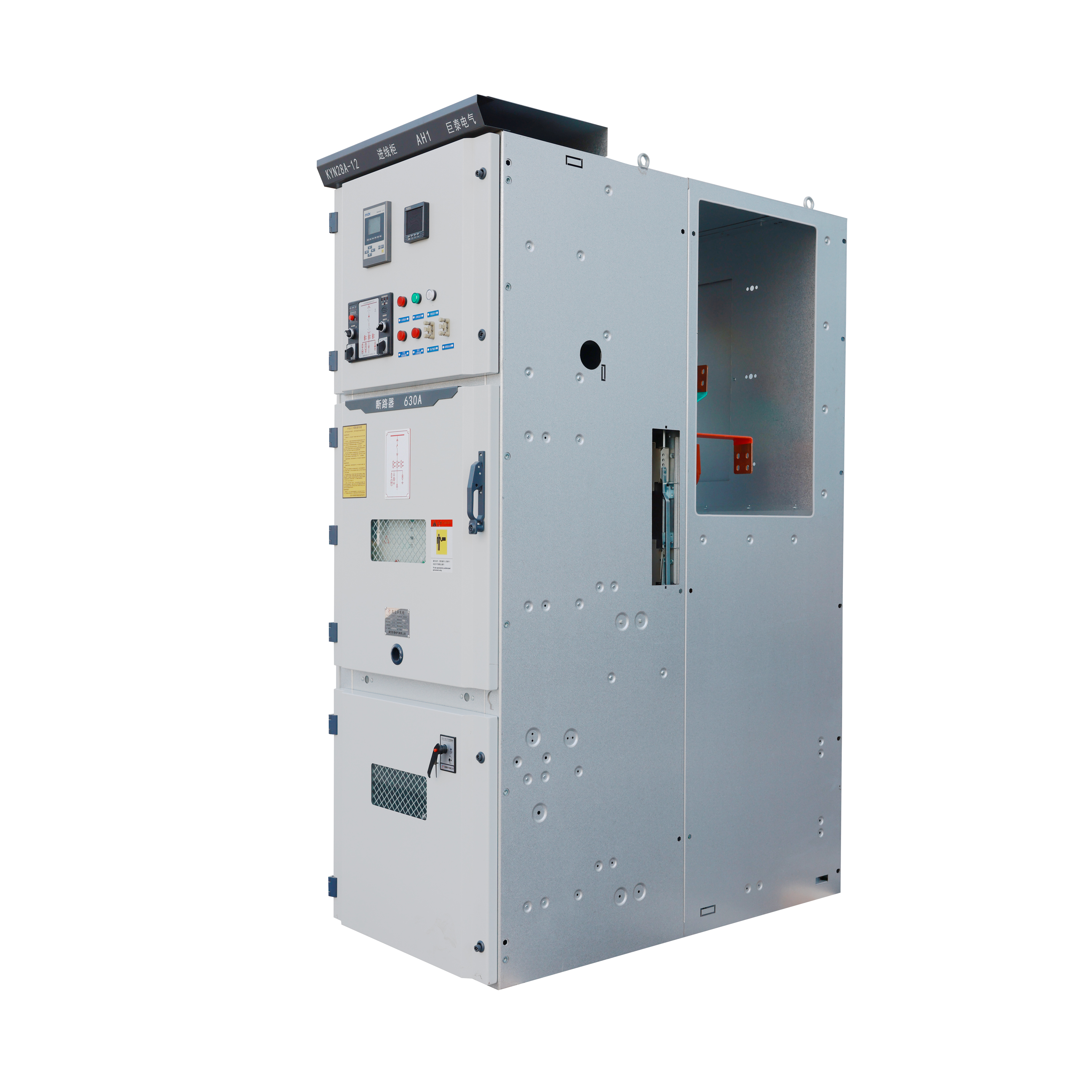

KYN28-12 Configuration Modular Switchgear

KYN28 Series Metal-Clad, Draw-Out Switchgear: Excellence in Electrical Distribution

Overview: The KYN28 Series Metal-Clad, Drawer Type Switch Cabinet is a superior solution for indoor three-phase AC power distribution systems, operating at 50Hz with a rated voltage of 3.6 to 12kV. This series is meticulously crafted for reliability and safety, ideal for diverse electrical applications in industrial, commercial, and utility environments.

Key Highlights:

1. Resilient Metal-Clad Architecture:

   • The KYN28 Series showcases a sturdy metal-clad architecture, promising enduring strength and safeguarding against environmental influences.
   • Meticulously engineered for a secure and flawless integration with existing electrical frameworks.

2. Adaptable Switching Technologies:

   • Compatible with an array of vacuum circuit breakers, including the ABB VD4 and the nationally esteemed ZN73 (VH1), offering versatility to cater to various system requirements.

3. Safety-Driven Approach:

   • Emphasizes safety with adherence to electrical safety standards, ensuring sufficient air insulation and creepage distances to mitigate the risk of electrical accidents.

4. Broad Protection Spectrum:

   • Designed for compatibility with single busbar, single busbar sectioning, and double busbar systems, providing a wide range of protection, monitoring, and control capabilities for electrical power.

5. Rugged Environmental Endurance:

   • Capable of withstanding a wide range of temperatures and humidity levels, and resilient to harsh environmental conditions, including seismic activities, making it suitable for diverse geographical locations.

6. Durable Structural Framework:

   • Features a modular assembly structure with high-precision components for straightforward maintenance.
   • Doors are constructed from high-quality cold-rolled steel with a durable plastic coating for extended service life.

7. Effortless Operational Flow:

   • The central extraction mechanism simplifies the operation process.
   • The trolley, equipped with a screw rod transmission, ensures smooth and reliable movement, minimizing operational errors.

8. Innovative Safety Mechanisms:

   • Incorporates interlocks and safety features to prevent unauthorized operations, such as closing the grounding switch with electricity or moving the trolley under load, enhancing safety measures.
