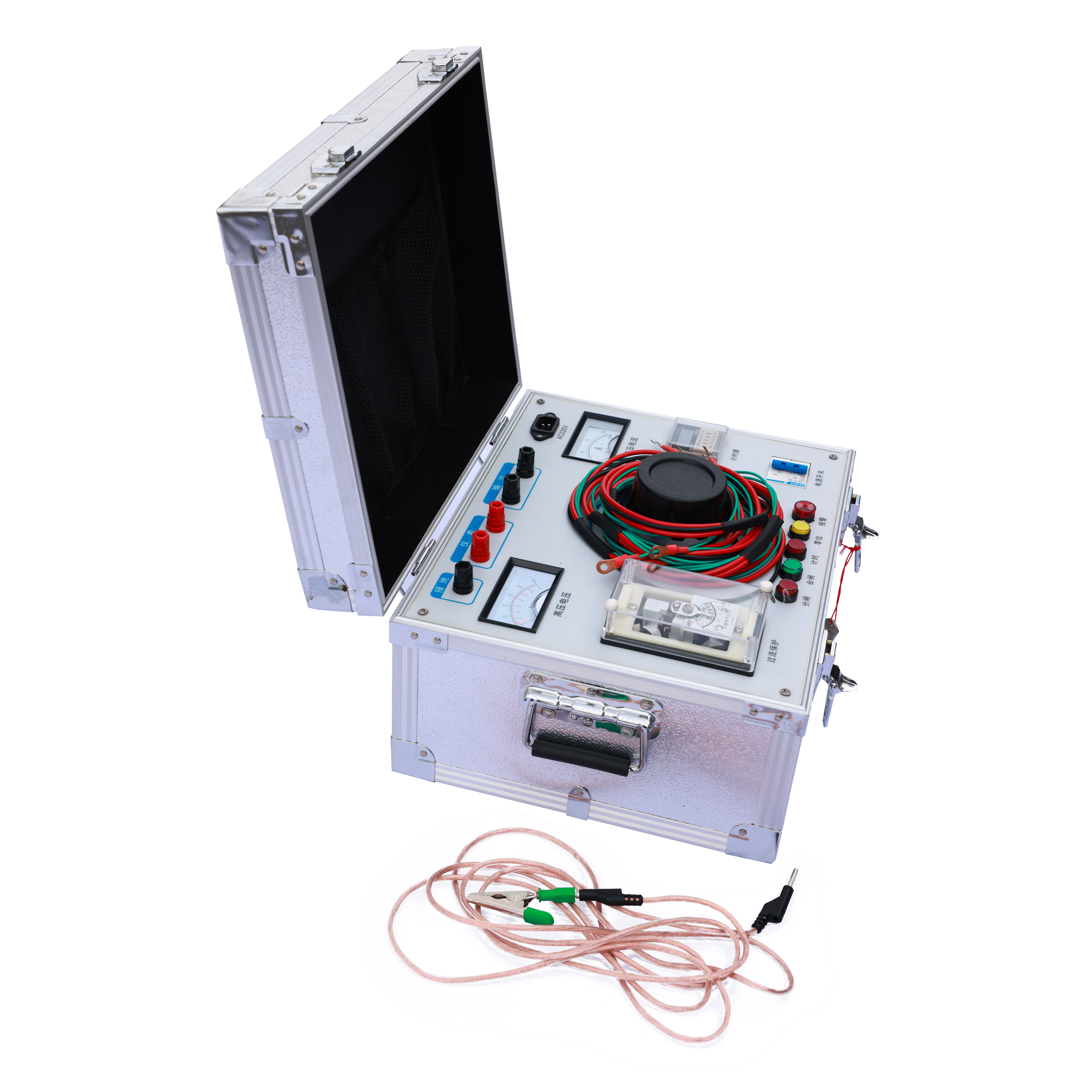

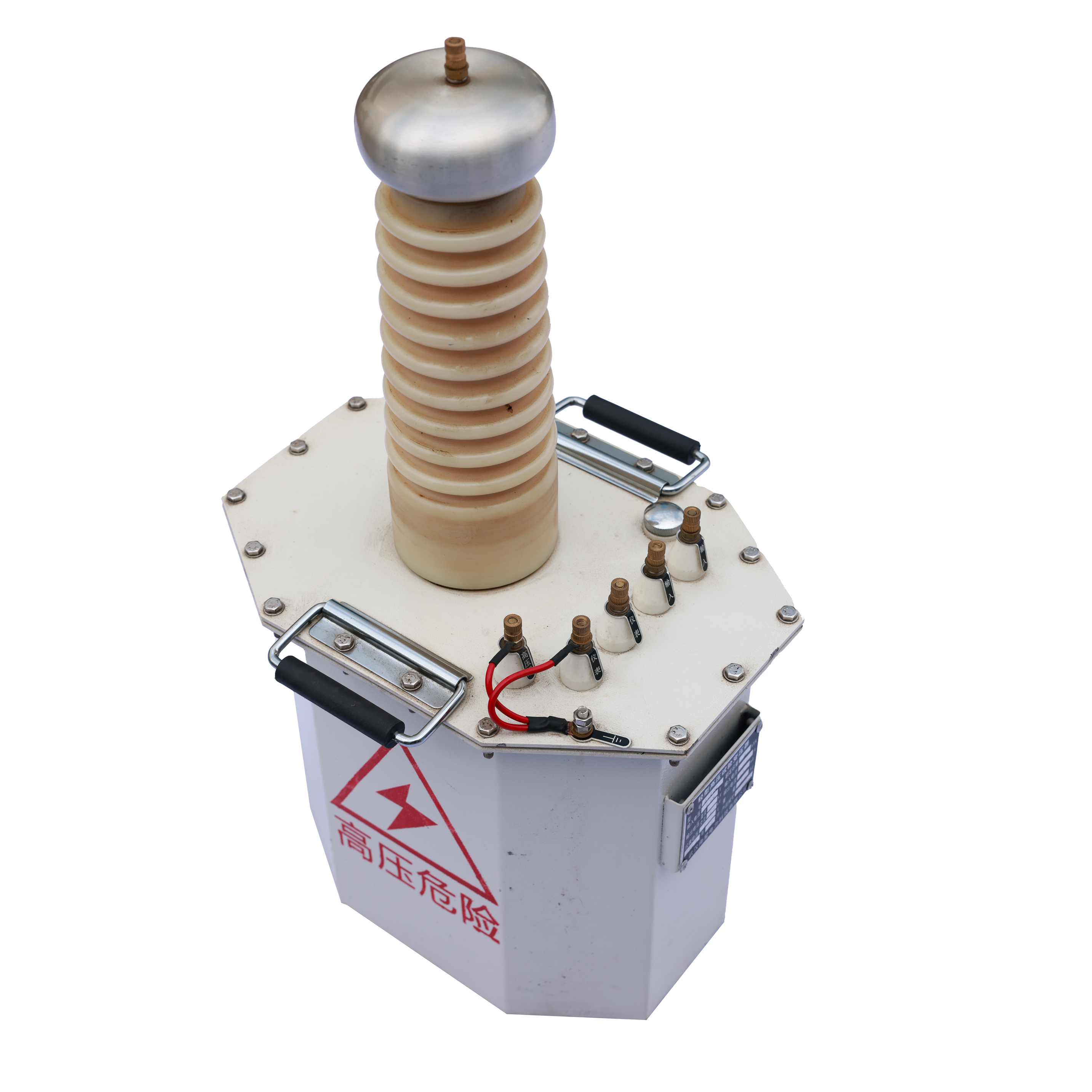

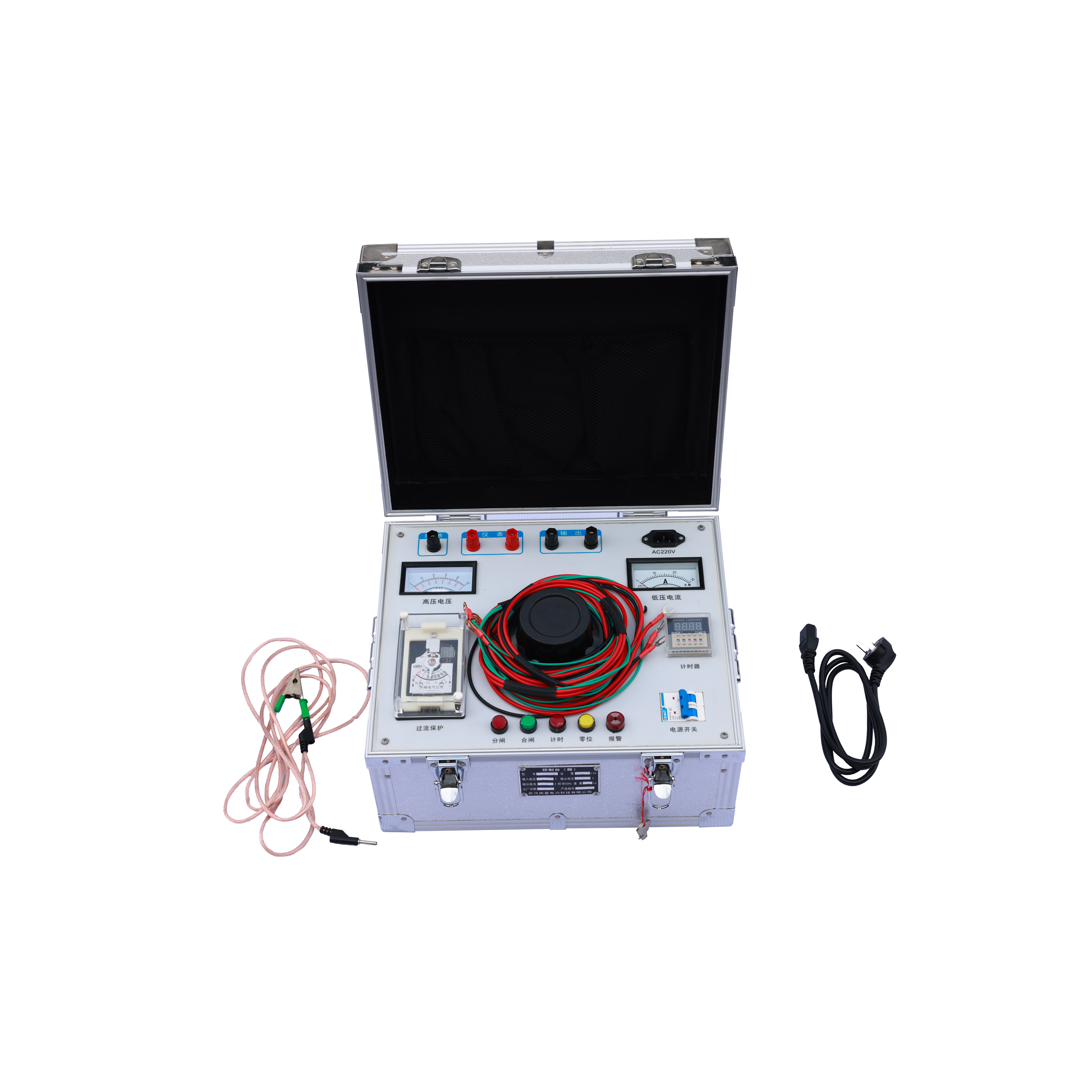

Transformer Testing Equipment

1. Winding Resistance Testers: These testers measure the DC resistance of transformer windings to detect issues like shorted turns, poor connections, or other faults. Common models include micro-ohmmeters and winding resistance meters .

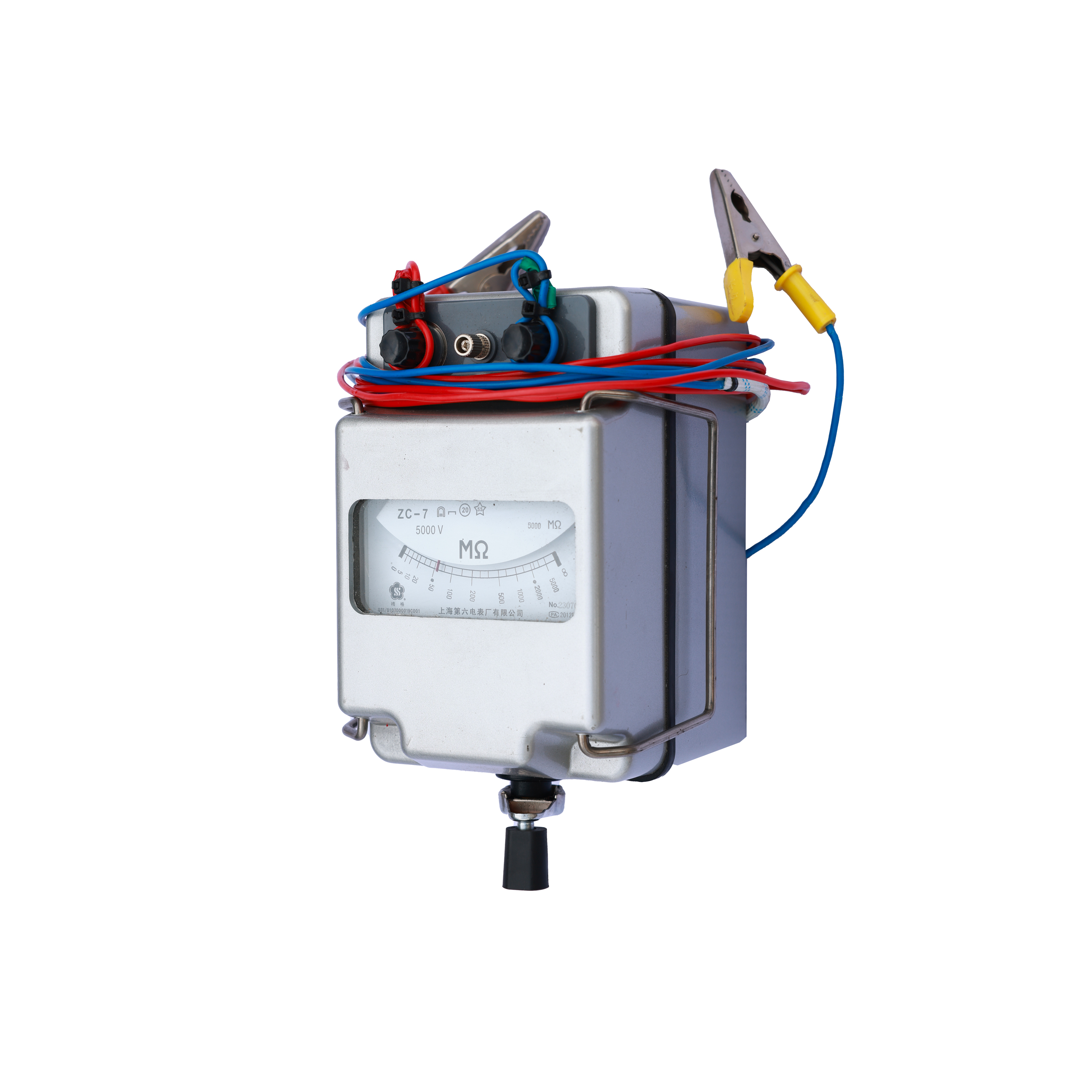

2. Insulation Resistance Testers (Megohmmeters): These assess the insulation quality of transformer windings and the dielectric strength of insulating materials. They apply a high DC voltage and measure the resistance to ensure insulation integrity .

3. Transformer Turns Ratio (TTR) Testers: These measure the turns ratio between primary and secondary windings to verify the transformer's performance and detect winding damage or core issues. TTR testing is crucial for identifying problems such as shorted turns or incorrect winding connections .

4. Power Factor Testers: These evaluate the insulation condition by measuring the power factor or dissipation factor of the transformer windings and insulation system. This test helps in detecting insulation deterioration, moisture ingress, and other aging-related issues .

5. Sweep Frequency Response Analyzers (SFRA): These analyze the transformer's frequency response to detect mechanical issues like winding deformation, core movement, or structural damage. SFRA tests are typically performed after transportation, seismic events, or suspected mechanical damage .

6. Dielectric Breakdown Voltage Testers: These test the dielectric strength of transformer oil or other insulating fluids by applying a high voltage until breakdown occurs. This test helps ensure the insulating fluid's ability to withstand electrical stress .

7. Partial Discharge (PD) Testers: These detect and measure partial discharge activity within the transformer, indicating potential insulation defects, voids, or other issues that could lead to failure. PD testing is crucial for predictive maintenance and early fault detection .

8. Excitation Current Testers: These measure the current required to energize the transformer's magnetic core, helping identify issues like core faults or winding problems. This test can detect problems such as inter-turn shorts or incorrect tap settings .

9. Frequency Response Analyzers (FRA): Similar to SFRA, these devices evaluate the frequency response to detect winding or core anomalies due to mechanical deformation or displacement .

10. Infrared Thermography: This uses infrared cameras to detect hot spots and temperature anomalies on the transformer surface, indicating issues like poor connections, overloaded components, or cooling system failures .

Transformer testing equipment is classified into various types based on their functionality and the specific tests they perform. These instruments play a vital role in the comprehensive assessment and maintenance of transformer health, ensuring operational efficiency and reliability.
