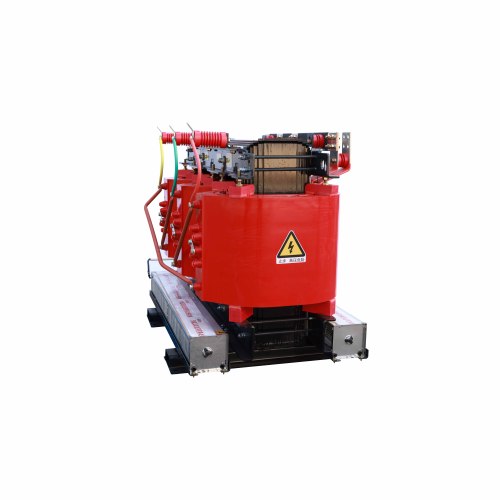

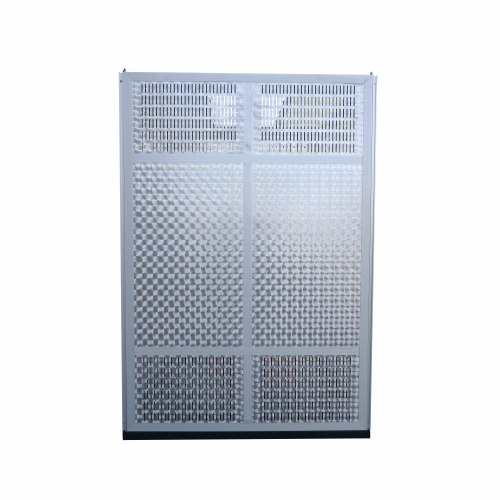

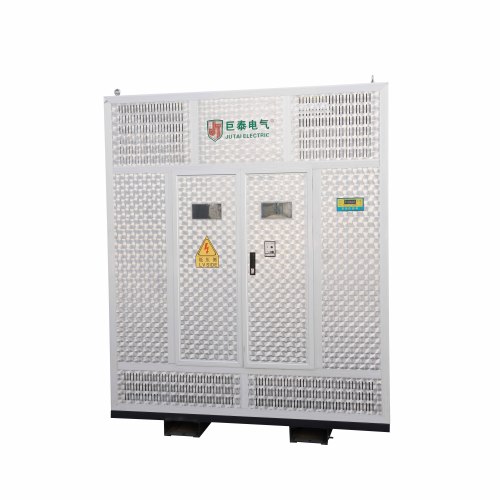

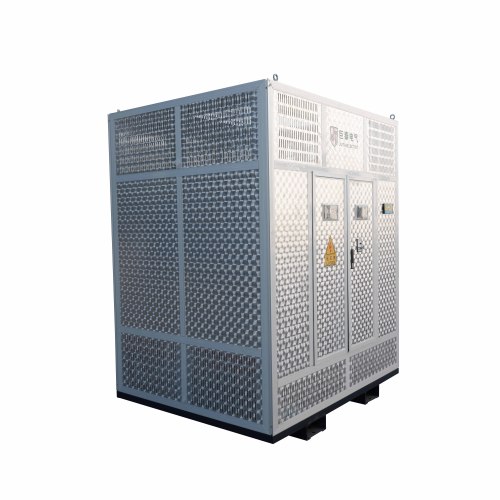

The 10kV three-phase resin cast Dry-type power transformer is a cutting-edge Dry Type Transformer developed with advanced technology imported from abroad. The coils are meticulously encapsulated in epoxy resin, making it highly resistant to ignition, fireproof, explosion-proof, maintenance-free, non-polluting, and compact. This enables direct installation at the load center, maximizing efficiency and convenience. The scientific and reasonable design, coupled with a precise casting process, results in lower partial discharge, reduced noise, and enhanced heat dissipation capabilities. The transformer is equipped with an intelligent temperature control device, featuring fault alarm, over-temperature alarm, over-temperature trip, and black box functions, ensuring optimal performance and safety. It can be seamlessly connected to a computer via an RS485 serial interface for centralized control, streamlining operations and monitoring.

Technical Features

• Core Construction: The core is crafted from high-quality cold-rolled grain-oriented silicon steel sheets, utilizing a 45° full oblique joint and a five-step interleaved iron stacking method. The core column and iron yoke boast multi-stage circular cross-section shapes, which significantly reduce no-load losses and noise, enhancing the transformer's efficiency and quietness.
• Winding Specifications:
  • High-voltage Conductors: Depending on the transformer's capacity, the high-voltage conductors are made of double-glass enameled copper wire, with H-class glass fiber cloth and glass mat insulation between layers. This combination provides superior electrical performance and mechanical strength.
  • Low-voltage Winding: The low voltage utilizes copper foil winding, with epoxy resin impregnated cloth as interlayer insulation. This design offers high mechanical strength and excellent surge short-circuit resistance, ensuring reliable power delivery.
• Clamping System: The clamps are constructed from low-magnetic steel pull plates and clamp matching structures, treated with sandblasting and spray coating. This results in a beautiful overall structure with high mechanical strength, ensuring the transformer's stability and durability.
• Cooling System: Each phase is equipped with an independent axial flow fan and a split-type temperature controller. This effective cooling arrangement reduces temperature rise, increases the transformer's output capacity, and guarantees its safe operation.

Energy efficiency rating table of 10kV dry-type three-phase double-winding voltage regulating Distribution transformer:
