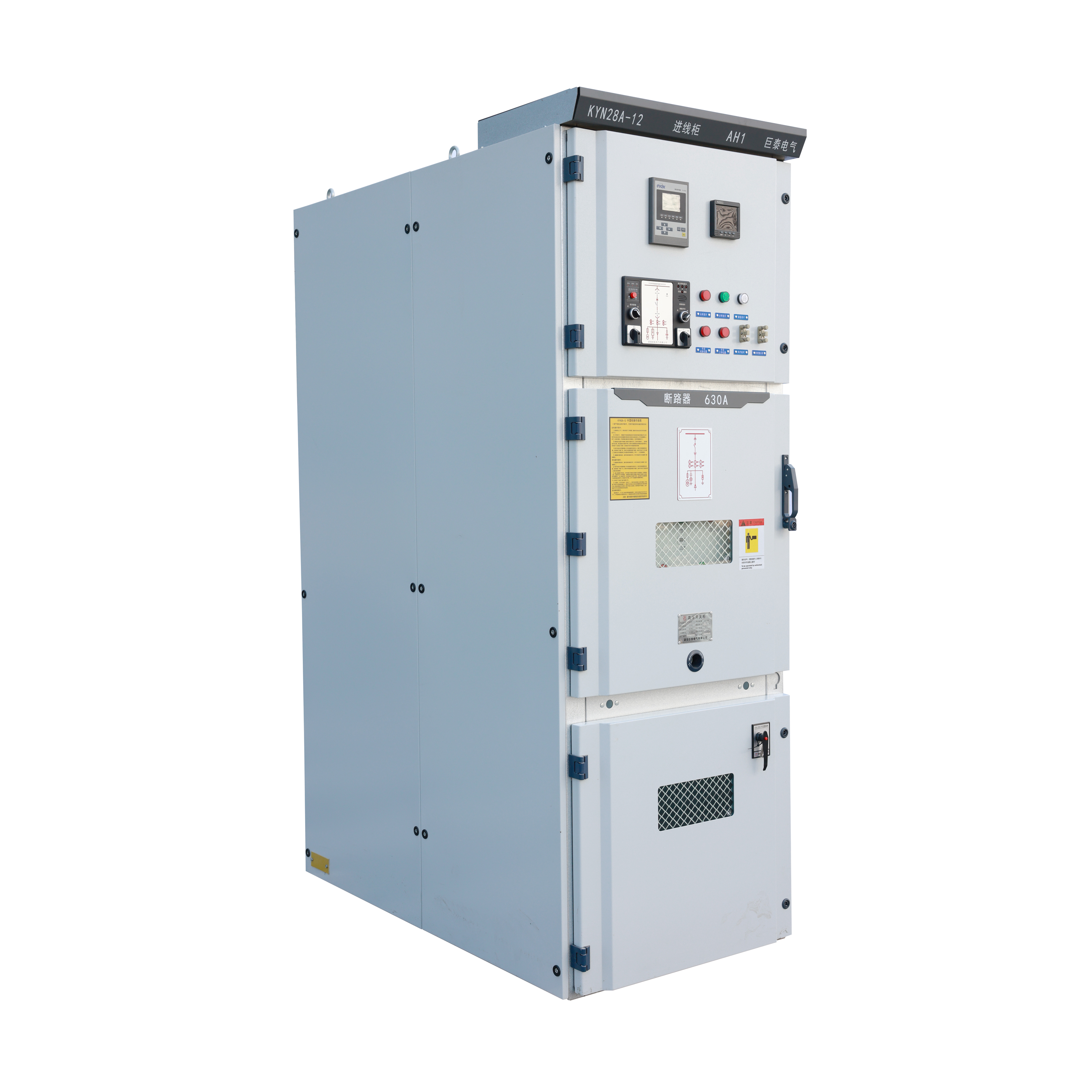

Efficient KYN28-12 Pull-out Switchgear

KYN28 Series Drawer Type Switch Cabinet Product Description

Overview: The KYN28 series Drawer Switchgear is a high-standard electrical equipment designed for medium voltage applications. It is engineered to provide a safe, reliable, and efficient solution for power distribution in industrial, commercial, and utility settings. This Drawer type switch cabinet is renowned for its advanced design, robust construction, and compliance with the latest industry standards.

Core Attributes:

1. Withdrawable Design:

   • Features a withdrawable circuit breaker design for easy maintenance and reduced downtime.
   • Enhances safety by isolating live parts during maintenance.

2. Metal-Clad Construction:

   • Encased in a metal housing for protection against environmental factors and long-term durability.
   • Contributes to fire resistance and safety.

3. High-Quality Components:

   • Incorporates vacuum circuit breakers known for excellent interrupting capacity and low maintenance requirements.

4. Standards Compliance:

   • Adheres to international standards such as IEC 62271-200, covering high-voltage switchgear and controlgear.
   • Designed to meet specific regional and application requirements.

5. Rated Specifications:

   • Available with a rated voltage of 12kV and suitable for systems with a frequency of 50Hz.
   • Versatile for various current ratings and load requirements.

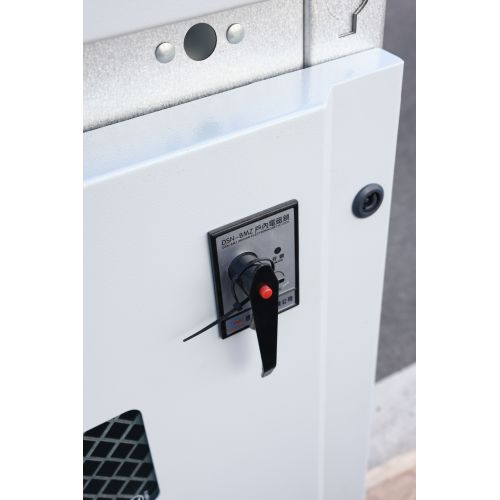

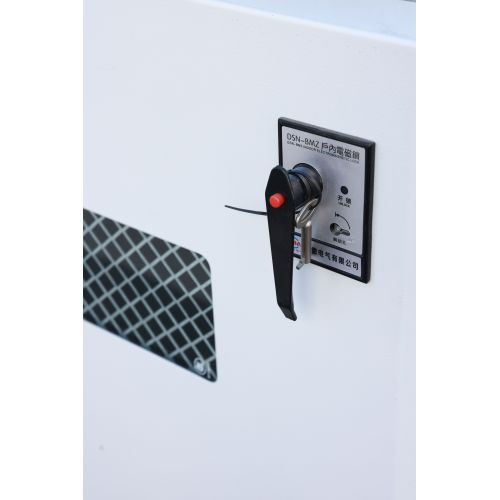

6. Safety Interlocking:

   • Equipped with an interlocking system to prevent unauthorized access to live parts and misoperation.
   • Ensures the circuit breaker is disconnected before the earthing switch can be closed.

7. Modular Configuration:

   • Offers a modular design for customization to fit specific project needs.
   • Allows integration of various components such as protection relays, meters, and control devices.

8. Reliability and Durability:

   • Built to withstand continuous operation in demanding environments.
   • Robust construction ensures a long service life with minimal maintenance.

9. Environmental Protection:

   • Designed with environmental considerations, using recyclable materials and minimizing environmental impact.

10. Intuitive Operation:

    • Features clear indicators for circuit breaker position and straightforward operation procedures.

Application Scope: The KYN28 series metal-clad withdrawable Drawer type switch cabinet is suitable for a wide range of applications, including but not limited to:

• Power generation and distribution centers
• Industrial plants and manufacturing facilities
• Commercial buildings and complexes
• Utility substations

Conclusion: The KYN28 series Inflatable Ring Main Unit represents the pinnacle of medium voltage switchgear technology, combining safety, reliability, and efficiency in a single package. It is the ideal choice for those seeking a high-performance switchgear solution that meets the demands of modern power distribution systems.
