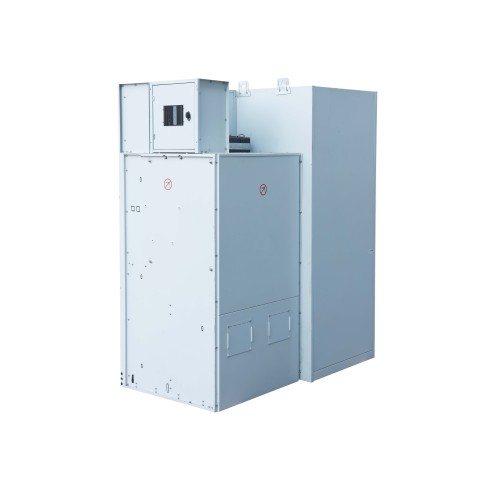

SF6 Environmentally Sealed Ring Main Unit

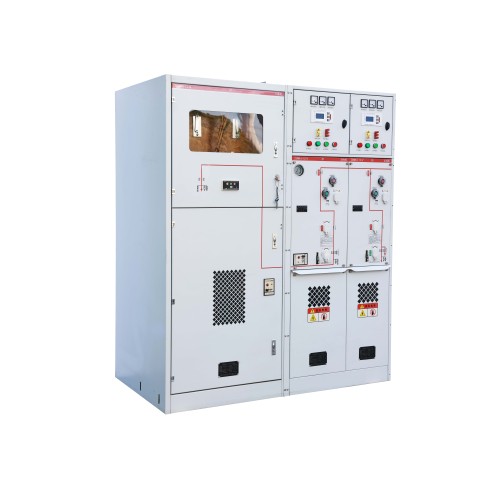

Product Description: 10kV SF6 Gas-Insulated Ring Main Unit - The Future of High-Voltage Distribution

Introducing the 10kV SF6 Gas-Insulated Ring Main Unit Switchgear, a state-of-the-art solution designed to enhance the safety, reliability, and efficiency of high-voltage electrical distribution systems. This innovative RMU is engineered to meet the demands of modern power networks, providing exceptional performance in a compact and robust package.

Key Features:

• SF6 Gas Insulation Technology: The RMU utilizes SF6 gas insulation, which offers superior dielectric strength and thermal stability, ensuring safe operation in various environmental conditions while minimizing the risk of electrical faults.
• Compact and Lightweight Design: The space-saving design of the RMU is ideal for urban installations and locations with limited space, allowing for easy integration into existing infrastructure without compromising performance.
• User-Friendly Operation: Designed with an intuitive control interface, the RMU simplifies high-voltage operations, making it accessible for operators with varying levels of expertise and reducing the likelihood of operational errors.
• Maintenance-Free Solution: The sealed SF6 gas compartment significantly reduces the need for routine maintenance, leading to lower operational costs and enhanced reliability over the unit's lifespan.

Technical Specifications:

• The RMU Switchgear Cabinet is specifically designed for secondary distribution systems up to 12kV, making it suitable for high-load and high-density applications across various sectors, including commercial, industrial, and rural areas.
• Its modular architecture allows for flexible configurations, incorporating load switches, combination units with fuses, and circuit breakers tailored to specific network requirements.
• Each unit features an independent SF6 gas compartment, constructed from 3mm thick imported stainless steel and precision laser-welded to ensure maximum strength and gas-tightness.
• The RMU is engineered to operate safely under a wide range of environmental conditions, thanks to the protective SF6 gas insulation that shields against external factors.

Manufacturing Excellence:

• AMADA Laser Cutting Technology: This advanced cutting technology ensures that every component is manufactured with high precision, contributing to the overall quality and reliability of the RMU.
• OTC Welding Robotics: The use of robotic welding guarantees the accuracy and airtightness of the SF6 gas compartments, which is crucial for maintaining the integrity of the insulation.
• LEYBOLD Helium Mass Spectrometer: This state-of-the-art leak detection technology ensures that the SF6 gas compartment meets stringent national standards for leak rates, enhancing safety and operational reliability.
• Automated Vacuum and Gas Filling Systems: These systems ensure that the gas compartments are properly filled and maintained at high purity levels (99.9% SF6), essential for optimal insulation and arc-extinguishing performance.

Versatile Applications:

• The RMU is widely used in power distribution systems for power plants and substations, providing a reliable solution for managing primary power distribution.
• It is ideal for energy-intensive industries such as coal, oil, and chemical sectors, where dependable power distribution is critical for operations.
• In transportation facilities like airports, railway stations, and ports, the RMU ensures a continuous and safe power supply, supporting essential services.
• High-rise buildings, sports venues, and large-scale construction projects benefit from the RMU's compact design and high performance, ensuring efficient power distribution.
• Mining operations and extensive manufacturing facilities also rely on the RMU for their demanding power distribution needs.

The 10kV SF6 Gas-Insulated Ring Main Unit is a hallmark of modern electrical distribution technology, offering a perfect blend of safety, efficiency, and adaptability. It is the ideal choice for organizations seeking a reliable, innovative, and future-proof solution for their high-voltage power distribution challenges.
