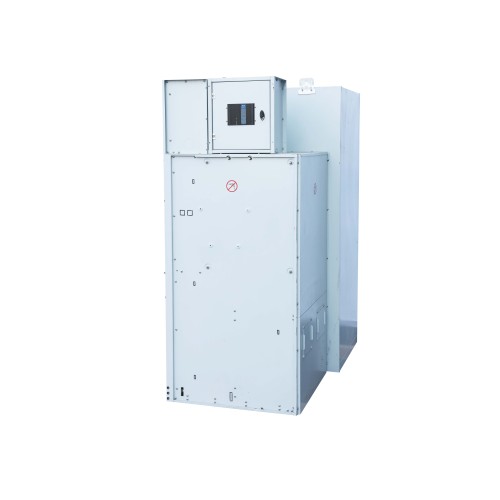

SF6 RMU for Power Distribution

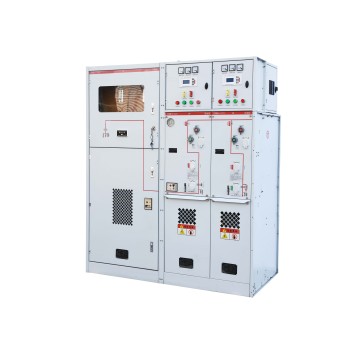

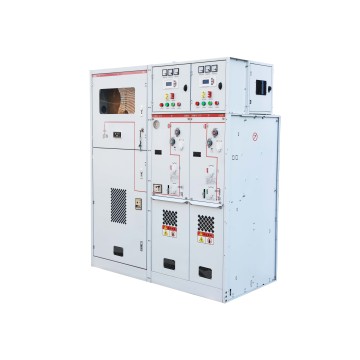

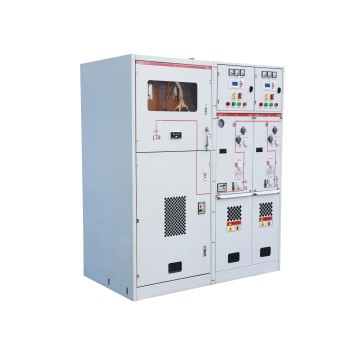

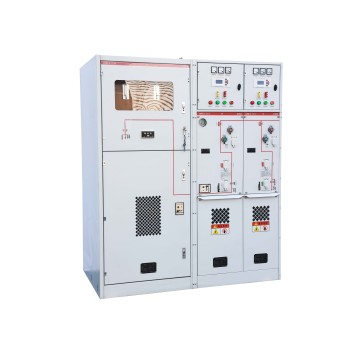

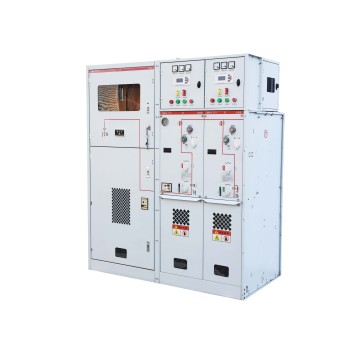

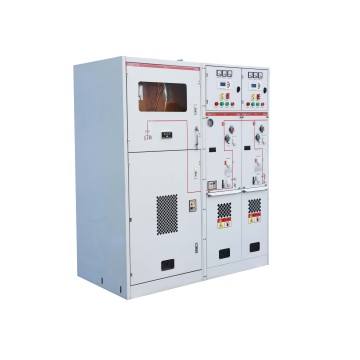

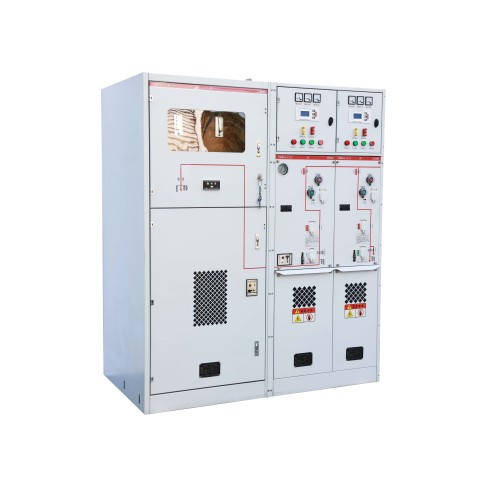

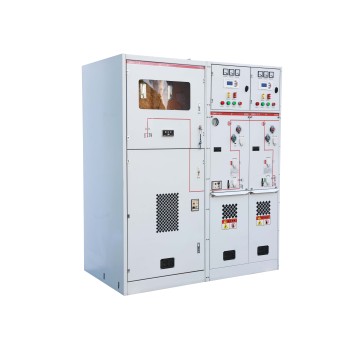

Welcome to the era of modern electrical distribution with the 10kV SF6 Insulated Ring Network Cabinet, a pinnacle of engineering designed to set new standards in safety, efficiency, and adaptability for high-voltage power distribution.

Innovative Attributes:

• SF6 Gas Insulation Technology: At the heart of this Ring Network Cabinet is the SF6 gas insulation technology, which provides an exceptional level of safety and protection for high-voltage components, ensuring reliable operation even in the most demanding conditions.
• Efficient Space Utilization: The compact design of the cabinet is tailored for environments where space is a critical factor, offering a powerful solution without the need for extensive footprints.
• User-Centric Interface: The cabinet's interface is designed with user-friendliness in mind, simplifying high-voltage operations and making it accessible to a broader range of operators.
• Minimized Maintenance: The sealed SF6 gas compartment significantly reduces the need for regular maintenance, leading to lower operational costs and enhanced reliability.

Technical Specifications:

• The Ring Network Cabinet is designed for secondary distribution systems up to 12kV, making it ideal for high-load and high-density power distribution in a variety of settings, from commercial to rural.
• Its modular construction allows for a range of main switches, including load switches, combination units with fuses, and circuit breakers, to be customized to fit specific network needs.
• Each cabinet is equipped with an independent SF6 gas compartment, meticulously crafted from 3mm thick imported stainless steel and laser-welded for maximum strength and gas-tightness.
• The Inflatable Ring Main Unit is designed to operate safely under a wide range of environmental conditions, thanks to the protective barrier of SF6 gas insulation.

Manufacturing Excellence:

• AMADA Laser Cutting Machine: This high-precision equipment ensures that every component is manufactured to exacting standards, contributing to the overall precision and quality of the Ring Network Cabinet.
• OTC Welding Robot: The precision welding robot guarantees the accuracy and airtightness of the SF6 gas compartments, which is vital for maintaining the integrity of the gas.
• LEYBOLD Helium Mass Spectrometer Leak Detector: This advanced technology ensures that the SF6 gas compartment's leak rate is below national standards, enhancing safety and reliability.
• Computer-Controlled Vacuum and Gas Filling System: This system ensures that the gas compartments remain undistorted and that the SF6 gas maintains a high purity level of 99.9%, essential for the cabinet's insulation and arc-quenching capabilities.

Versatile Applications:

• The Ring Network Switchgear Cabinet is extensively used in power distribution systems of power plants and substations, providing a robust solution for primary power management.
• It is also ideal for energy-intensive industries such as coal, oil, and chemical, where reliable power distribution is critical.
• In transportation hubs like airports, railway stations, and port facilities, the cabinet ensures continuous and safe power supply.
• High-rise buildings, sports complexes, and other large construction projects benefit from the cabinet's compact design and high performance.
• Mining operations and large-scale manufacturing facilities also rely on the cabinet for their demanding power distribution needs.

The 10kV SF6 Insulated Ring Network Cabinet is a testament to the evolution of electrical distribution, offering a blend of safety, efficiency, and adaptability that is unmatched in the industry. It is the choice for forward-thinking organizations seeking a reliable and future-proof solution for their power distribution challenges.
