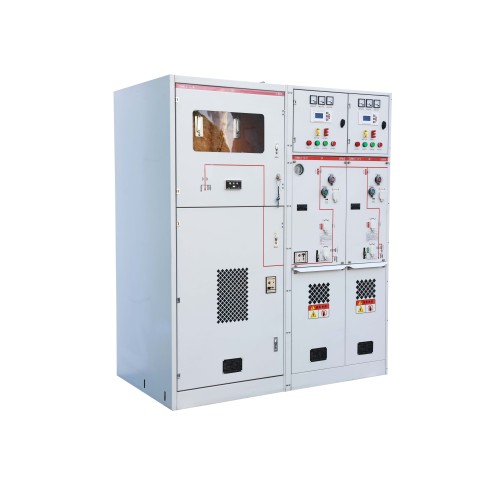

SF6-Infused Ring Main Unit

Product Description: 10kV SF6 Gas-Insulated Switchgear for Ring Network Applications

Embrace the future of electrical distribution with the 10kV SF6 Ring Main Unit Switchgear, designed for the ring network configuration. This innovative switchgear is engineered to meet the demands of modern power distribution with a focus on safety, efficiency, and environmental resilience.

Core Attributes:

• Environmental Resilience: The switchgear's SF6 gas insulation provides unparalleled protection against harsh conditions such as high humidity and dust, ensuring reliable operation in challenging environments.
• Compact and Space-Saving: The compact design of the switchgear conserves space, making it an excellent choice for installations with limited footprints.
• User-Friendly Operation: Simplified operational processes reduce the complexity of high-voltage switchgear operations, enhancing user experience and safety.
• Maintenance-Free: The sealed SF6 gas compartment significantly reduces maintenance requirements, leading to lower lifecycle costs and increased reliability.

Technical Specifications:

• The Inflatable Ring Main Unit is tailored for secondary distribution systems up to 12kV, offering exceptional performance in high-load and high-density areas.
• It features a modular design with a variety of main switches, including load switches, load switches with integrated fuses, and circuit breakers, allowing for customized configurations to suit specific network needs.
• Each switchgear unit is equipped with an independent SF6 gas compartment, meticulously crafted from 3mm thick imported stainless steel and laser-welded for optimal strength and gas-tightness.
• The switchgear is designed to operate safely under a wide range of environmental conditions, thanks to the protective SF6 gas insulation.

State-of-the-Art Manufacturing:

• AMADA Laser Cutting Machine: This precision tool ensures that every component is cut to exact specifications, contributing to the overall quality and precision of the switchgear.
• OTC Welding Robot: The use of advanced welding robots guarantees the precision and airtightness of the SF6 gas compartments, essential for maintaining gas integrity.
• LEYBOLD Helium Mass Spectrometer Leak Detector: This sophisticated instrument ensures that the SF6 gas compartment's leak rate is below national standards, enhancing safety and reliability.
• Computer-Controlled Vacuum and Gas Filling Equipment: This equipment ensures that the gas compartments remain undistorted and that the SF6 gas maintains a high purity level of 99.9%, crucial for the switchgear's insulation and arc-quenching capabilities.

Versatile Applications:

• The Ring Main Unit switchgear is widely applicable in power distribution systems of power plants and substations, providing a robust solution for primary power management.
• It is also ideal for energy-intensive industries such as coal, oil, and chemical, where reliable power distribution is critical.
• In transportation hubs like airports, railway stations, and port facilities, the switchgear ensures continuous and safe power supply.
• High-rise buildings, sports complexes, and other large construction projects benefit from the switchgear's compact design and high performance.
• Mining operations and large-scale manufacturing facilities also rely on the switchgear for their demanding power distribution needs.

The 10kV SF6 Gas-Insulated Switchgear is a testament to technological advancement in electrical distribution, offering a blend of safety, efficiency, and adaptability that is unmatched in the industry. It is the choice for forward-thinking organizations seeking a reliable and future-proof solution for their power distribution challenges.
