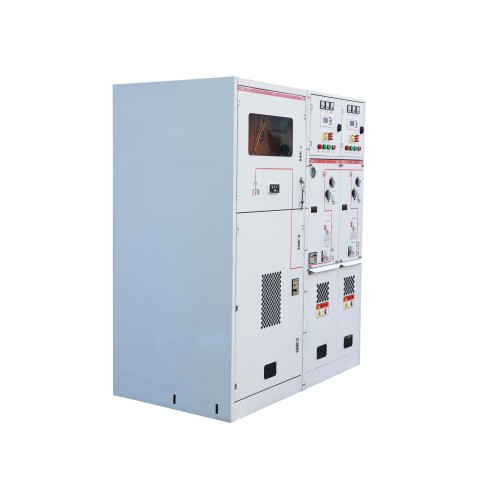

SF6 Gas-Insulated Ring Main Unit

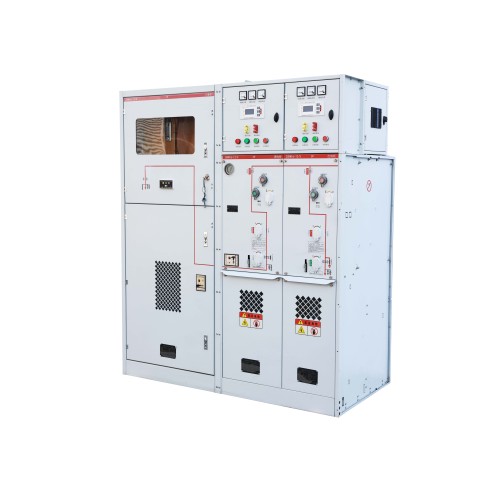

Product Description: 10kV SF6 Gas-Insulated Ring Main Unit - A New Era in Electrical Distribution

Experience the pinnacle of electrical distribution with the 10kV SF6 Gas-Insulated Ring Main Unit, a next-generation solution that combines advanced gas insulation technology with a compact design to deliver unparalleled safety, performance, and ease of use in high-voltage applications.

Key Product Attributes:

• Advanced SF6 Gas Insulation: Our Inflatable Ring Main Unit is equipped with SF6 gas insulation, a proven technology that offers superior protection for high-voltage components, ensuring consistent operation even in the most demanding conditions.
• Space-Saving Design: The compact form factor of the Ring Main Unit is tailored for installations with limited space, providing a powerful electrical distribution solution without occupying excessive footprint.
• Simplified User Interface: The user-centric design of the Ring Main Unit streamlines high-voltage operations, making it accessible to operators with varying levels of expertise and reducing the potential for operational errors.
• Low Maintenance Operation: The sealed SF6 gas compartment significantly reduces the need for regular maintenance, leading to cost savings and increased operational efficiency.

Technical Details:

• The Ring Main Unit Switchgear is designed for secondary distribution systems up to 12kV, making it ideal for high-load and high-density power distribution in various settings, from commercial to rural areas.
• Its modular construction allows for a variety of main switches, including load switches, combination units with fuses, and circuit breakers, to be customized to fit specific network requirements.
• Each Ring Main Unit is equipped with an independent SF6 gas compartment, meticulously crafted from 3mm thick imported stainless steel and laser-welded for maximum strength and gas-tightness.
• The Ring Main Unit is engineered to operate safely under a broad spectrum of environmental conditions, thanks to the protective barrier of SF6 gas insulation.

Manufacturing Precision:

• AMADA Laser Cutting Machine: This high-precision equipment ensures that every component is manufactured to exacting standards, contributing to the overall precision and quality of the Ring Main Unit.
• OTC Welding Robot: The precision welding robot guarantees the accuracy and airtightness of the SF6 gas compartments, which is vital for maintaining the integrity of the gas.
• LEYBOLD Helium Mass Spectrometer Leak Detector: This advanced technology ensures that the SF6 gas compartment's leak rate is below national standards, enhancing safety and reliability.
• Computer-Controlled Vacuum and Gas Filling System: This system ensures that the gas compartments remain undistorted and that the SF6 gas maintains a high purity level of 99.9%, essential for the Ring Main Unit's insulation and arc-quenching capabilities.

Broad Application Range:

• The Ring Main Unit is extensively used in power distribution systems of power plants and substations, providing a robust solution for primary power management.
• It is also ideal for energy-intensive industries such as coal, oil, and chemical, where reliable power distribution is critical.
• In transportation hubs like airports, railway stations, and port facilities, the Ring Main Unit ensures continuous and safe power supply.
• High-rise buildings, sports complexes, and other large construction projects benefit from the Ring Main Unit's compact design and high performance.
• Mining operations and large-scale manufacturing facilities also rely on the Ring Main Unit for their demanding power distribution needs.

The 10kV SF6 Gas-Insulated Ring Main Unit Switchgear Cabinet represents the forefront of electrical distribution technology, offering a blend of safety, efficiency, and adaptability that is unmatched in the industry. It is the choice for forward-thinking organizations seeking a reliable and future-proof solution for their power distribution challenges.
