SF6-Filled Ring Main Unit

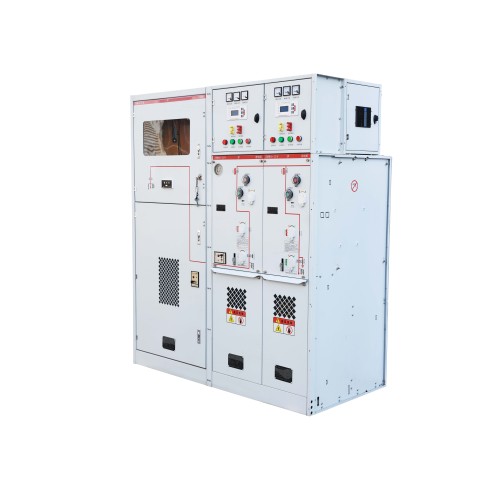

Product Description: 10kV SF6 Insulated Compact Switchgear Cabinet for Advanced Power Management

Step into the realm of advanced power management with the 10kV SF6 Insulated Compact Switchgear, a revolutionary product designed to redefine the standards of high-voltage electrical distribution with its exceptional performance and reliability.

Unique Selling Propositions:

• Superior SF6 Gas Insulation: This switchgear employs SF6 gas insulation, a proven technology that offers superior safety and protection for high-voltage components, ensuring dependable operation even in extreme environmental conditions.
• Optimized Space Design: The switchgear's compact design is an ideal solution for areas with space constraints, providing a powerful and efficient electrical distribution solution in a minimal footprint.
• Simplified Operation: The switchgear is designed with an intuitive interface, making high-voltage operations more accessible and less complex for operators of all skill levels.
• Reduced Maintenance Requirements: The sealed SF6 gas compartment significantly decreases the frequency of maintenance, leading to cost savings and increased operational efficiency.

Technical Highlights:

• The Inflatable Ring Main Unit is crafted for secondary distribution systems up to 12kV, perfectly suited for high-load and high-density power distribution in diverse settings, from urban to rural landscapes.
• Its modular architecture allows for a variety of main switches, including load switches, combination units with fuses, and circuit breakers, to be tailored to specific network requirements.
• Each switchgear unit is equipped with an independent SF6 gas compartment, expertly crafted from 3mm thick imported stainless steel and laser-welded for maximum strength and gas-tightness.
• The switchgear is engineered to operate safely under a broad spectrum of environmental conditions, thanks to the protective barrier of SF6 gas insulation.

State-of-the-Art Manufacturing:

• AMADA Laser Cutting Machine: This high-precision equipment ensures that every component is manufactured to exacting standards, contributing to the overall precision and quality of the switchgear.
• OTC Welding Robot: The precision welding robot guarantees the accuracy and airtightness of the SF6 gas compartments, which is vital for maintaining the integrity of the gas.
• LEYBOLD Helium Mass Spectrometer Leak Detector: This advanced technology ensures that the SF6 gas compartment's leak rate is below national standards, enhancing safety and reliability.
• Computer-Controlled Vacuum and Gas Filling System: This system ensures that the gas compartments remain undistorted and that the SF6 gas maintains a high purity level of 99.9%, essential for the switchgear's insulation and arc-quenching capabilities.

Diverse Application Scenarios:

• The switchgear is extensively used in power distribution systems of power plants and substations, providing a robust solution for primary power management.
• It is also ideal for energy-intensive industries such as coal, oil, and chemical, where reliable power distribution is critical.
• In transportation hubs like airports, railway stations, and port facilities, the switchgear ensures continuous and safe power supply.
• High-rise buildings, sports complexes, and other large construction projects benefit from the switchgear's compact design and high performance.
• Mining operations and large-scale manufacturing facilities also rely on the switchgear for their demanding power distribution needs.

The 10kV SF6 Insulated Compact Ring Main Unit Switchgear is a testament to the evolution of electrical distribution, offering a blend of safety, efficiency, and adaptability that is unmatched in the industry. It is the choice for forward-thinking organizations seeking a reliable and future-proof solution for their power distribution challenges.
