XGN15 Series Gas-Insulated Switchgear for Ring Networks

Product Overview:

Discover the XGN15 Series Insulated Ring Main Unit (RMU), a cutting-edge solution in switchgear technology that integrates the superior performance of SF6 gas-insulated switches with the durability of air-insulated, metal-enclosed structures. This innovative series is designed to meet the dynamic requirements of modern power distribution, providing a compact and highly flexible solution for electrical automation needs.

Key Highlights:

1. Durable and Long-lasting: The XGN15 Series Ring Main Unit Switchgear is built for endurance, capable of withstanding up to 20,000 mechanical operations, significantly reducing the frequency of maintenance interventions.

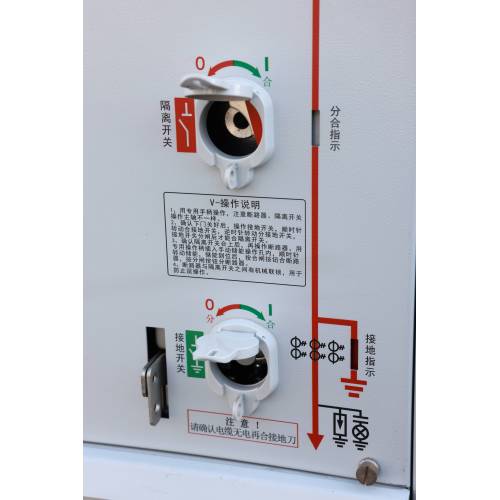

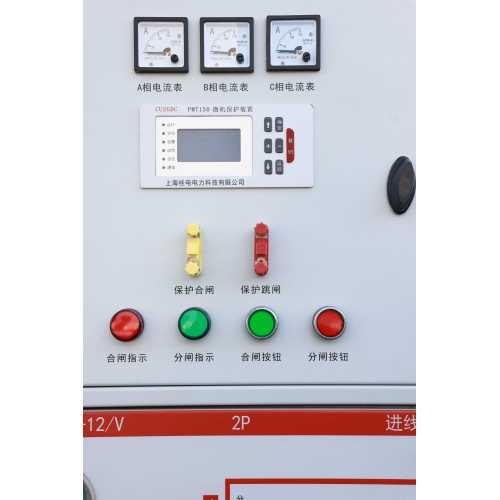

2. Easy Maintenance Design: The unit features user-friendly front access for monitoring instruments and operating the main switch, complemented by rear access for efficient cable maintenance and fault diagnosis.

3. Space-saving and Practical: With a rear pressure relief channel, the XGN15 Series RMU boasts a compact design that is space-efficient without sacrificing functionality, making it suitable for various installation environments.

4. Safety-Oriented Compartmentalization: The switchgear is compartmentalized into four distinct safety chambers: a busbar chamber, switchgear unit, cable chamber, and control and operating mechanism chamber, enhancing operational safety and simplifying management.

5. Robust and Aesthetic Construction: The cabinet is made from premium materials such as aluminum-zinc coated sheets, galvanized sheets, or cold-rolled sheets, and is enhanced with a powder coating for improved durability and visual appeal.

6. Versatile for Diverse Applications: Suitable for 10kV distribution systems in a variety of settings including industrial, commercial, and residential, the XGN15 Series RMU can be effortlessly integrated into ring network systems for efficient power supply and distribution.

7. Sophisticated Safety Features: The RMU comes with SF6 gas pressure indicators for constant monitoring, a spacious cable chamber for additional components, and safety interlocks to prevent unauthorized operations.

8. Wider Environmental Compatibility: The XGN15 Series RMU is engineered to operate in a broad range of environmental conditions, functioning effectively in temperatures from -15°C to +40°C, with an average temperature not exceeding 35°C over 24 hours.

9. Compliance with International Standards: Constructed in accordance with global standards such as IEC 62271 and national standards like GB3906, this RMU guarantees a high standard of quality and performance.

10. Eco-friendly and Low-Maintenance Operation: The XGN15 Series RMU is recognized for its minimal maintenance requirements, extended service life, high operational reliability, and environmentally responsible operation.

The XGN15 Series Inflatable Ring Main Unit is a testament to innovation in power distribution, delivering a secure, dependable, and efficient method for managing electrical power across a spectrum of network configurations.
