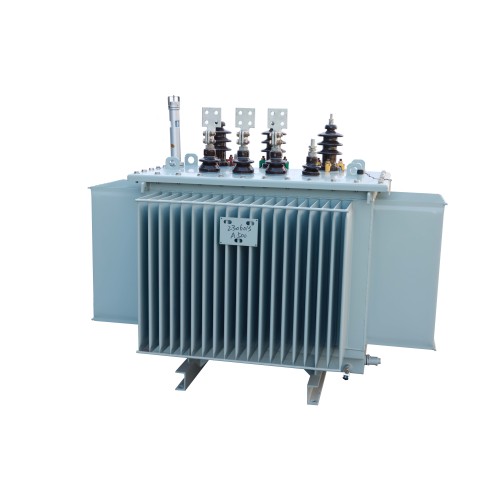

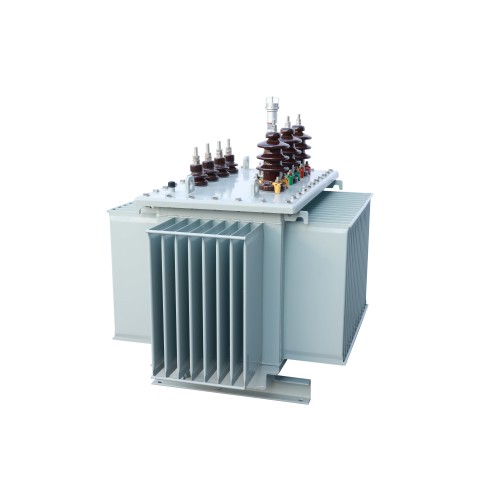

The S11, S13, S20, and S22 series of oil-filled distribution transformers are designed to meet the growing demands for energy efficiency and environmental sustainability in power distribution systems. Each series offers unique features and improvements over the previous models, providing a range of options for different applications.
· Energy Efficiency: Achieves a 30% reduction in no-load losses compared to the S9 series.
· Compliance: Meets IEC 60076 and GB1094 standards.
· Design: Streamlined for strength and minimal energy loss, with a focus on sustainability.
· Energy Efficiency: Offers a 25% reduction in no-load losses and an 80% reduction in no-load current compared to the S11 series.
· Compliance: Adheres to IEC 60076 and GB1094 standards.
· Core Material: High-quality 23ZH90 silicon steel sheets reduce hysteresis and eddy current losses.
· Winding: Copper foil winding improves current distribution and short-circuit resistance
· Energy Efficiency: Continues efficiency improvements with advanced design features.
· Compliance: Strictly follows IEC 60076 and GB1094 standards.
· Design: Fully sealed structure for long-term reliability and minimal environmental impact.
· Energy Efficiency: Represents the pinnacle of energy efficiency with the lowest no-load losses.
· Compliance: Meets IEC 60076 and GB1094 standards.
· Design: Advanced cooling systems and eco-friendly insulating oils.
· Environmental Impact: Biodegradable oils reduce environmental pollution.
Application fields
Widely used in power plants, power grids, petrochemicals, metallurgy, industrial and mining enterprises, urban infrastructure, such as airports, subways, docks and residential areas.
Technical features
The low-voltage winding can be wound in foil, which has a compact structure and reduces the radial force during short circuit, greatly enhancing the ability to resist sudden short circuits.
The box adopts a fully sealed corrugated oil tank structure to prevent air and moisture from contacting the transformer oil, reduce the degree of oil aging, and extend the service life of the transformer; the volume change of the transformer oil due to thermal expansion and contraction is adjusted through the elastic deformation of the corrugated sheet.
The product is an outdoor structure with a high anti-fouling grade and good heat dissipation; there is no need to replace the transformer oil during normal use, which is truly maintenance-free and ensures the safe operation and reliability of the power grid. 5. The transformer is equipped with a pressure release safety protection device. When the transformer fails and the pressure is too high, it can be released reliably and safely through the pressure release valve to prevent the expansion of the accident.
Product advantages
Good technical and economic performance, long service life, high operating reliability, and small footprint.
10kV Oil Immersed Distribution Transformer energy efficiency grade table
