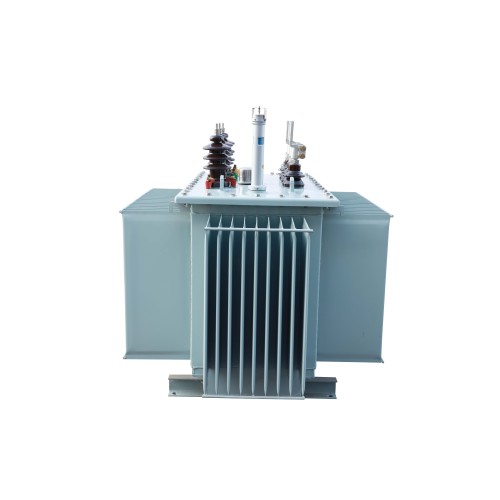

10kV Energy-saving Oil-Cooled Transformer

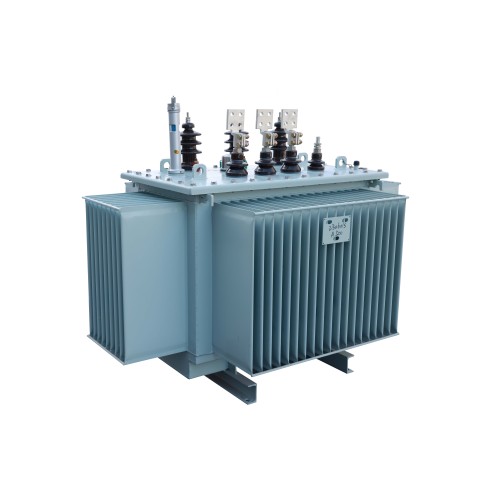

S11 Series Oil-Filled Transformer: Pioneers in Power Distribution Efficiency

Introduction: The S11 series Oil-immersed Transformer are at the vanguard of advanced engineering, meticulously designed to revolutionize power distribution with a focus on energy efficiency, material conservation, and environmental sustainability. These state-of-the-art transformers offer a significant leap in performance over their predecessors, making them integral to modern power infrastructure.

Key Technical Specifications:

1. Energy Efficiency:The S11 series transformers achieve a notable 30% reduction in no-load losses compared to the S9 series, aligning with the most stringent global energy conservation and emission reduction standards.

2. Structural Design:Characterized by a streamlined, rational design, these transformers ensure exceptional structural strength, reduced weight, and optimized oil circulation for superior heat dissipation and minimal energy loss.

3. Regulatory Compliance:Manufactured in strict adherence to the International Electrotechnical Commission (IEC) 60076 and the People's Republic of China National Standard GB1094, ensuring compliance with the highest industry benchmarks.

Technical Features:

• Core Material:Utilizes high-quality cold-rolled grain-oriented silicon steel sheets, known for their excellent magnetic properties and low core losses.

• Core Design:Features a multi-step progressive full-lap joint structure that enhances the transformer's efficiency and durability.

• Winding Configuration:The low voltage winding is designed for compactness and strength, reducing radial forces during short circuits and enhancing the transformer's resilience.

Applications:

The S11 series transformers are extensively used across various critical infrastructure sectors, including:

• Power generation facilities for efficient energy production.
• Electrical transmission networks for reliable power distribution.
• Petrochemical industries for stable power supply.
• Metallurgical plants for demanding power requirements.
• Industrial and mining enterprises for continuous operations.
• Urban infrastructure projects, including airports, subways, docks, and residential areas, for sustainable power solutions.

Performance Advantages:

• Economic Performance:Offers a superior balance between technical performance and economic viability, positioning it as a cost-effective solution for power distribution.
• Extended Lifespan:Designed for longevity, ensuring a prolonged service life with minimal maintenance, reducing total cost of ownership.
• Operational Reliability:Guarantees high levels of operational dependability, contributing to the stability and reliability of the power grid.
• Space Optimization:Designed to occupy minimal space, optimizing spatial utilization in power distribution facilities, particularly beneficial in urban and constrained environments.

Conclusion:

The S11 series Oil Immersed Distribution Transformer are not just a testament to innovation in power distribution technology; they represent a commitment to environmental responsibility and economic efficiency. Setting a new standard for performance and sustainability in the power industry, these transformers provide a reliable and efficient solution for modern power needs, ensuring a greener and more reliable future for power infrastructure.

10kV Oil Immersed Distribution transformer energy efficiency grade table

Oil-immersed transformer is a common power equipment. Its important parameters and related interpretations are as follows:

Rated capacity (kVA or MVA)

• Refers to the maximum power that the transformer can output when it is continuously running at rated voltage and rated current.
• For example, a 1000kVA transformer means that it can output 1000kVA of power under rated conditions.

Rated voltage (kV)

• The rated voltage value of the primary and secondary sides of the transformer. For example, a 10kV/0.4kV transformer means that the primary voltage is 10kV and the secondary voltage is 0.4kV.

Rated current (A)

• The maximum current allowed to pass through the transformer for a long time at rated capacity.

Winding connection group

• Indicates the connection method of the transformer winding, such as star (Y) or triangle (Δ). For example, Y, yn0 means that the high-voltage side is star-connected, the low-voltage side is star-connected and the neutral point is grounded.

Impedance voltage (%)

• When the secondary winding of the transformer is short-circuited and the primary winding is voltaged so that the current of the secondary winding reaches the rated value, the percentage of the voltage applied on the primary side to the rated voltage. The smaller the impedance voltage, the greater the short-circuit current of the transformer, and the higher the requirement for system stability.

No-load current (%)

• When the transformer is running at no-load at rated voltage, the current passing through the primary winding is usually expressed as a percentage of the rated current.

No-load loss (kW)

• The active power consumed by the transformer due to core hysteresis and eddy current loss when it is no-load.

Load loss (kW)

• The active power consumed by the winding due to resistance loss when the transformer is under rated load.
• Insulation and cooling parameters
