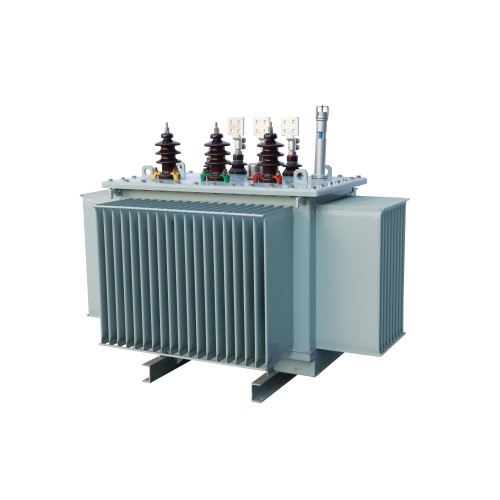

10kV S11 Environmentally Friendly Oil Transformer

10kV S11 Environmentally Friendly Oil Transformer

Get Latest Price

Contact Now

Brand: Jutai

Description

Product Description

Eco-Friendly 10kV S11 Oil Transformer for Sustainable Power Distribution

The design of S11 series oil transformer embodies excellent energy efficiency and meets strict environmental standards, which is superior to the performance of S9 and S10 models. The design of these transformers considers the future and provides a new level of performance and sustainability for the distribution system.S11 series oil-immersed Power Transformer represent the new standard of distribution efficiency and sustainability, which proves our commitment to innovation, performance and environmental responsibility. By choosing S11 series, you will invest in a future that not only provides high efficiency, but also contributes to sustainable development.

Main features:

Energy saving: Compared with S9 series, S11 series Oil-immersed Transformer can significantly reduce the off-load loss by 30%, which has made great progress in energy saving.

Refrigeration efficiency: due to the solid structure and improved oil circulation, these transformers can provide higher refrigeration efficiency, ensure the best working temperature and longer module life.

Compatibility: Strictly abide by IEC 60076 and GB1094 standards, ensure that S11 series switches conform to international manufacturing agreements, and ensure safety, reliability and performance.

Diversity: S11 series is an ideal choice for various applications, including power generation facilities, power grids and urban infrastructure, such as airports and subway systems, in which reliable and efficient power is essential.

Economy and durability: These transformers provide economic efficiency and extend service life, thus reducing total cost of ownership and maintenance requirements.

Technical features

1. The core is made of high-permeability, low-loss cold-rolled oriented silicon steel strip, and adopts a unique lamination structure to minimize the distortion of magnetic flux density, thereby greatly reducing no-load loss and no-load current. Since the core joint air gap of this type of transformer is small and the joints of each layer are staggered, the no-load loss is smaller, the no-load current is lower, and the noise is reduced by 5-10dB.
2. The low-voltage winding can be wrapped in foil, which has a compact structure and reduces the radial force during short circuit, greatly enhancing the ability to resist sudden short circuit.

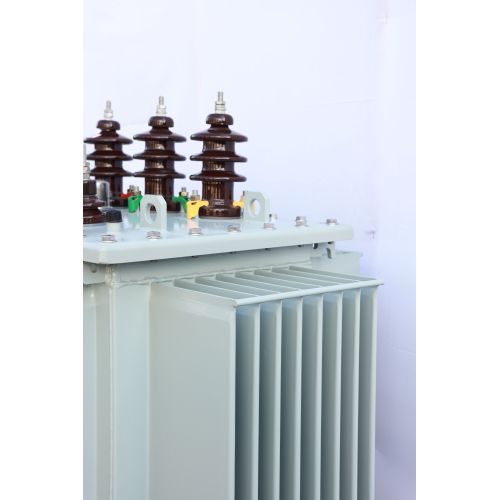

3. The box adopts a fully sealed structure of corrugated oil tank to prevent air and moisture from contacting the transformer oil, reduce the degree of oil aging, and extend the service life of the transformer; the volume change of transformer oil due to thermal expansion and contraction is adjusted through the elastic deformation of the corrugated sheet.
