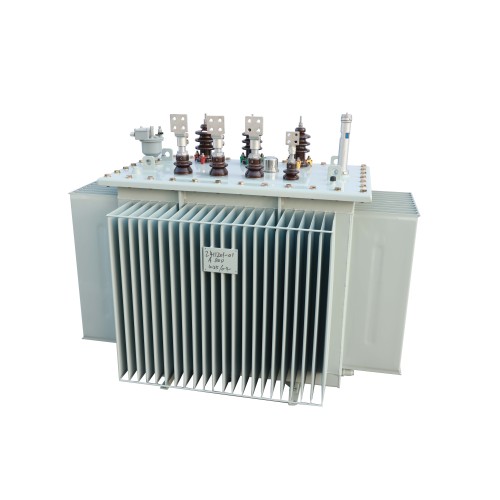

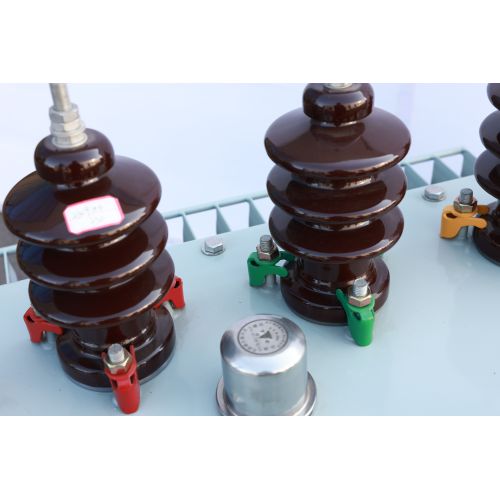

10kV Oil-filled Electric Transformer

S11 Series Oil Immersed Transformer: Redefining Efficiency in Power Distribution

Introduction: The S11 series Oil-Filled Transformer represent a monumental shift in the power distribution industry, elevating energy efficiency and environmental sustainability to new heights. These Oil Immersed Distribution Transformer are the next generation in electrical power transformation, improving upon the reliable foundations of the S9 and S10 models with advanced engineering and material science.

Key Benefits:

1. Enhanced Energy Efficiency:The S11 series transformers deliver a substantial 30% reduction in no-load losses compared to the S9 series, positioning them at the forefront of energy conservation. This advancement translates into significant energy savings and aligns with global initiatives for sustainable energy use.

2. Structural Integrity and Lightweight Design:Characterized by a simple yet rational design, the S11 series offers exceptional structural strength coupled with a lightweight construction. This design philosophy ensures durability and facilitates easier installation and maintenance, contributing to overall cost-effectiveness.

3. Regulatory Compliance and Industry Standards:Manufactured with strict adherence to the International Electrotechnical Commission (IEC) 60076 and the People's Republic of China National Standard GB1094, the S11 series transformers are guaranteed to meet the highest industry benchmarks for safety, reliability, and performance.

Advanced Technical Features:

• Core Material and Design:The S11 series utilizes high-quality cold-rolled grain-oriented silicon steel, renowned for its superior magnetic properties. This material, combined with a multi-step progressive full-lap joint structure, ensures optimal magnetic flux distribution and minimizes energy loss.

• Winding Technology:The low-voltage windings are crafted with precision for compactness and strength, reducing radial forces during short circuits and enhancing the transformer's resilience against electrical stress.

• Thermal Management:An advanced cooling system ensures that the transformers operate within optimal temperature ranges, prolonging their service life and maintaining peak efficiency under varying load conditions.

Applications:

The S11 series transformers are versatile and suitable for a wide range of applications, including:

• Power generation facilities for efficient energy production.
• Electrical transmission and distribution networks for reliable power flow.
• Industrial and commercial complexes requiring high power reliability.
• Urban infrastructure projects, including airports, subways, docks, and residential areas, for sustainable power solutions.

Performance Advantages:

1. Economic Performance:Offers a superior balance between technical performance and economic viability, ensuring cost-effective operation and long-term value.

2. Extended Lifespan:Engineered for longevity, these transformers ensure a long service life with minimal maintenance, reducing total cost of ownership.

3. Operational Reliability:With high levels of operational dependability, the S11 series contributes significantly to the stability and reliability of the power grid.

4. Space Optimization:The compact design of the S11 series maximizes spatial utilization in power distribution facilities, making it ideal for installations with limited space.

Conclusion:

The S11 series Oil immersed Distribution transformer are a testament to our commitment to innovation, efficiency, and sustainability in power distribution technology. They set a new benchmark for performance and environmental responsibility, providing a reliable and efficient solution for modern power infrastructure needs. Choose the S11 series for a future-proof investment in your power distribution capabilities.

10kV Oil Immersed distribution transformer energy efficiency grade table
