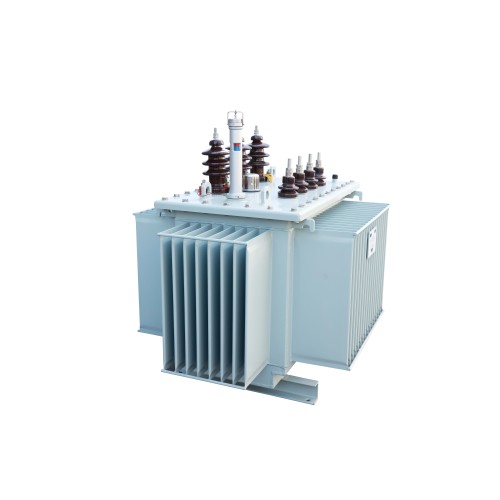

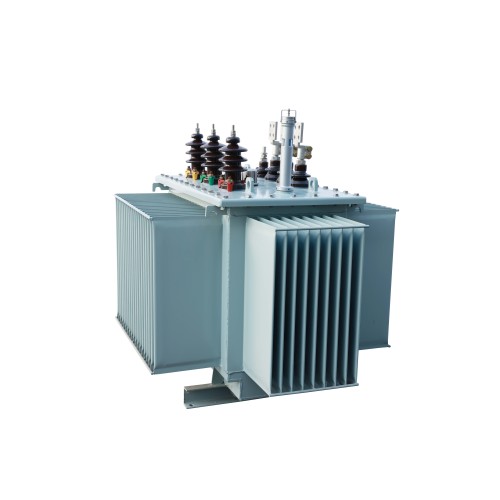

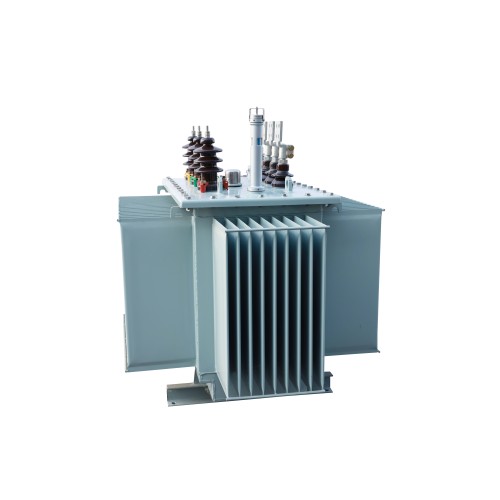

High quality Oil Immersed Transformer, such as the S11 series, are designed to deliver exceptional performance, efficiency, and reliability in diverse industrial and commercial settings. These transformers offer a range of configurations and capacities, making them suitable for various applications. The S11 series, in particular, is known for its energy efficiency, reduced operational costs, and compliance with international standards.
The S11 series Oil Immersed Distribution Transformer are available in a wide range of capacities from 30 kVA to 2500 kVA. They offer two vector group configurations: Yyn0 and Dyn11, providing flexibility in phase shift angles for precise voltage regulation and stability in power distribution networks.
1. The core adopts high magnetic conductivity and low loss cold-rolled oriented silicon steel strip, and adopts a unique lamination structure to minimize the distortion of magnetic flux density, thereby greatly reducing no-load loss and no-load current. Because the air gap of the core joint of this type of transformer is small, and the joints of each layer are staggered, the no-load loss is smaller, the no-load current is lower, and the noise is reduced by 5-10dB.
2. The low-voltage winding can be wrapped in foil, which has a compact structure and reduces the radial force during short circuit, and the ability to resist sudden short circuit is greatly enhanced.
3. The box adopts a fully sealed structure of corrugated oil tank to prevent air and moisture from contacting the transformer oil, reduce the aging of the oil, and extend the service life of the transformer; the volume change of the transformer oil due to thermal expansion and contraction is adjusted by the elastic deformation of the corrugated sheet.
4. The product is an outdoor structure with a high anti-fouling grade and good heat dissipation; there is no need to replace the transformer oil during normal use, which is truly maintenance-free and ensures the safe operation and reliability of the power grid.
High quality oil-immersed transformers are widely used in various critical infrastructure sectors, including:
Power Generation Facilities: Efficient energy production.
Electrical Transmission Networks: Reliable power distribution.
Petrochemical Industries: Stable power supply.
Metallurgical Plants: Demanding power requirements.
Industrial and Mining Enterprises: Continuous operations.
Urban Infrastructure Projects: Including airports, subways, docks, and residential areas, providing sustainable power solutions.
Biodegradable Insulating Oils: The use of biodegradable insulating oils reduces the environmental impact of transformer operation, minimizing soil and water contamination.
Extended Transformer Life: By using high-quality materials and advanced design features, the transformers have a longer service life, reducing the need for frequent replacements and associated waste.
Cost Savings: The energy efficiency of the S11 series leads to significant cost savings over the long term, reducing operational expenses.
Extended Lifespan: Designed for longevity, ensuring a prolonged service life with minimal maintenance, reducing the total cost of ownership.
Operational Reliability: Guarantees high levels of operational dependability, contributing to the stability and reliability of the power grid.
Space Optimization: Designed to occupy minimal space, optimizing spatial utilization in power distribution facilities, particularly beneficial in urban and constrained environments.
High quality oil-immersed transformers, such as the S11 series, are not just a testament to innovation in power distribution technology; they represent a commitment to environmental responsibility and economic efficiency. Setting a new standard for performance and sustainability in the power industry, these transformers provide a reliable and efficient solution for modern power needs, ensuring a greener and more reliable future for power infrastructure.
