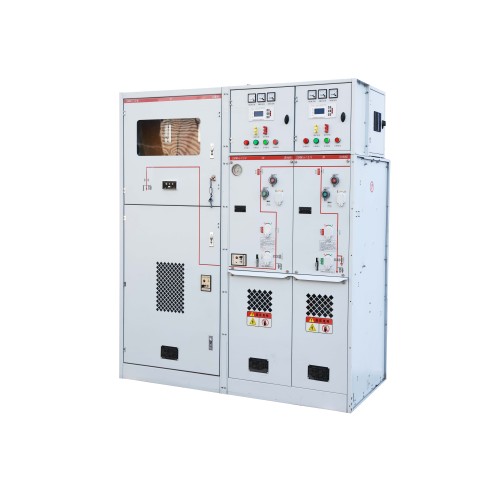

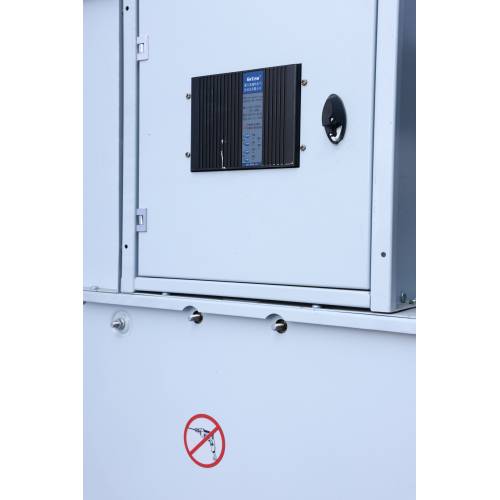

SF6 Gas Insulated Ring Main Unit

Product Description: 10kV SF6 Gas-Insulated Ring Main Unit - Excellence in High-Voltage Distribution

Introducing the 10kV SF6 Gas-Insulated Ring Main Unit, a groundbreaking solution in high-voltage electrical distribution that champions safety, compactness, and operational simplicity. This RMU is designed to meet the rigorous demands of modern power systems with its innovative gas-insulated technology.

Product Features:

• Innovative SF6 Gas Insulation: The Inflatable Ring Main Unit is equipped with SF6 gas insulation, a technology that provides exceptional protection for high-voltage components, ensuring reliable operation even in extreme environmental conditions.
• Compact and Space-Efficient: The RMU's compact design is perfect for installations with limited space, offering a powerful electrical distribution solution in a minimal footprint.

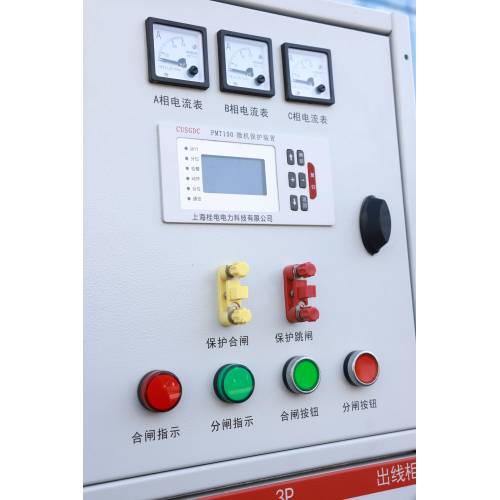

• User-Friendly Interface: The RMU is designed with an intuitive interface, simplifying high-voltage operations and making it accessible to operators of all skill levels.
• Minimal Maintenance: The sealed SF6 gas compartment significantly reduces maintenance needs, leading to cost savings and increased operational efficiency.

Technical Specifications:

• The Ring Main Unit Switchgear is designed for secondary distribution systems up to 12kV, making it ideal for high-load and high-density power distribution in various settings, from commercial to rural areas.
• Its modular construction allows for a variety of main switches, including load switches, combination units with fuses, and circuit breakers, to be customized to fit specific network requirements.
• Each RMU is equipped with an independent SF6 gas compartment, meticulously crafted from 3mm thick imported stainless steel and laser-welded for maximum strength and gas-tightness.
• The RMU is engineered to operate safely under a broad spectrum of environmental conditions, thanks to the protective barrier of SF6 gas insulation.

Manufacturing Precision:

• AMADA Laser Cutting Machine: This high-precision equipment ensures that every component is manufactured to exacting standards, contributing to the overall precision and quality of the RMU.
• OTC Welding Robot: The precision welding robot guarantees the accuracy and airtightness of the SF6 gas compartments, which is vital for maintaining the integrity of the gas.
• LEYBOLD Helium Mass Spectrometer Leak Detector: This advanced technology ensures that the SF6 gas compartment's leak rate is below national standards, enhancing safety and reliability.
• Computer-Controlled Vacuum and Gas Filling System: This system ensures that the gas compartments remain undistorted and that the SF6 gas maintains a high purity level of 99.9%, essential for the RMU's insulation and arc-quenching capabilities.

Application Versatility:

• The RMU Switchgear Cabinet is extensively used in power distribution systems of power plants and substations, providing a robust solution for primary power management.
• It is also ideal for energy-intensive industries such as coal, oil, and chemical, where reliable power distribution is critical.
• In transportation hubs like airports, railway stations, and port facilities, the RMU ensures continuous and safe power supply.
• High-rise buildings, sports complexes, and other large construction projects benefit from the RMU's compact design and high performance.
• Mining operations and large-scale manufacturing facilities also rely on the RMU for their demanding power distribution needs.

The 10kV SF6 Gas-Insulated Ring Main Unit is a testament to the evolution of electrical distribution, offering a blend of safety, efficiency, and adaptability that is unmatched in the industry. It is the choice for forward-thinking organizations seeking a reliable and future-proof solution for their power distribution challenges.
