XGN15 Series Insulated Ring Main Unit (RMU): Pioneering Power Distribution

Product Description

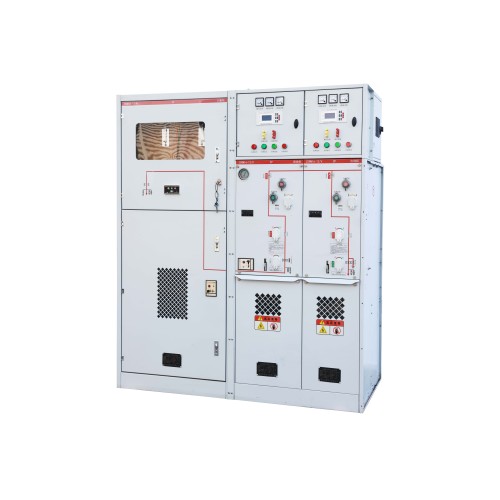

The XGN15 Series Insulated RMU Switchgear Cabinet is a cutting-edge switchgear system that fuses advanced SF6 gas-insulated switching technology with the robustness and safety of an air-insulated, metal-enclosed design. Engineered for the demands of modern power distribution, this series offers a compact and highly functional solution for electrical automation and control.

Key Features

1. Durable Operation:

   • Designed for extended operation with a mechanical life of up to 20,000 operations, reducing maintenance frequency.

2. Efficient Maintenance Design:

   • Features front access for monitoring and operating the main switches and rear access for cable fault detection and servicing.

3. Space-Saving Structure:

   • Includes a pressure relief channel at the back, optimizing space usage for various installation sites despite its compactness.

4. Compartmentalization for Safety:

   • Compartmentalized into four distinct sections: busbar chamber, switchgear unit, cable chamber, and control and operating mechanism chamber, enhancing safety and streamlining operations.

5. Sturdy and Aesthetic Enclosure:

   • The cabinet shell is made from durable materials such as aluminum-zinc coated sheets, galvanized sheets, or cold-rolled sheets, with a powder-coated finish for weather resistance and visual appeal.

6. Universal Application:

   • Suitable for industrial, commercial, and residential settings, adept at managing 10kV distribution systems and integrable into ring network systems for power supply and distribution.

7. Safety and Security Features:

   • Equipped with SF6 gas pressure indicators for operational monitoring, ample cable chamber space for additional components, and safety interlocks to prevent accidental operation.

8. Environmental Adaptability:

   • Operates effectively in temperatures from -15°C to +40°C, with an average daily temperature not exceeding 35°C.

9. Standards Compliance:

   • Adheres to international standards such as IEC 62271 and national standards like GB3906, ensuring high-quality and reliable performance.

10. Eco-Friendly and Low Maintenance:

    • Recognized for its low maintenance, long service life, high operational reliability, and environmentally friendly operation.

Conclusion

The XGN15 Series Inflatable Ring Main Unit is a testament to innovation in power distribution, providing a secure, reliable, and efficient means of controlling and safeguarding electrical power in a variety of network configurations. Its integration of advanced technology and environmental responsibility makes it a preferred choice for modern power distribution needs.
