Product Overview:

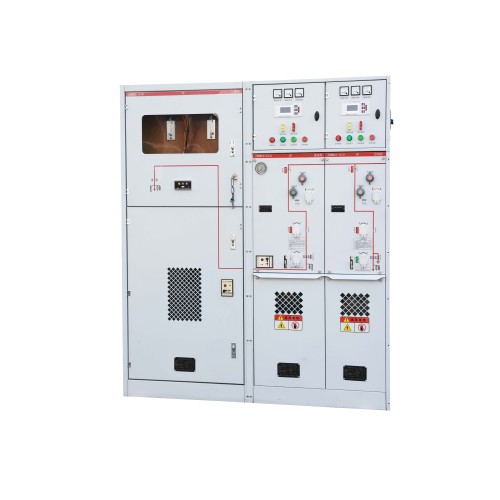

Meet the XGN15 Series Insulated Ring Main Unit (RMU), a state-of-the-art switchgear solution crafted for the pinnacle of reliability and efficiency in power distribution systems. Pioneering a new era in SF6 load switch-based, air-insulated Metal-Enclosed Switchgear, this series presents a compact and scalable solution tailored to the diverse demands of electrical distribution automation.

Key Innovations:

1. Durable Operation: The XGN15 Series RMU is built to last, with a mechanical lifespan capable of enduring up to 20,000 operations, virtually eliminating the need for frequent maintenance.

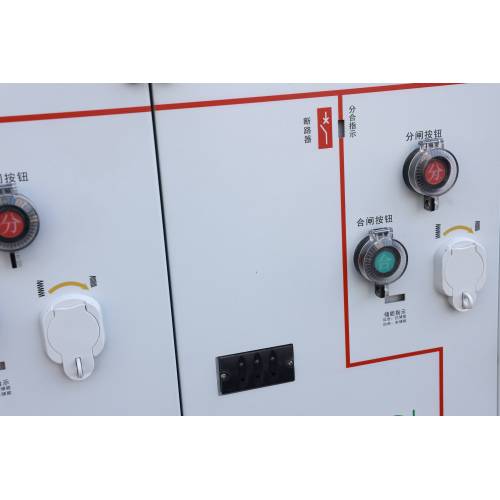

2. Convenient Dual-Access Maintenance: This unit is designed for ease of maintenance, with front access for instrument monitoring and main switch operations, and rear access for efficient cable fault detection and maintenance.

3. Streamlined Cabinet Design: The cabinet's compact structure, enhanced by a rear pressure relief channel, ensures a minimal footprint, making it suitable for a variety of installation sites.

4. Secure Compartmentalization: The Ring Main Unit Switchgear is compartmentalized into four separate, secure sections: a busbar chamber, switchgear unit, cable chamber, and control and operating mechanism chamber, optimizing safety and functionality.

5. Stylish and Robust Construction: The Inflatable Ring Main Unit shell is crafted from premium materials such as aluminum-zinc clad sheet, galvanized sheet, or cold-rolled sheet, precision-machined and finished with a powder coating for enhanced durability and a sleek appearance.

6. Broad Applicability: The XGN15 Series RMU is versatile, fitting seamlessly into 10kV distribution systems across a range of environments, including industrial, commercial, and residential settings, and can be integrated into ring network systems for power supply and distribution.

7. Advanced Safety Features: The cabinet is designed with safety as a priority, featuring SF6 gas pressure gauges for real-time monitoring, a spacious cable chamber for additional components, and safety interlock mechanisms to prevent unauthorized operation.

8. Robust Environmental Tolerance: Engineered to operate in a broad spectrum of environmental conditions, the XGN15 Series RMU functions effectively in temperatures ranging from -15°C to +40°C, with an average daily temperature not exceeding 35°C.

9. Adherence to Global Standards: This RMU is meticulously designed in compliance with international standards such as IEC 62271 and national standards like GB3906, ensuring top-tier quality and performance.

10. Eco-Friendly and Low-Maintenance: The XGN15 Series RMU stands out for its low maintenance needs, extended service life, high operational reliability, and eco-friendly operation, making it a sustainable choice for power distribution.

The XGN15 Series Insulated Ring Main Unit (RMU) is a testament to innovation in power distribution, offering a safe, reliable, and efficient solution for managing and safeguarding electrical power across a spectrum of network configurations.
