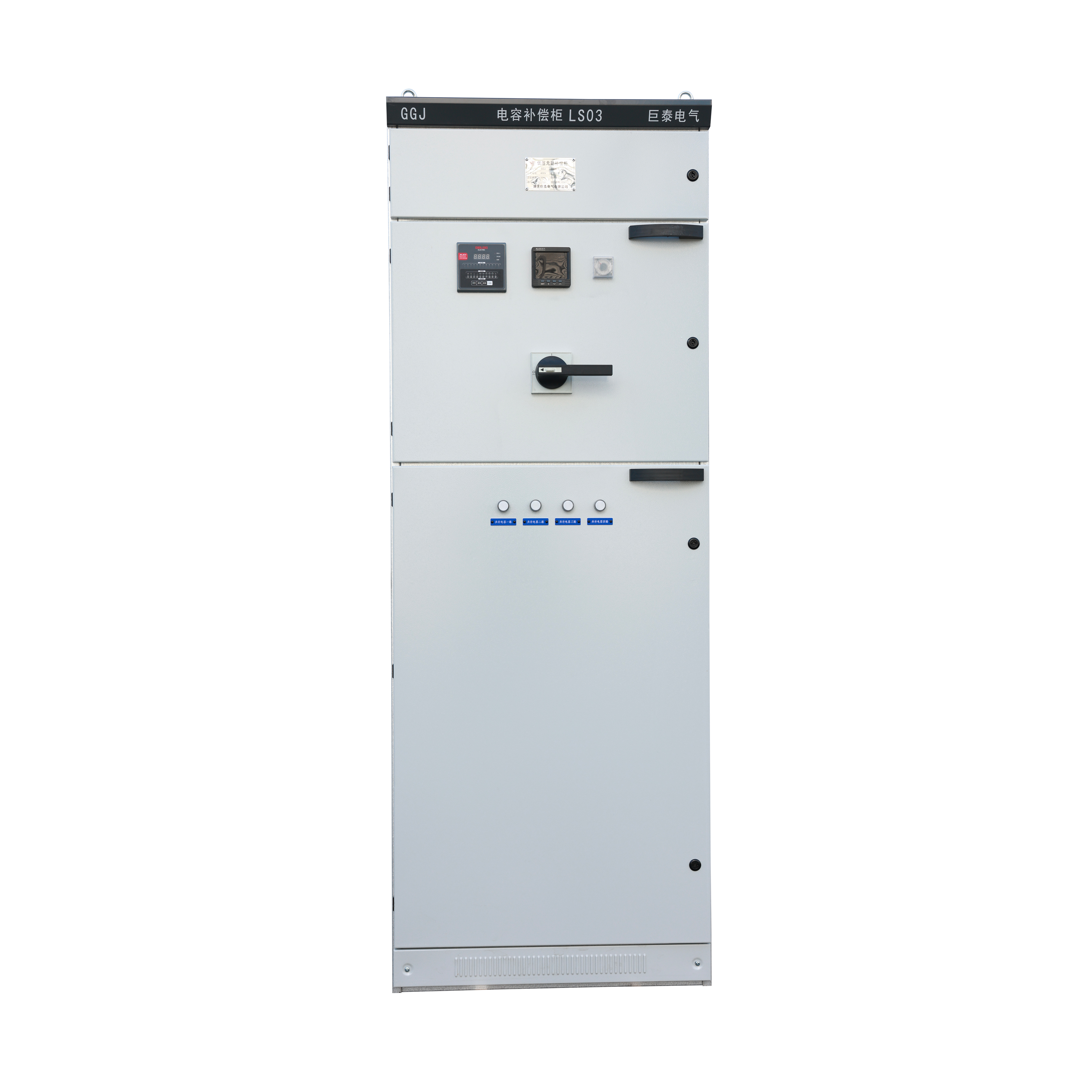

GGJ Low Voltage Withdrawable Switchgear

Product Description:

The Drawer-type Switchgear is a highly efficient low-voltage switchgear solution designed for modern power distribution systems. Engineered to meet the rigorous demands of industrial, commercial, and utility applications, this switchgear provides reliable control and protection for electrical circuits. It is suitable for three-phase AC systems operating at a frequency of 50/60Hz, with a rated voltage of 380V and a current capacity of up to 4000A, making it ideal for a wide range of power management applications.

Key Features:

1. Modular Design:

   • The Drawer Switchgear features a modular architecture that allows for easy customization and scalability. This flexibility enables users to configure the switchgear according to specific operational requirements, facilitating future expansions as power demands increase.

2. Drawer Mechanism:

   • The innovative draw-out design allows for safe and convenient maintenance. Each functional unit can be easily removed or replaced without disrupting the entire system, minimizing downtime during servicing and ensuring operational continuity.

3. Enhanced Safety:

   • The switchgear is equipped with a mechanical interlocking system that prevents accidental operation. This feature ensures that the main switch is securely in the OFF position before the drawer can be accessed or removed, enhancing safety for maintenance personnel.

4. Robust Construction:

   • Built with high-quality materials, the switchgear is designed to withstand harsh environmental conditions. Its galvanized steel structure and protective coatings provide excellent resistance to corrosion and wear, ensuring long-term durability.

5. Efficient Heat Dissipation:

   • The design incorporates effective ventilation and heat dissipation features, which help maintain optimal operating temperatures and enhance the performance and reliability of the switchgear.

6. Versatile Applications:

   • The Drawer type Switchgear is suitable for a variety of applications, including power distribution in manufacturing plants, substations, and commercial buildings, as well as in motor control centers (MCCs) and other critical infrastructure.

The Draw-Out Switchgear is a versatile and robust solution for power distribution, combining safety, efficiency, and adaptability to meet the challenges of modern electrical systems. Its design and functionality make it a preferred choice for applications where high standards of performance and safety are essential.
