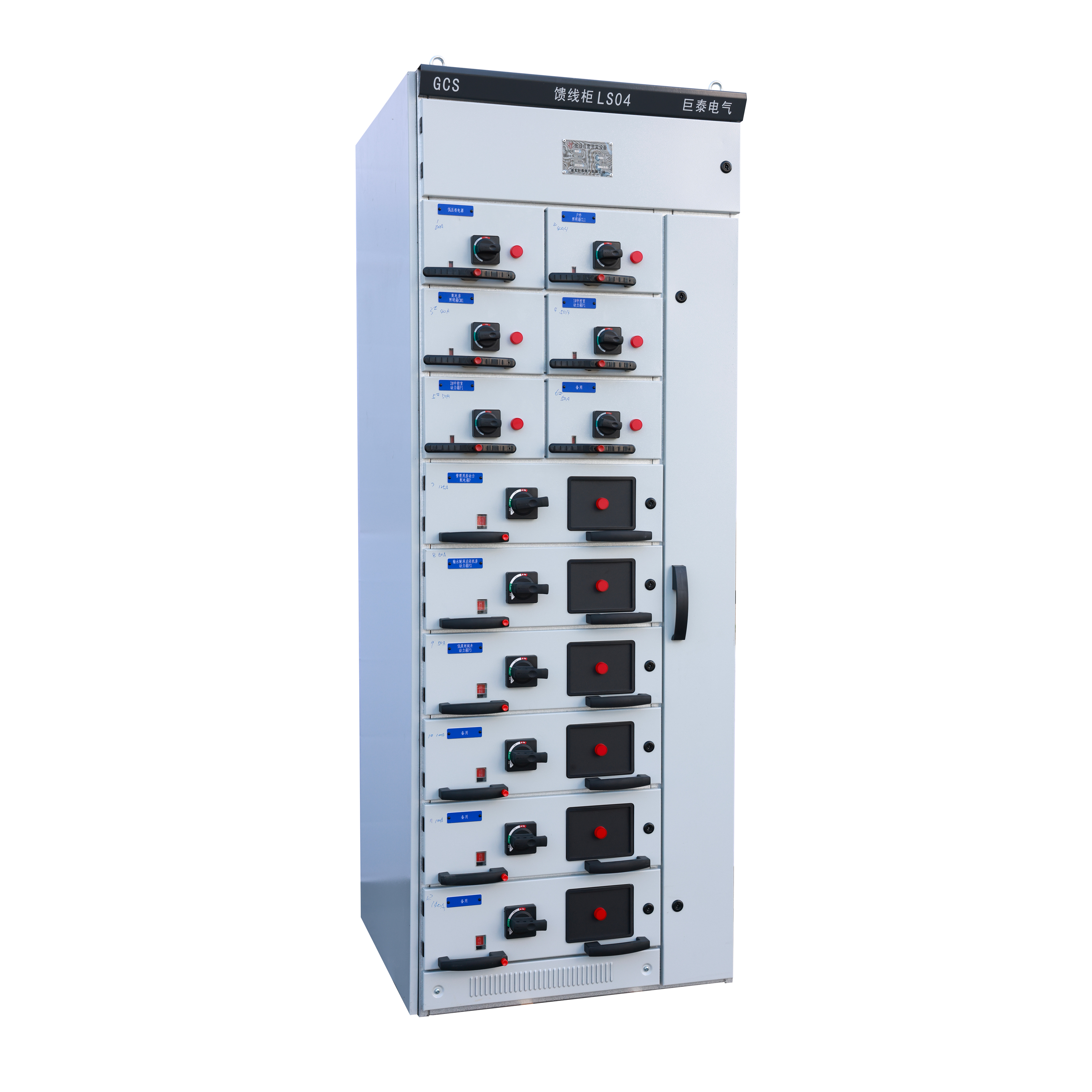

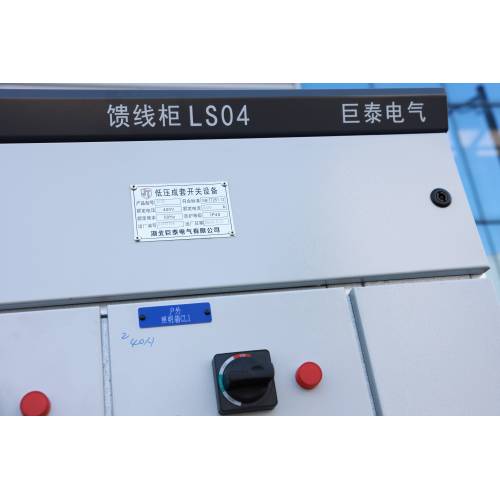

GCS Compact Structure Draw-out Switchgear

GCS Compact Structure Draw-out Switchgear

Get Latest Price

Contact Now

Brand: Jutai

Description

Product Description

Product Description:

The GCS low-voltage Draw-Out Switchgear is a sophisticated electrical distribution system designed to meet the high standards of various industries. This switchgear is recognized for its advanced technical performance and adaptability to the evolving demands of the power market. It is approved by the Ministry of Electric Power and the Ministry of Mechanical Industry and is widely used in applications requiring high automation and computer communication, such as large power stations and petrochemical systems. The GCS switchgear serves as a critical component for low-voltage distribution, motor control, and reactive power compensation in power systems with a rated voltage of 400V or 690V and a rated current reaching up to 4000A.

Application Fields:

The GCS low-voltage Drawer Switchgear is extensively applied across a range of sectors, including industrial manufacturing, power systems, commercial buildings, data centers, petrochemical industry, sewage treatment plants, and rail transit. It provides stable and reliable power distribution and control for production equipment, lighting systems, ventilation systems, and other critical infrastructure.

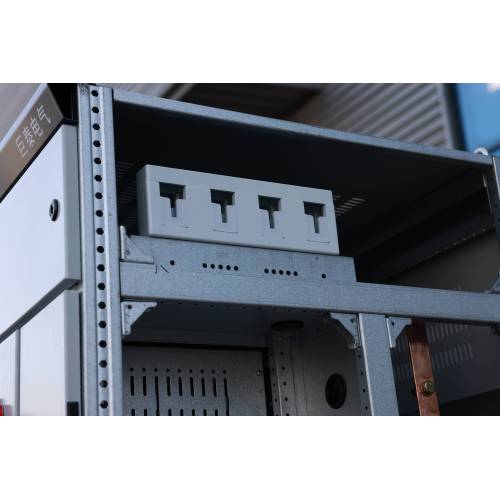

Technical Features:

1. Enhanced Heat Capacity: The GCS switchgear improves the heat capacity of adapters, significantly reducing additional temperature rise for connectors, cable logs, and spacers.

2. Clear Separation: It offers clear and reliable separation between functional units and compartments, ensuring that a failure in one unit does not affect the operation of others, thus minimizing the impact of any fault.

3. Dynamic and Thermal Stability: The horizontal arrangement of the bus bar provides good dynamic and thermal stability, with the ability to withstand short-circuit currents of 80/176kA.

4. High Circuit Capacity: A single MCC switchgear can accommodate up to 22 circuits, meeting the needs of large single-unit power generation and automated motor groups in industries like petrochemicals.

5. Flexible Configuration: The GCS switchgear allows for a flexible configuration of various types of switches within the cabinet, according to user needs, ensuring high reliable operation of products.

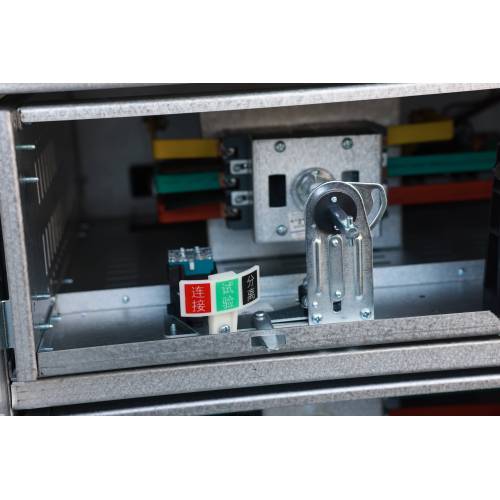

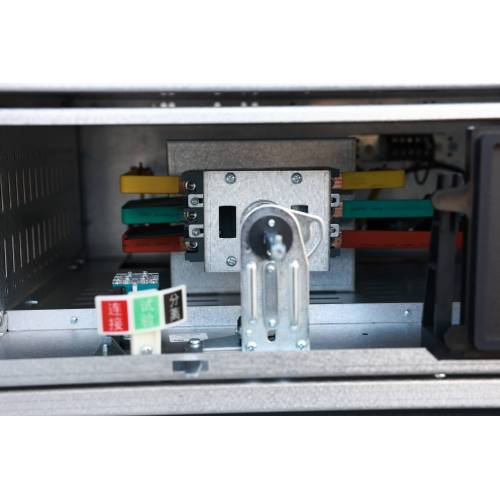

6. Secondary Connectors: The drawer unit is equipped with a sufficient number of secondary connectors (32 pairs for units of 1 and above, 20 pairs for 1/2 units), meeting the requirements for computer interfaces and automatic control circuits.

Product Advantages:

1. High Thermal Stability: The GCS Drawer Type Switch Cabinet is designed to handle high current loads and ensure effective connection, providing excellent thermal stability.

2. Clear Separation of Functional Units: This feature allows for minimized fault impact and enhances safety during maintenance.

3. Interlocking Mechanisms: The GCS switchgear includes interlocking mechanisms that prevent accidental operation during maintenance, enhancing safety.

4. Guidance Systems: These systems limit the possibility of misalignment during installation, reducing the risks associated with electrical faults.

5. High Protection Level: The GCS switchgear offers a high level of protection, suitable for use in environments with special requirements such as explosion prevention in the petrochemical industry.
