GCS Switchgear with Flexible Combination

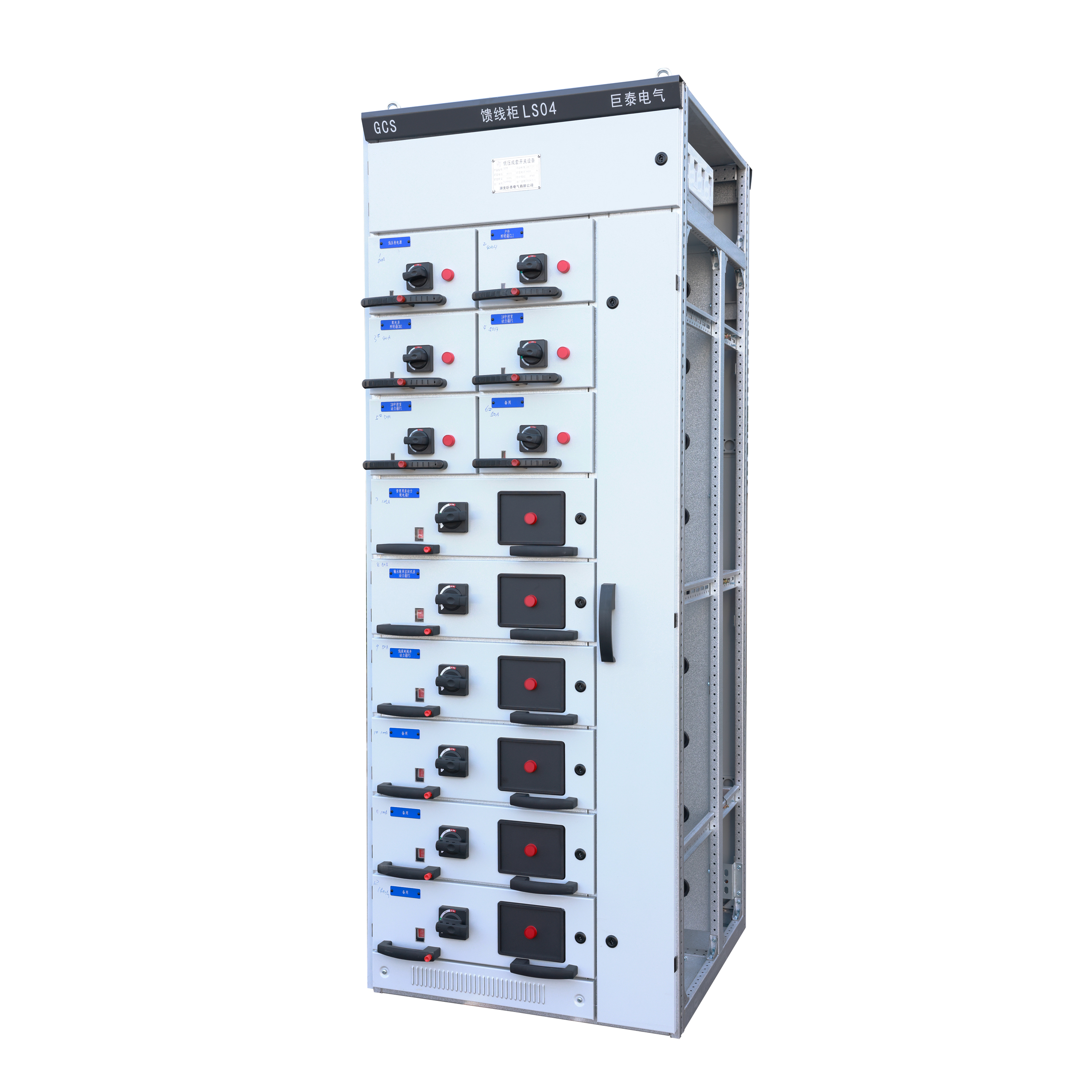

GCS Low-Voltage Draw-Out Switchgear

Product Description:

• Next-Generation High-Performance Drawer Type Switch Cabinet, designed to meet the demands of various industries.
• Approved by both the Ministry of Electric Power and the Ministry of Mechanical Industry.
• Ideal for three-phase AC systems with a frequency of 50/60Hz, a rated voltage of 380/660V, and a rated current up to 4000A.

Application Fields:

• Widely used in outdoor 6-10kV ring networks and end-user facilities.
• Suitable for industrial parks, residential areas, commercial centers, parks, stations, airports, ports, oil fields, and temporary facilities.

Technical Features:

1. Enhanced Thermal Capacity: Transfer components with enhanced thermal capacity to reduce additional temperature rise.
2. Clear Separation of Functional Units: Clear separation between functional units and compartments to contain faults.
3. High Thermal Stability: Capable of withstanding short-circuit currents of 80/176kA.
4. Large-Capacity Drawer Switchgear: Can hold up to 22 circuits, catering to the needs of large power plants and automated systems.
5. Ample Secondary Connectors: Sufficient secondary connectors in drawer units for computer interfaces and control circuits.

Product Advantages:

1. High Thermal Stability: Ensures stable operation under high short-circuit currents.
2. Clear Separation of Functional Units: Facilitates quick fault location and isolation, enhancing safety and maintenance efficiency.
