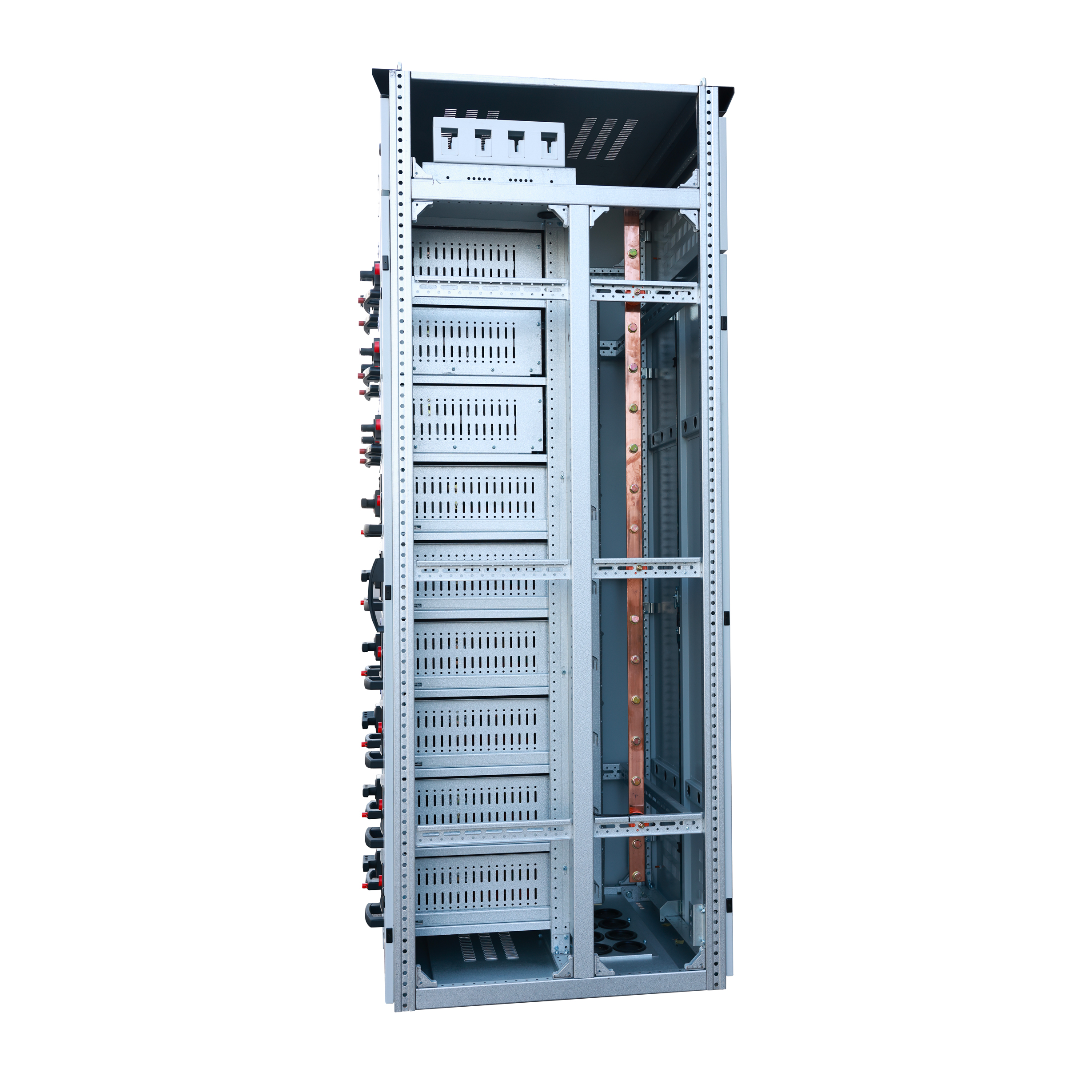

GCS Low-Voltage Draw-Out Switchgear: The Pinnacle of Modern Electrical Distribution

Product Description

Welcome to the GCS Low-Voltage Drawer Switchgear, a revolutionary electrical distribution solution crafted to address the multifaceted needs of modern industrial and commercial applications. This switchgear is designed with reliability and efficiency at its core, making it the perfect fit for power distribution, motor control, and reactive power compensation in low-voltage systems.

Key Features

1. High Performance Standards:

   • Constructed to meet rigorous technical performance criteria, the GCS switchgear is adept at handling the demands of a variety of applications, including power generation, petrochemical, metallurgy, textiles, and construction.

2. Regulatory Compliance:

   • With endorsements from the Ministry of Electric Power and the Ministry of Mechanical Industry, this switchgear adheres to national standards, making it suitable for widespread adoption across multiple sectors.

3. Enhanced Thermal Management:

   • The design incorporates improved thermal capacity for transfer components, reducing additional temperature rise in connectors and cable heads, thus enhancing the safety and longevity of the equipment.

4. Fault Isolation:

   • The GCS switchgear boasts clear separation between functional units and compartments, ensuring that a fault in one unit does not disrupt the operation of others, containing issues and preserving system integrity.

5. Robust Short-Circuit Protection:

   • With the ability to withstand short-circuit currents of up to 80/176kA, the GCS switchgear offers excellent thermal and dynamic stability, making it ideal for high-power environments.

6. Flexible Circuit Configuration:

   • Capable of accommodating up to 22 circuits in a single cabinet, the GCS switchgear is designed to cater to the needs of large-scale operations and automated systems, providing flexibility for various configurations.

7. Ample Connectivity Options:

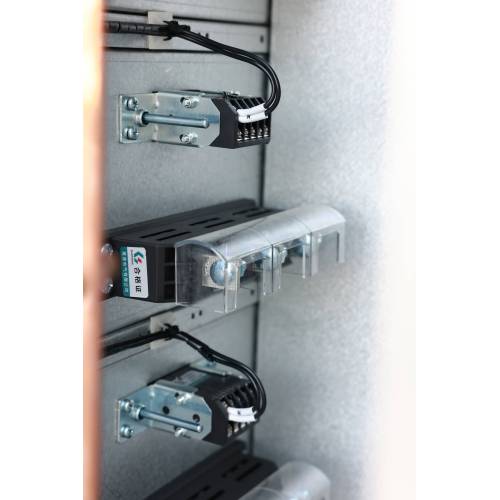

   • The drawer units are equipped with a sufficient number of secondary connectors (32 pairs for units of 1 and above, 20 pairs for 1/2 units), simplifying integration with computer interfaces and automatic control circuits.

8. Safety and Maintenance Features:

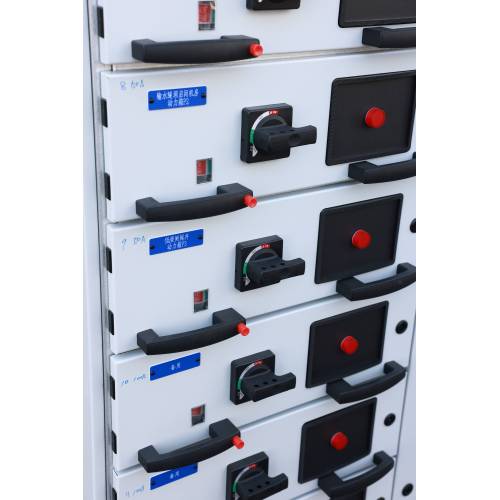

   • The GCS switchgear includes interlocking mechanisms to prevent accidental operation during maintenance and guidance systems to ensure proper alignment during installation, enhancing operational safety.

Conclusion

The GCS Low-Voltage Drawer Type Switch Cabinet is a testament to reliable and efficient solutions for low-voltage power distribution, blending advanced technology with robust safety features. Its versatility and adherence to industry standards make it an ideal choice for a broad spectrum of applications, ensuring seamless operation and dependable performance in critical electrical systems.
