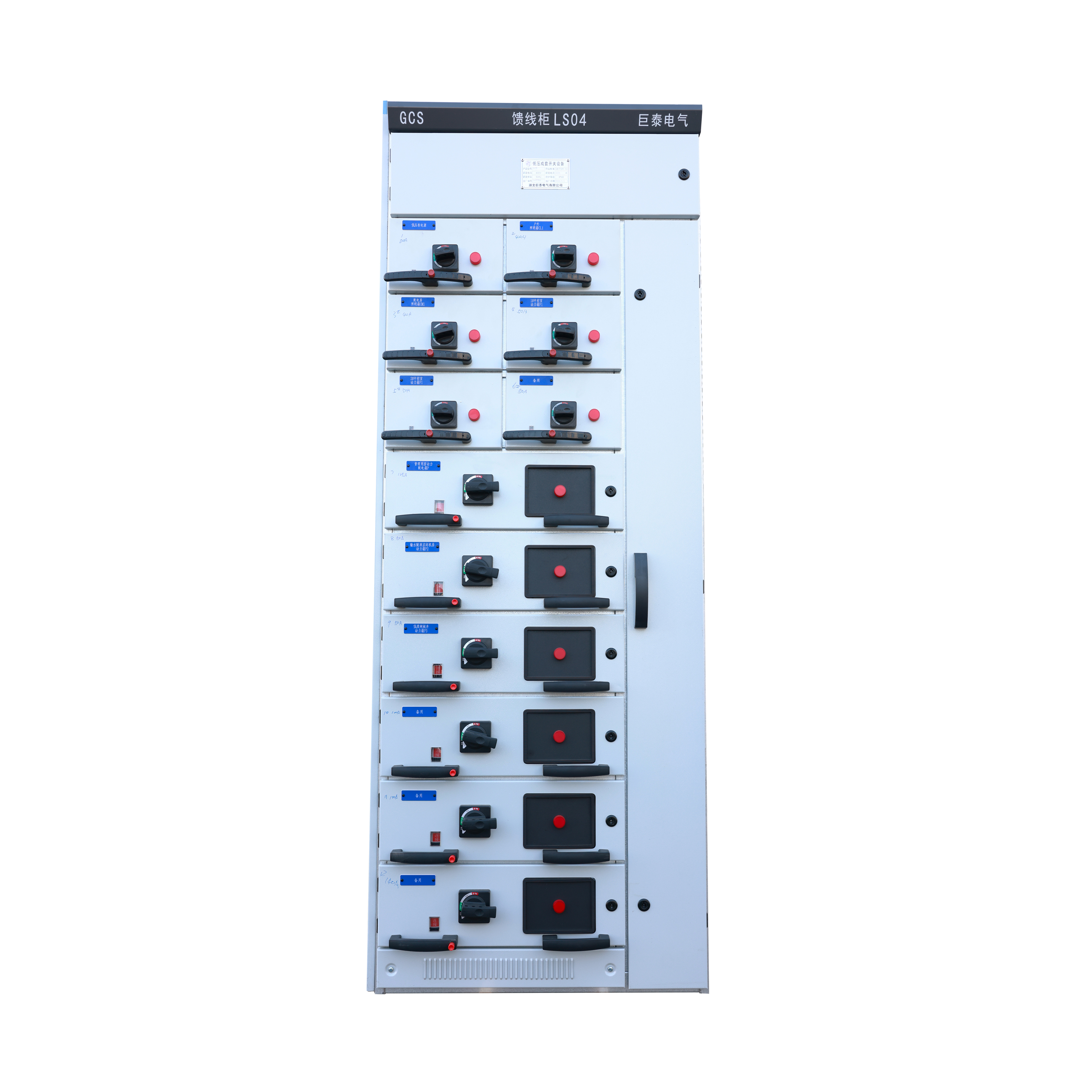

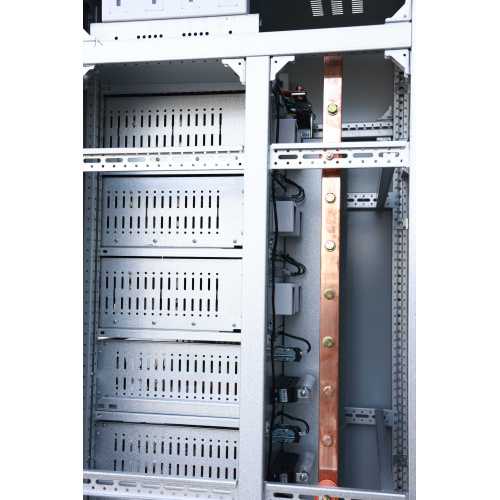

GCS Low-Voltage Draw-Out Switchgear: Efficiency and Reliability for Modern Power Systems

Product Description

The GCS Low-Voltage Drawer Switchgear is a state-of-the-art electrical distribution solution designed for efficiency and reliability in various industrial and commercial applications. This switchgear is engineered to meet the specific demands of modern power systems, offering a blend of advanced technical performance and adaptability to the dynamic requirements of the electric power market.

Key Features

1. Advanced Technical Performance:

   • Crafted with high technical performance metrics, ensuring compatibility with a wide range of power distribution needs, from power generation and control to reactive power compensation.

2. Versatile Application:

   • Widely utilized in sectors such as power generation, oil, chemical, metallurgy, textiles, communications, and construction, making it a versatile choice for any distribution system.

3. Regulatory Approval:

   • Having passed a stringent joint appraisal, the GCS switchgear has received endorsements from the Ministry of Electric Power and the Ministry of Mechanical Industry, solidifying its reputation for quality and safety.

4. High Thermal Capacity:

   • Designed to enhance the thermal capacity of transfer components, reducing the additional temperature rise that can affect connectors and cable heads, thus improving the overall safety and longevity of the system.

5. Clear Functional Separation:

   • The GCS switchgear provides clear separation between functional units and compartments, ensuring that a fault in one unit does not impact the operation of others, thereby minimizing the scope of any potential fault.

6. Thermal and Dynamic Stability:

   • With the ability to withstand short-circuit currents of 80/176kA, the GCS switchgear offers excellent thermal and dynamic stability, making it suitable for high-power applications.

7. High Circuit Capacity:

   • Capable of accommodating up to 22 circuits in a single MCC cabinet, the GCS switchgear is well-suited to meet the needs of large single-unit capacity power plants and automated electric gate (machine) groups in the petrochemical industry.

8. Ample Secondary Connectors:

   • The drawer units are equipped with a sufficient number of secondary connectors to meet the interface point requirements for computer interfaces and automatic control circuits.

9. Safety and Reliability:

   • The GCS switchgear is designed with safety and reliability in mind, incorporating features such as interlocking mechanisms to prevent accidental operation during maintenance and guidance systems to limit misalignment during installation.

Conclusion

The GCS Low-Voltage Drawer Type Switch Cabinet is the ideal choice for applications requiring high reliability, ease of maintenance, and compliance with the latest industry standards. Its robust design and advanced features make it a preferred solution for a wide range of power distribution challenges.
