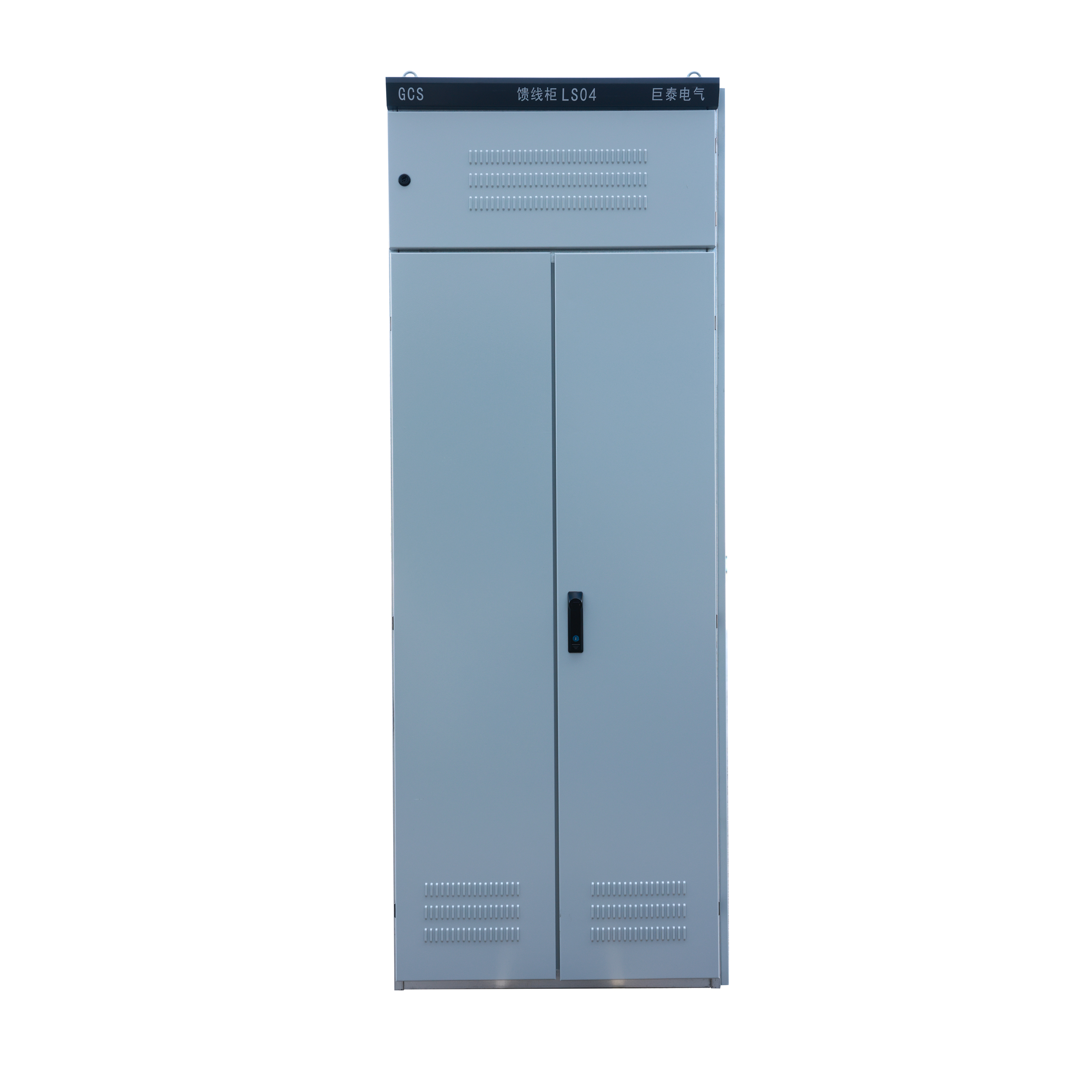

GCS low voltage drawout switchgear

Introducing the GCS Low-Voltage Drawer Switchgear, a sophisticated electrical solution engineered for low-voltage power distribution and control. This equipment is tailored to meet the precise demands of modern industrial and commercial facilities, delivering exceptional technical performance and adaptability to the dynamic power sector.

Technical features: Increase the heat capacity of the adapter, and significantly reduce the additional temperature rise of the connector, cable head, and partition due to the temperature rise of the adapter. The separation between functional units and compartments is clear and reliable, and the failure of a certain unit will not affect the operation of other units, so that the failure is limited to the minimum range. Good thermal stability, can withstand the impact of 80/176kA short-circuit current.

Key Attributes

1. Optimized Design:

   • The GCS switchgear boasts an optimized design that maximizes space and functionality, featuring a compact footprint with a high density of functional units, ideal for space-constrained facilities.

2. Industry-Wide Acceptance:

   • Approved by the Ministry of Electric Power and the Ministry of Mechanical Industry, the GCS switchgear has established itself as a standard choice across various industries, including power generation, petrochemical, metallurgy, and construction.

3. Thermal Management:

   • Enhanced thermal capacity in transfer components significantly reduces additional temperature rise, protecting the performance and lifespan of connectors, cable heads, and partition plates.

4. Isolation and Safety:

   • Clear separation between functional units and compartments prevents fault spread, ensuring that a malfunction in one unit does not affect the entire system.

5. Rugged Construction:

   • Designed to withstand short-circuit currents up to 80/176kA, the GCS switchgear offers excellent thermal and dynamic stability, suitable for high-power applications.

6. Flexibility in Configuration:

   • Capable of accommodating up to 22 circuits in a single cabinet, the GCS switchgear is perfect for large facilities with high automation requirements, such as power plants and petrochemical systems.

7. Interface Compatibility:

   • With a sufficient number of secondary connectors, the GCS switchgear ensures compatibility with computer interfaces and automatic control circuits, integrating seamlessly with modern control systems.

8. Safety Features:

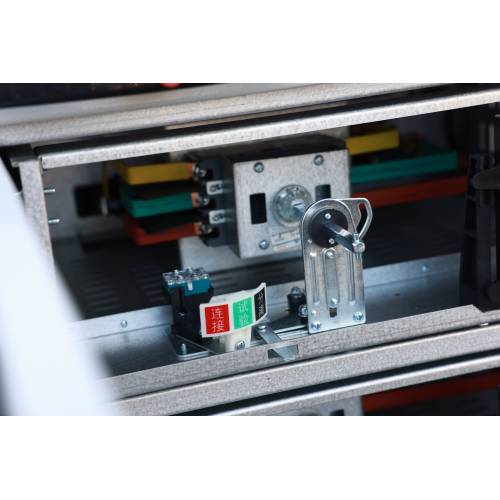

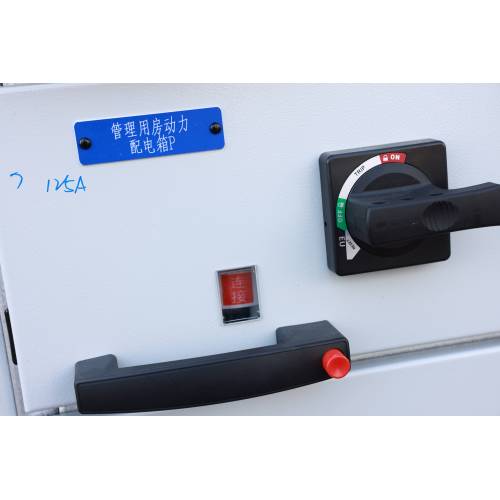

   • Incorporating interlocking mechanisms to prevent accidental operation during maintenance and guidance systems to reduce installation misalignment, the GCS switchgear enhances overall safety and reliability.

Conclusion

The GCS Low-Voltage Drawer Type Switch Cabinet is a testament to modern engineering, combining efficiency, safety, and versatility to provide a reliable solution for low-voltage power distribution and control across a broad spectrum of applications. It stands as a reliable choice for industries seeking a high-performance switchgear solution that is both adaptable and dependable.
