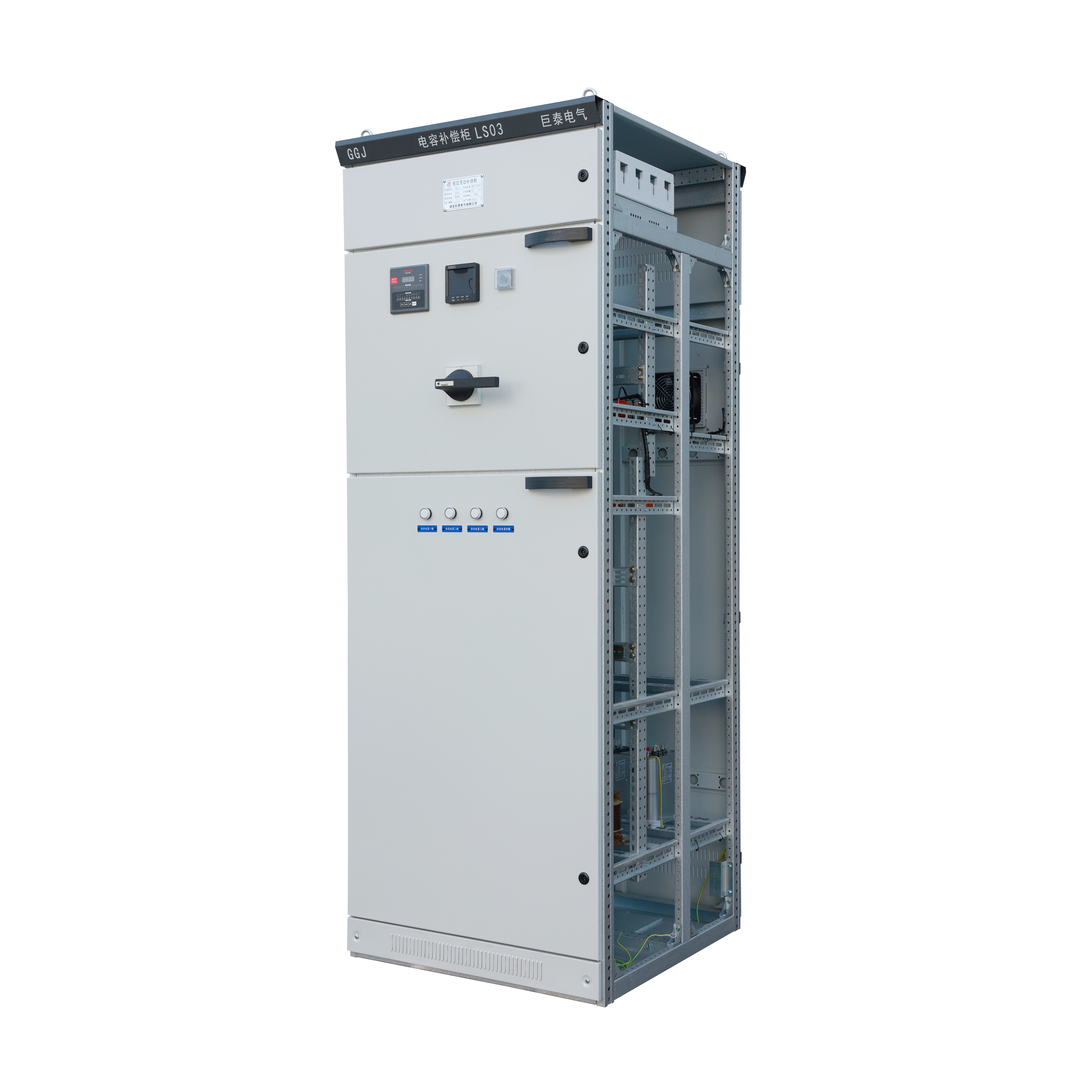

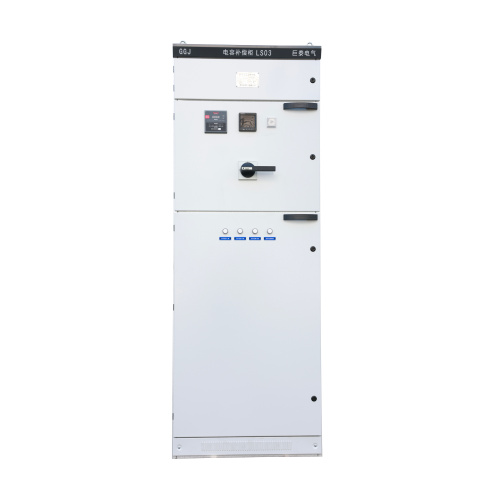

GGJ Exchangeable Low-voltage Switch Panel

Drawer-type Switchgear Product Description:

The Draw-Out Switchgear is extensively applied across power generation facilities, distribution substations, industrial and mining enterprises, and in the power distribution centers of high-rise buildings (PC) as well as motor control centers (MCC). Designed for use in alternating current (AC) systems with a frequency of 50-60Hz, a rated working voltage not exceeding 660V, and a rated current up to 4000A. This Drawer Switchgear is utilized for distribution and centralized control of motors, as well as for reactive power compensation in low-voltage switchgear assemblies.

Application Fields:

It is broadly utilized in 6-10kV ring networks and end-user applications, encompassing a variety of outdoor settings such as industrial zones, residential complexes, shopping centers, parks, transportation hubs, airports, harbors, oil fields, and temporary facilities.

Technical Features:

1. Compact Design: Allows for a higher number of functional units within a confined space, thereby reducing investment costs for the user.
2. High Versatility and Flexibility: The structure boasts a modularity based on 25mm increments, enabling any combination of draw-out units to satisfy specific system design demands.
3. Insulation Protection: The vertical busbars and outgoing lines are well-insulated, ensuring safe and reliable maintenance from the rear of the cabinet.
4. Mechanical Interlock Mechanism: A distinctive mechanism is in place, providing secure positions for operation, testing, extraction, and isolation.
5. Drawer Advancement Mechanism: Incorporates ball bearings, enhancing the interchangeability of drawers of identical specifications.
6. Combinatorial Flexibility: The design offers a high degree of combinatorial flexibility, permitting the combination of drawer-type and fixed compartment schemes.
7. Live-Door Protection System: An effective system safeguards the safety of front-side cabinet maintenance.
8. Pole Outgoing Line Selection: The option to select either three-pole or four-pole outgoing lines is available as per requirements.

Product Advantages:

1. Compact Construction: For space efficiency.
2. High Structural Versatility: And assembly flexibility.
3. Excellent Insulation Protection: For vertical busbars and outgoing lines.
4. Innovative Mechanical Interlock Mechanism: For enhanced safety.
5. High Combinatorial Design Flexibility: To meet various configuration needs.
6. Dependable Live-Door Protection System: For secure front-side maintenance.

The drawer-type switchgear is an optimal choice for modern power distribution needs, combining efficiency, safety, and adaptability in low-voltage electrical installations.
