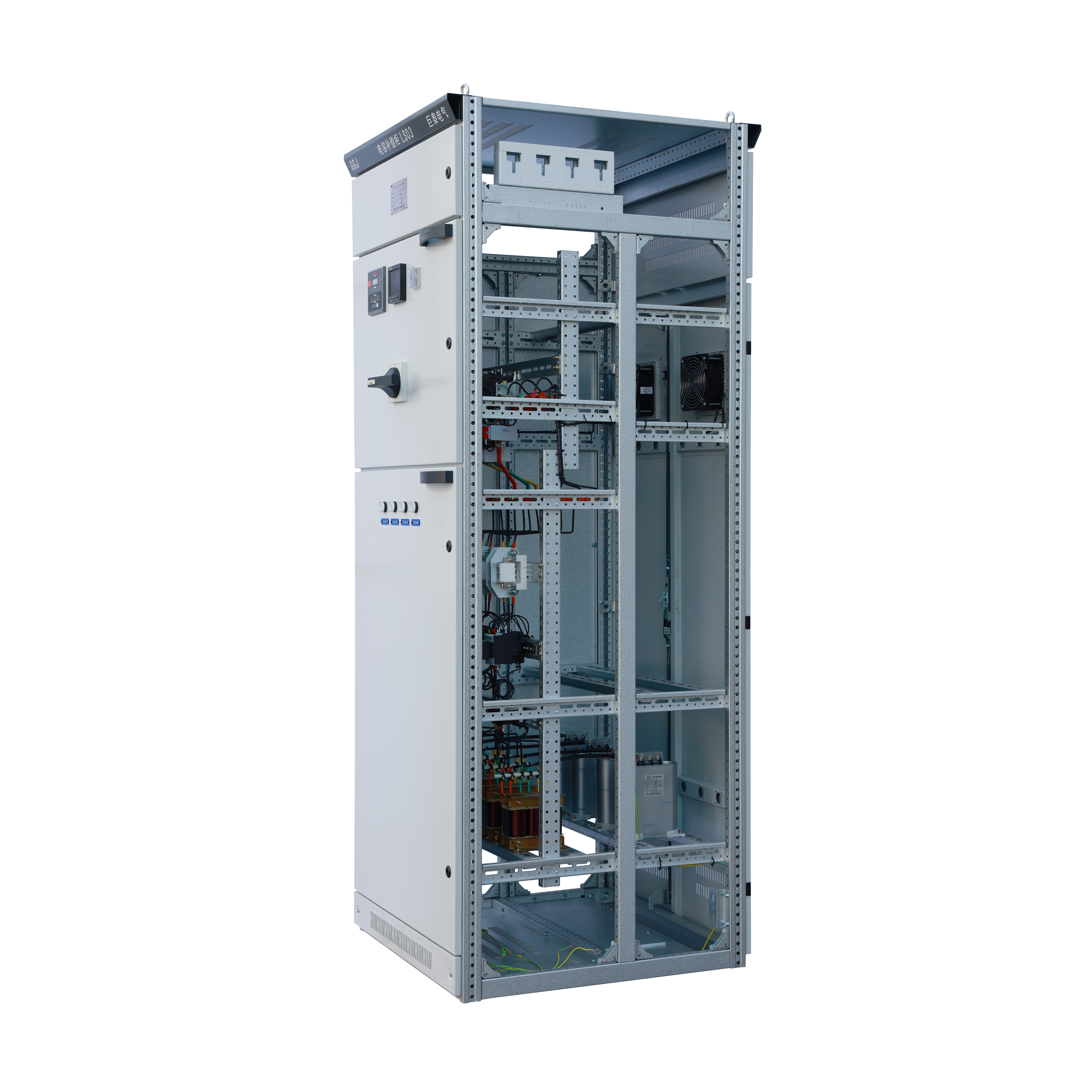

GGJ Modular Draw-out Switchgear

Product Description:

The Drawer-type Switchgear is a state-of-the-art solution in low-voltage power distribution, engineered for exceptional performance and safety in electrical control systems. It serves a diverse range of applications, including heavy industrial processes, commercial complexes, and utility networks. This switchgear is designed to operate in three-phase AC systems with a frequency of 50/60Hz and a rated voltage of 380V, effectively managing currents up to 4000A.

Key Features:

1. Modular Configuration:

   • The switchgear's modular design allows for customization to fit specific project requirements, offering flexibility in configuration and the adaptability to meet changing electrical demands.

2. Draw-Out Functionality:

   • The system's draw-out functionality permits easy access to the switchgear's components, streamlining maintenance and minimizing downtime. This feature allows maintenance personnel to work on the unit while it is disconnected from the main power supply.

3. Safety and Isolation:

   • The Drawer Switchgear incorporates separate chambers for functional units, busbars, and cables, ensuring independent operation and safe isolation of each component. This design enhances safety during both operation and maintenance.

4. Mechanical Interlocking:

   • The system features mechanical interlocking that prevents the switchgear from operating when the drawers are in the withdrawn position, providing an additional layer of safety during maintenance.

5. Durable and Corrosion-Resistant:

   • Constructed with high-quality materials, the switchgear offers resistance to corrosion and wear, ensuring reliable long-term performance and durability.

6. Thermal Management:

   • The switchgear's design includes efficient heat dissipation, maintaining optimal operating temperatures and prolonging the life of electrical components.

The Draw-Out Switchgear stands out as a reliable and safe choice for low-voltage power distribution, providing a blend of advanced features and robust construction to meet the demands of modern electrical systems.
