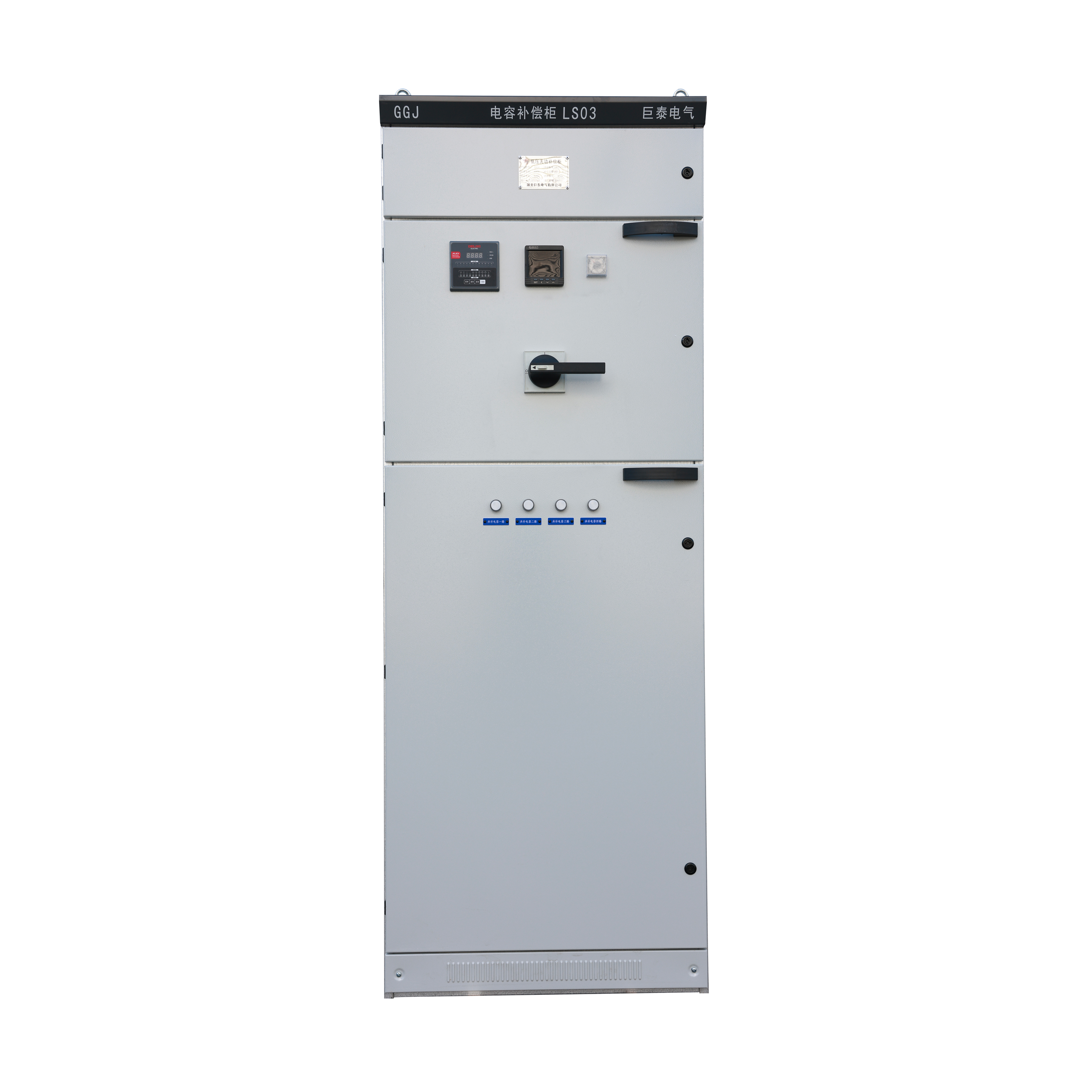

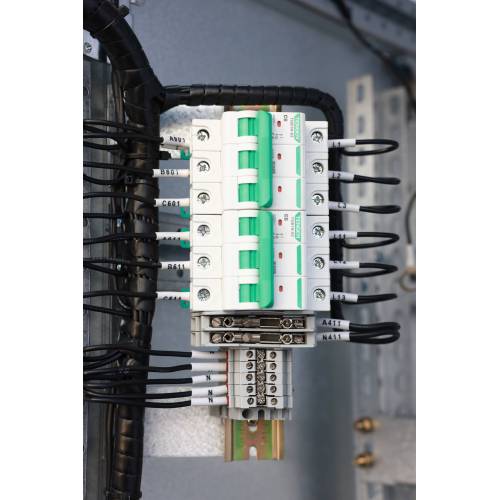

GGJ Slide-Out Low-voltage Switch Panel

Product Description:

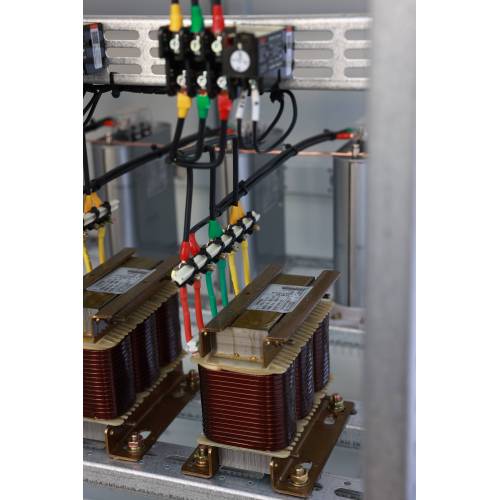

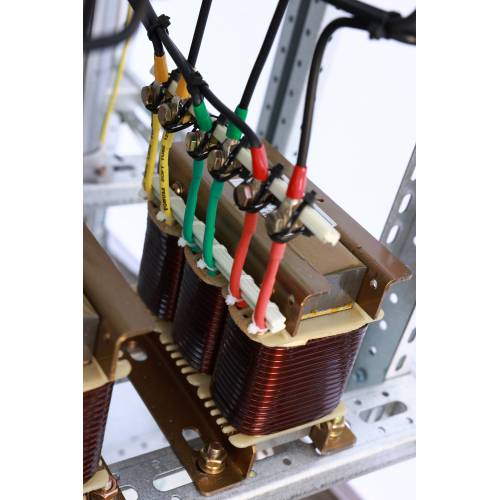

The Drawer-type Switchgear is extensively utilized in power plants, substations, industrial and mining enterprises, as well as in the power distribution centers of high-rise buildings (PC) and motor control centers (MCC). Designed for AC systems with a frequency of 50-60Hz, with a rated working voltage of up to 660V and a rated current not exceeding 4000A, it serves in the distribution and centralized control of power supply and motor systems, as well as for reactive power compensation in low-voltage switchgear.

Application Fields:

This Drawer Switchgear is widely applicable in outdoor environments such as 6-10kV loop networks and end-user facilities, including industrial parks, residential areas, commercial districts, parks, stations, airports, ports, oil fields, and temporary setups.

Technical Features:

1. Compact Design: Enabling the accommodation of a multitude of functional units in a limited space, which economizes on user investment.
2. High Structural Universality and Flexible Assembly: With a modular system based on 25mm increments, allowing for the arbitrary combination of various draw-out unit sizes to meet system design specifications.
3. Vertical Busbars and Outgoing Lines: Equipped with robust insulation protection, ensuring the safety of rear cabinet maintenance.
4. Mechanical Interlocking Mechanism: A unique mechanism is present, offering reliable operation, test, withdrawal, and isolation positions for enhanced safety and reliability.
5. Drawer Mechanism: Features roller bearings, which enhances the interchangeability of drawers of the same model.
6. Combinatorial Flexibility: The design offers a high degree of combinatorial flexibility, allowing for the free combination of drawer-type and fixed partition-type configurations.
7. Live-Door Protection System: A reliable system is in place to ensure the safety of front cabinet maintenance.
8. Pole Outgoing Line Options: The option to choose between three-pole and four-pole outgoing lines is available based on needs.

Product Advantages:

1. Compact Structure: For space efficiency.
2. High Structural Universality: And flexible assembly.
3. Robust Insulation Protection: For vertical busbars and outgoing lines.
4. Unique Mechanical Interlocking Mechanism: For enhanced safety.
5. High Combinatorial Flexibility: In design.
6. Reliable Live-Door Protection System: For front maintenance safety.

The Draw-Out Switchgear is designed to enhance the efficiency and safety of power distribution, offering a blend of modularity, reliability, and user-friendly maintenance in low-voltage electrical installations.
