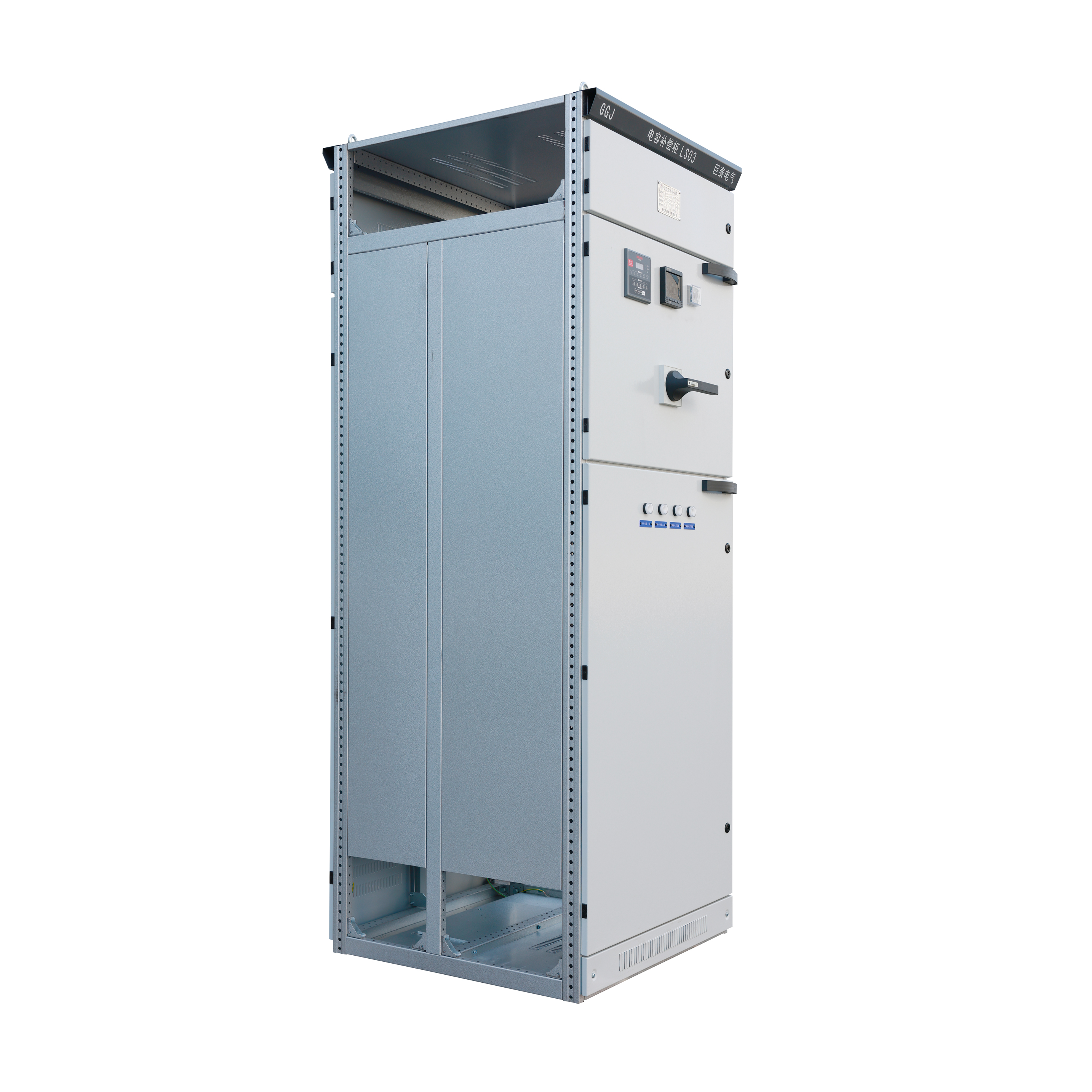

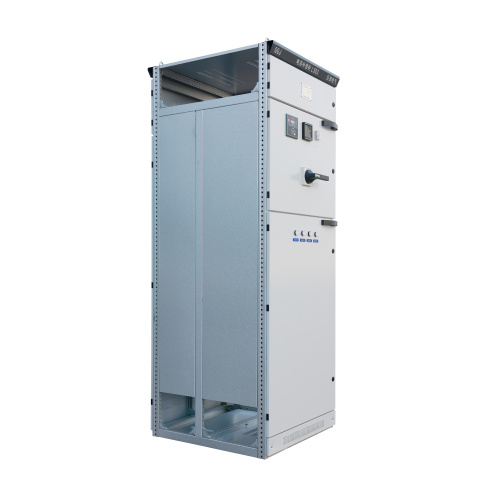

GGJ Removable Low-voltage Switchboard

Product Description:

The Drawer-type Switchgear is a versatile solution for power distribution in a variety of settings, including power stations, distribution centers, industrial complexes, and high-rise building power distribution centers (PC) and motor control centers (MCC). Engineered for AC systems operating at 50-60Hz, with a maximum rated working voltage of 660V and a maximum rated current of 4000A, it is suitable for distribution and control of power and motor systems, as well as for power factor correction in low-voltage switchgear applications.

Application Scope:

This Drawer Switchgear is ideal for outdoor applications in 6-10kV ring networks and for end-users, covering a broad spectrum of environments such as industrial zones, residential communities, shopping areas, recreational spaces, transit hubs, aviation facilities, port facilities, oil extraction sites, and temporary installations.

Technical Highlights:

1. Space-Saving Design: Allows for a high density of functional units within a compact footprint, minimizing investment for users.
2. High Structural Flexibility and Modularity: With a 25mm modular grid that facilitates the customization of various draw-out unit configurations to fit specific design requirements.
3. Insulation Protection: Superior insulation protection for vertical busbars and outgoing lines ensures safe and reliable maintenance from the back of the cabinet.
4. Mechanical Interlock System: A distinctive mechanical interlock system provides secure positions for operating, testing, extracting, and isolating, enhancing safety and dependability.
5. Drawer Sliding Mechanism: Equipped with ball bearings, which ensures strong interchangeability among drawers of the same specification.
6. Modularity: The design offers a high level of modularity, enabling the combination of drawer-type and fixed compartment configurations as needed.
7. Live-Door Safety System: A dependable live-door safety system is integrated to safeguard the integrity of front-side maintenance.
8. Pole Selection Option: The option to select between three-phase or four-phase outgoing lines is available to meet specific requirements.

Product Benefits:

1. Space-Saving Construction: For efficient use of area.
2. High Structural Adaptability: And modular assembly.
3. Superior Insulation Protection: For vertical busbars and outgoing lines.
4. Innovative Mechanical Interlock System: For enhanced safety.
5. Modular Design: For flexible configuration options.
6. Dependable Live-Door Safety System: For secure front-side maintenance.

The Drawer Type Switch Cabinet is designed to enhance the efficiency and safety of power distribution, offering a blend of modularity, reliability, and user-friendly maintenance in low-voltage electrical installations.
