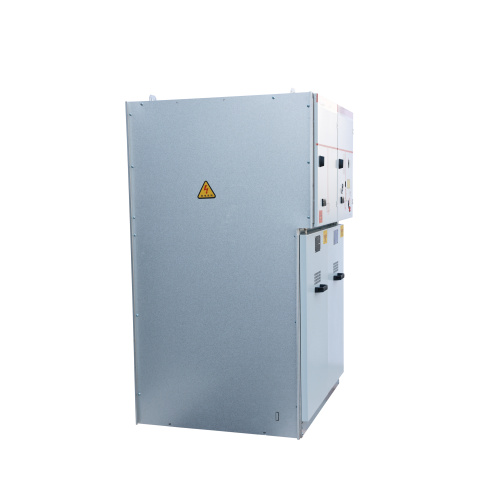

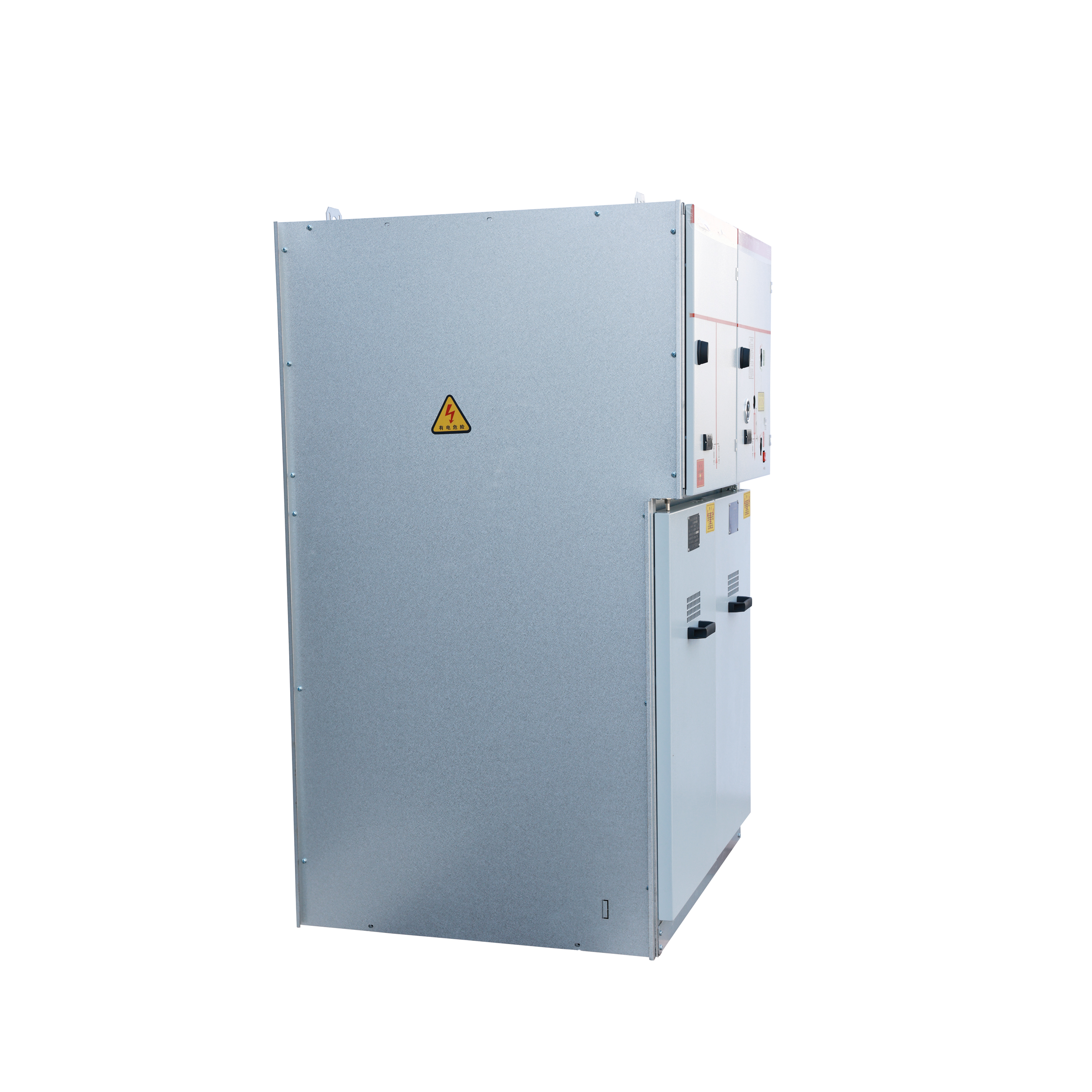

HXGN-12 Industrial Grade SF6 High Voltage Switchgear

HXGN-12 High-Voltage SF6 Integrated Switchgear

HXGN-12 box-type fixed ring network high-voltage switchgear is widely used in power distribution systems such as industrial and mining enterprises, residential areas, high-rise buildings, and school parks to distribute load current. It can also close the rated short-circuit current, and can also be used to break the transformer no-load current, the current of overhead lines or cable lines at a certain distance. The ring network cabinet with fuse can cut off the short-circuit current as a protective switch. It is also suitable for installation in box-type substations.

Technical Specifications:

• Rated Voltage: 12kV, designed for medium-voltage power systems.
• Frequency: 50Hz, compatible with the standard frequency of power grids.
• Rated Current: Multiple configurations available to match various load demands.
• Short-Circuit Withstand Current: Up to 50kA for 4 seconds, providing protection during fault conditions.
• Peak Withstand Current: Capable of withstanding peak currents of up to 125kA.
• Protection Class: IP2X, offering protection against the ingress of solid objects.
• Dimensions: Customizable to fit various installation spaces.
• Weight: Typically ranges from 800 to 1100kg, depending on the specific configuration.

Product Features:

• Metal-Enclosed Structure: Provides superior protection against environmental factors and enhances safety.
• Modular Design: Allows for customization and easy integration into existing electrical systems.
• Separate Compartments: Reduces the risk of electrical faults and facilitates maintenance with separate chambers for breakers, busbars, cables, and control units.
• Pressure Relief Channels: Safeguards against internal pressure buildup during fault conditions.
• Mechanical Interlocking: Ensures that the switchgear cannot be operated incorrectly, reducing the risk of accidents.
• Circuit Breaker Compatibility: Works with a range of vacuum circuit breakers for flexibility in circuit protection.
• Isolation Switches: High-quality switches for reliable operation and safe maintenance.
• Top Busbar System: Optimizes current distribution for improved efficiency.
• Internal Illumination: Assists in maintenance and inspection tasks with built-in lighting.

Storage and Transportation:

• Storage: Should be kept in its original packaging to maintain product integrity.
• Transportation: Requires protection from direct sunlight, rain, and extreme temperatures during transit.

Applications:

• Power Generation Facilities: For efficient power distribution and control.
• Transformer Stations: To manage the flow of electricity from power plants to local grids.
• Industrial and Mining Enterprises: To ensure reliable power supply in harsh and demanding environments.
• Commercial Buildings: To provide a stable power supply for commercial and office spaces.
