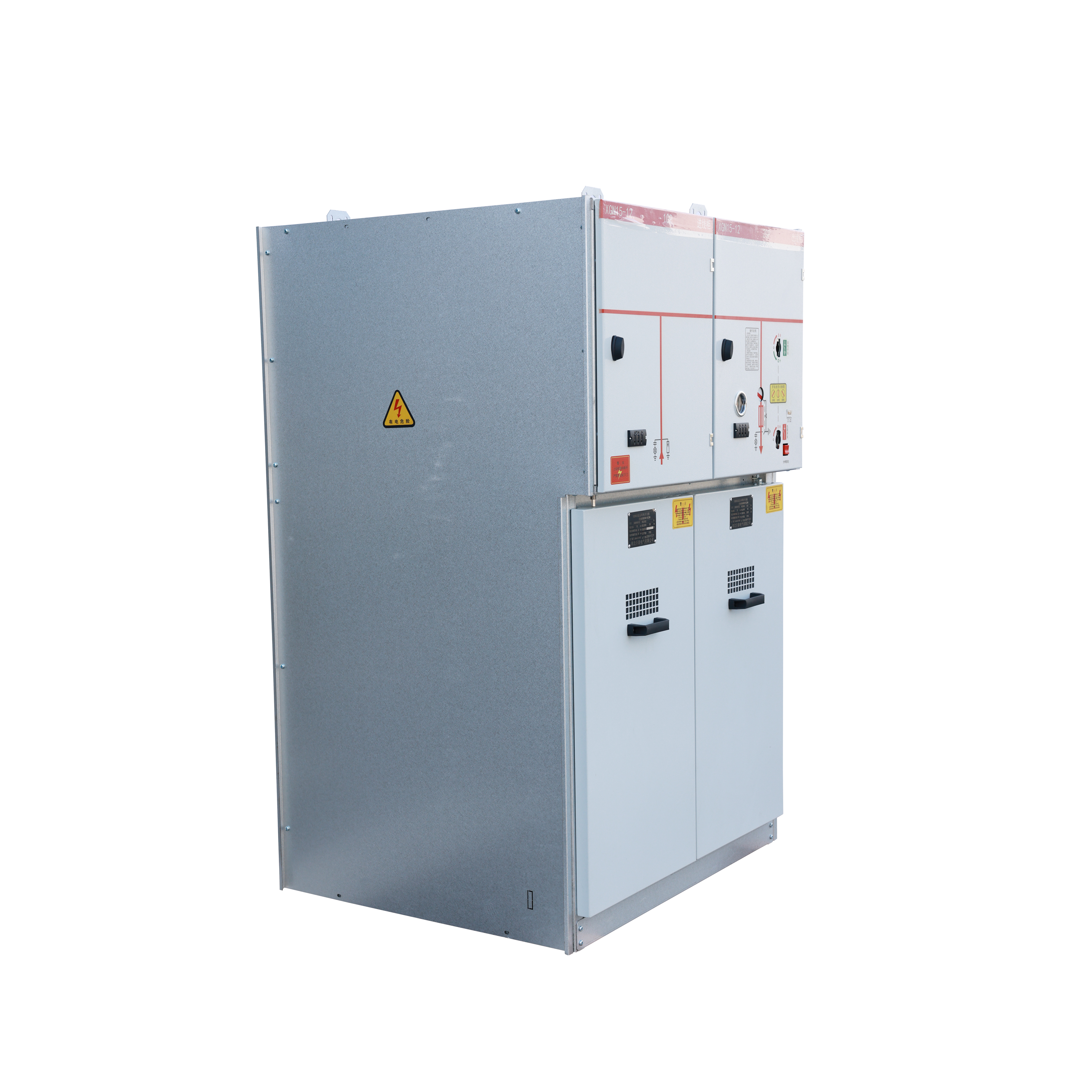

HXGN-12 SF6 Gas-Insulated Switchgear for Ring Networks

Product Overview: XGN2-12 Fixed Metal Enclosed Switchgear

Product Summary: The XGN2-12 Fixed Metal Closed Switchgear is a medium-voltage switchgear solution that has been engineered for exceptional safety, reliability, and performance in power distribution applications. This switchgear is designed to meet the rigorous demands of modern electrical systems, offering a blend of advanced technology and robust construction to ensure efficient power management.

Technical Specifications:

• Rated Voltage: 12kV, suitable for medium-voltage power systems.
• Frequency: 50Hz, compatible with the standard frequency of power grids.
• Rated Current: Multiple configurations available to match various load demands.
• Short-Circuit Withstand Current: Up to 50kA for 4 seconds, ensuring protection during fault conditions.
• Peak Withstand Current: Capable of withstanding peak currents of up to 125kA.
• Protection Class: IP2X, offering protection against the ingress of solid objects.
• Dimensions: Customizable to fit various installation spaces.
• Weight: Typically ranges from 800 to 1100kg, depending on the specific configuration.

Product Features:

• Metal-Enclosed Structure: Provides superior protection against environmental factors and enhances safety.
• Modular Design: Allows for customization and easy integration into existing electrical systems.
• Separate Compartments: Reduces the risk of electrical faults and facilitates maintenance with separate chambers for breakers, busbars, cables, and control units.
• Pressure Relief Channels: Safeguards against internal pressure buildup during fault conditions.
• Mechanical Interlocking: Ensures that the switchgear cannot be operated incorrectly, reducing the risk of accidents.
• Circuit Breaker Compatibility: Works with a range of vacuum circuit breakers for flexibility in circuit protection.
• Isolation Switches: High-quality switches for reliable operation and safe maintenance.
• Efficient Busbar System: Features a top-mounted busbar system for optimal current distribution.
• Internal Illumination: Assists in maintenance and inspection tasks with built-in lighting.

Operational Conditions:

• Ambient Temperature: Designed to operate in environments with an ambient temperature not exceeding 40°C.
• Altitude: Suitable for use up to 3000m above sea level.
• Atmospheric Conditions: Intended for use in clean, non-corrosive environments.
• Humidity: Capable of operating in high humidity conditions without performance degradation.

Storage and Transportation:

• Storage: Should be kept in its original packaging to maintain product integrity.
• Transportation: Requires protection from direct sunlight, rain, and extreme temperatures during transit.

Applications:

• Power Generation Facilities: For efficient power distribution and control.
• Transformer Stations: To manage the flow of electricity from power plants to local grids.
• Industrial and Mining Enterprises: To ensure reliable power supply in harsh and demanding environments.
• Commercial Buildings: To provide a stable power supply for commercial and office spaces.

Why Choose XGN2-12:

• Compliance with Standards: Adheres to international safety and performance standards.
• Versatility: Adaptable to a wide range of configurations and system requirements.
• Durability: Built to withstand harsh conditions and provide long-term reliability.
• Maintenance-Friendly Design: Engineered for easy maintenance to extend service life.

The XGN2-12 Fixed Metal-Enclosed Switchgear is a symbol of reliability and safety in medium-voltage power distribution, offering a comprehensive solution for the energy management needs of various industries. Its advanced features and robust design ensure that it meets the demanding requirements of today’s electrical infrastructure.
