Product Briefing: XGN2-12 Fixed Metal Enclosed Switchgear

Introduction: The XGN2-12 Fixed Metal-Enclosed Switchgear is a cutting-edge solution for medium-voltage power distribution, designed to offer unparalleled safety, efficiency, and adaptability. This switchgear is crafted to meet the stringent requirements of modern electrical systems, providing a reliable backbone for energy management in diverse industry sectors.

Key Technical Specifications:

• Rated Voltage: 12kV, aligning with medium-voltage system standards.
• Frequency: 50Hz, compatible with the standard frequency of power grids.
• Rated Current: Various configurations available to cater to different load requirements.
• Short-Circuit Withstand Current: Up to 50kA for 4 seconds, ensuring safety during fault conditions.
• Peak Withstand Current: Capable of withstanding peak currents of up to 125kA.
• Protection Class: IP2X, safeguarding against the ingress of solid objects.
• Dimensions: Customizable to fit various installation spaces.
• Weight: Typically ranges from 800 to 1100kg, depending on the specific configuration.

Product Features:

• Metal-Enclosed Structure: Provides superior protection against environmental factors and enhances safety.
• Modular Design: Allows for customization and easy integration into existing electrical systems.
• Separate Compartments: Reduces the risk of electrical faults and facilitates maintenance with separate chambers for breakers, busbars, cables, and control units.
• Pressure Relief Channels: Safeguards against internal pressure buildup during fault conditions.
• Mechanical Interlocking: Ensures that the switchgear cannot be operated incorrectly, reducing the risk of accidents.
• Circuit Breaker Compatibility: Works with a range of vacuum circuit breakers for flexibility in circuit protection.
• Isolation Switches: High-quality switches for reliable operation and safe maintenance.

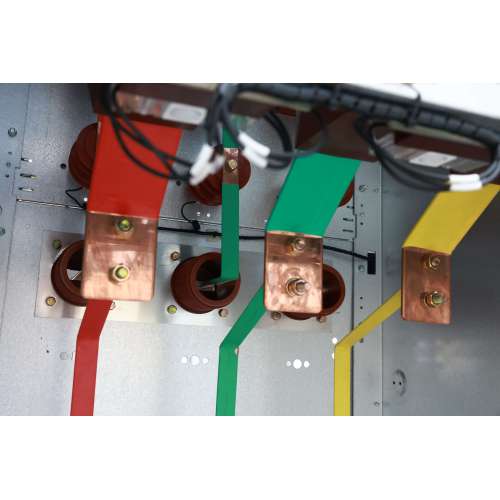

• Efficient Busbar System: Features a top-mounted busbar system for optimal current distribution.
• Internal Illumination: Assists in maintenance and inspection tasks with built-in lighting.

Operational Conditions:

• Ambient Temperature: Designed to operate in environments with an ambient temperature not exceeding 40°C.
• Altitude: Suitable for use up to 3000m above sea level.
• Atmospheric Conditions: Intended for use in clean, non-corrosive environments.
• Humidity: Capable of operating in high humidity conditions without performance degradation.

Storage and Transportation:

• Storage: Should be kept in its original packaging to maintain product integrity.
• Transportation: Requires protection from direct sunlight, rain, and extreme temperatures during transit.

Applications:

• Power Generation Facilities: For efficient power distribution and control.
• Transformer Stations: To manage the flow of electricity from power plants to local grids.
• Industrial and Mining Enterprises: To ensure reliable power supply in harsh and demanding environments.
• Commercial Buildings: To provide a stable power supply for commercial and office spaces.

Why Choose XGN2-12:

• Compliance with Standards: Adheres to international safety and performance standards.
• Versatility: Adaptable to a wide range of configurations and system requirements.
• Durability: Built to withstand harsh conditions and provide long-term reliability.
• Maintenance-Friendly Design: Engineered for easy maintenance to extend service life.

The XGN2-12 Fixed Metal Closed Switchgear is a symbol of reliability and safety in medium-voltage power distribution, offering a comprehensive solution for the energy management needs of various industries. Its advanced features and robust design ensure that it meets the demanding requirements of today’s electrical infrastructure.
