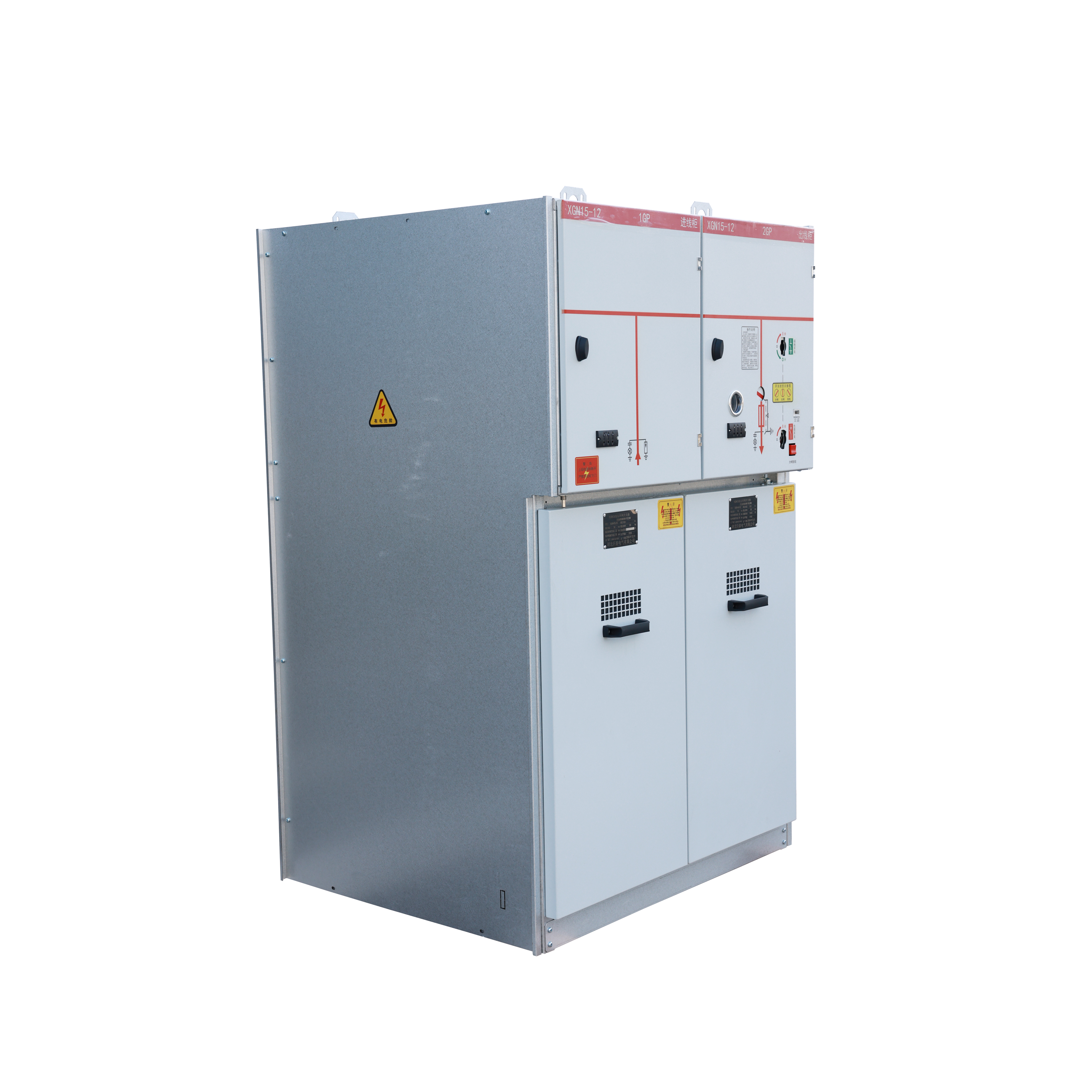

HXGN-12 Prefabricated Box Substation with SF6 Insulation

Comprehensive Overview: XGN2-12 Fixed Metal Enclosed Switchgear

Introduction: The XGN2-12 Fixed Metal Closed Switchgear is a highly reliable and efficient solution for medium-voltage power distribution. Designed with advanced technology and stringent safety standards, this switchgear is ideal for various applications, including industrial, commercial, and utility sectors, where secure and effective power management is crucial.

Technical Specifications:

• Rated Voltage: 12kV, suitable for medium-voltage applications.
• Frequency: 50Hz, compatible with standard electrical systems.
• Rated Current: Available in multiple configurations to meet diverse load requirements.
• Short-Circuit Withstand Current: Up to 50kA for 4 seconds, ensuring protection during fault conditions.
• Peak Withstand Current: Capable of withstanding peak currents of up to 125kA.
• Protection Class: IP2X, providing protection against solid objects.
• Dimensions: Customizable to fit specific installation requirements.
• Weight: Typically ranges from 800 to 1100kg, depending on configuration.

Key Features:

• Robust Metal-Enclosed Design: Offers enhanced safety and protection against environmental factors, ensuring the integrity of internal components.
• Compartmentalized Structure: Features separate chambers for circuit breakers, busbars, cables, and control devices, minimizing the risk of electrical faults and facilitating maintenance.
• Pressure Relief Mechanism: Designed with pressure relief channels to safely manage internal pressure during fault conditions.

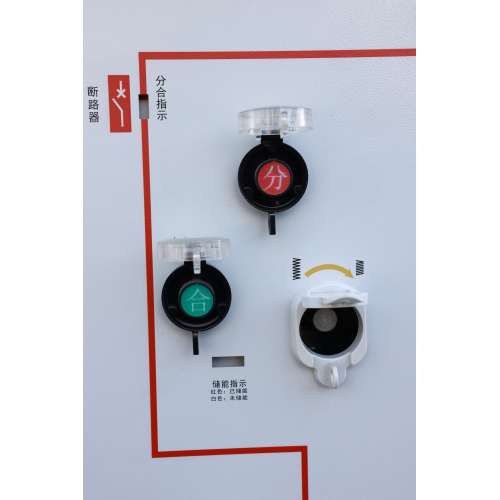

• Mechanical Interlocking System: Prevents unauthorized operation and ensures safe switching procedures.
• Flexible Circuit Breaker Options: Compatible with various vacuum circuit breakers, allowing for tailored protection solutions.
• High-Quality Isolation Switches: Ensures reliable operation and safe maintenance practices.
• Efficient Busbar Configuration: Top-mounted busbar system for optimal current distribution.
• Built-in Lighting: Internal illumination aids in maintenance and inspection tasks.

Operational Environment:

• Ambient Temperature: Designed to operate in environments with an ambient temperature not exceeding 40°C.
• Altitude: Suitable for use up to 3000m above sea level.
• Atmospheric Conditions: Intended for use in clean, non-corrosive environments.
• Humidity Tolerance: Capable of operating in high humidity conditions without performance degradation.

Storage and Transportation:

• Storage Requirements: Should be stored in its original packaging to maintain product integrity.
• Transportation Guidelines: Requires protection from direct sunlight, rain, and extreme temperatures during transit.

Applications:

• Power Generation Facilities: For efficient power distribution and control.
• Transformer Stations: To manage the flow of electricity from power plants to local grids.
• Industrial and Mining Operations: To ensure reliable power supply in harsh and demanding environments.
• Commercial Buildings: To provide a stable power supply for various commercial applications.

Why Choose XGN2-12:

• Compliance with International Standards: Adheres to safety and performance standards, ensuring reliability and peace of mind.
• Versatility: Adaptable to a wide range of configurations and system requirements, making it suitable for various applications.
• Durability: Built to withstand harsh conditions, providing long-term reliability and performance.
• Maintenance-Friendly Design: Engineered for ease of maintenance, extending the service life of the equipment.

The XGN2-12 Fixed Metal-Enclosed Switchgear is a reliable and efficient solution for medium-voltage power distribution, designed to meet the demanding needs of modern electrical infrastructure. Its advanced features and robust design ensure optimal performance and safety in a wide range of applications.
