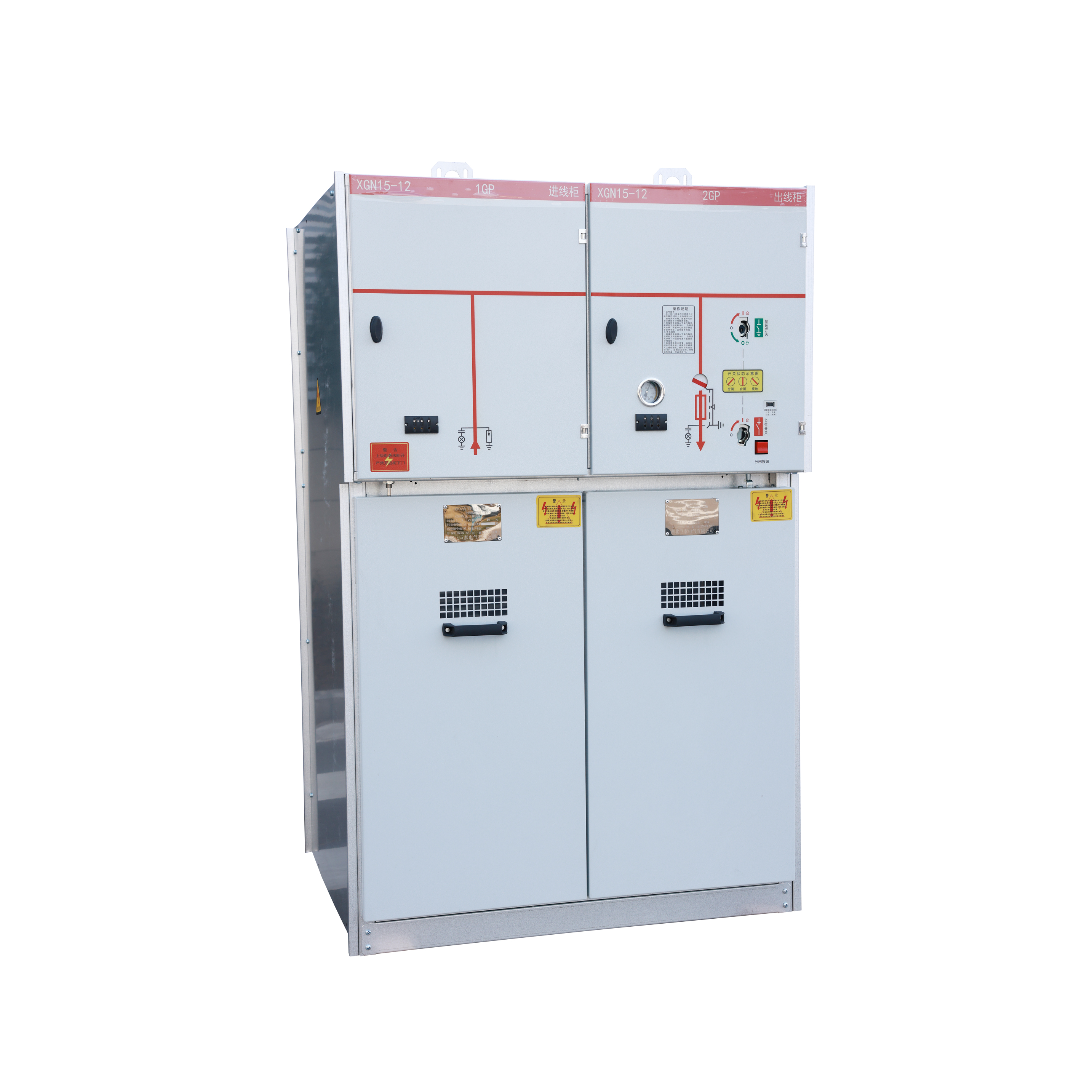

HXGN-12 Series AC Metal Enclosed Ring Main Unit

Technical Datasheet: XGN2-12 Fixed Metal Closed Switchgear

Product Description: The XGN2-12 Fixed Metal Enclosed Switchgear is a medium-voltage switchgear system that has been designed to meet the highest standards of safety and efficiency in electrical power distribution. This switchgear is ideal for applications where reliable and secure power management is critical.

Key Technical Specifications:

• Rated Voltage: 12kV, suitable for medium-voltage applications.
• Frequency: 50Hz, compatible with standard power grid frequencies.
• Rated Current: Multiple configurations available to accommodate various load requirements.
• Short-Circuit Withstand Current: Up to 50kA for 4 seconds, ensuring safety during fault conditions.
• Peak Withstand Current: Capable of withstanding peak currents of up to 125kA.
• Protection Class: IP2X, providing protection against solid objects.
• Dimensions: Customizable to fit various installation spaces.
• Weight: Typically ranges from 800 to 1100kg, depending on the specific configuration.

Product Attributes:

• Metal-Enclosed Structure: Provides superior protection against environmental factors and enhances safety.
• Modular Design: Allows for customization and easy integration into existing electrical systems.

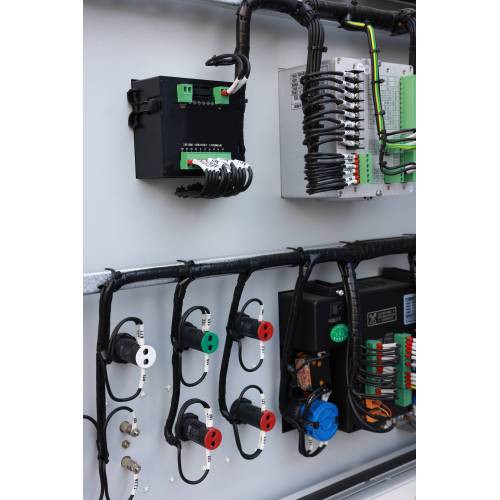

• Separate Compartments: Reduces the risk of electrical faults and facilitates maintenance with separate chambers for breakers, busbars, cables, and control units.
• Pressure Relief Channels: Safeguards against internal pressure buildup during fault conditions.
• Mechanical Interlocking: Ensures that the switchgear cannot be operated incorrectly, reducing the risk of accidents.
• Circuit Breaker Compatibility: Works with a range of vacuum circuit breakers for flexibility in circuit protection.
• Isolation Switches: High-quality switches for reliable operation and safe maintenance.

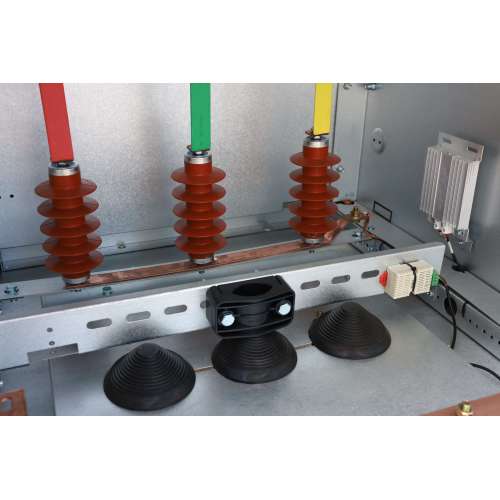

• Efficient Busbar System: Features a top-mounted busbar system for optimal current distribution.
• Internal Illumination: Assists in maintenance and inspection tasks with built-in lighting.

Operational Environment:

• Ambient Temperature: Designed to operate in environments with an ambient temperature not exceeding 40°C.
• Altitude: Suitable for use up to 3000m above sea level.
• Atmospheric Conditions: Intended for use in clean, non-corrosive environments.
• Humidity: Capable of operating in high humidity conditions without performance degradation.

Storage and Transportation:

• Storage: Should be kept in its original packaging to maintain product integrity.
• Transportation: Requires protection from direct sunlight, rain, and extreme temperatures during transit.

Applications:

• Power Generation Facilities: For efficient power distribution and control.
• Transformer Stations: To manage the flow of electricity from power plants to local grids.
• Industrial and Mining Enterprises: To ensure reliable power supply in harsh and demanding environments.
• Commercial Buildings: To provide a stable power supply for commercial and office spaces.

Why Opt for XGN2-12:

• Compliance with Standards: Adheres to international safety and performance standards.
• Versatility: Adaptable to a wide range of configurations and system requirements.
• Durability: Built to withstand harsh conditions and provide long-term reliability.
• Maintenance-Friendly Design: Engineered for easy maintenance to extend service life.

The XGN2-12 Fixed Metal-Enclosed Switchgear is a symbol of reliability and safety in medium-voltage power distribution, offering a comprehensive solution for the energy management needs of various industries. Its advanced features and robust design ensure that it meets the demanding requirements of today’s electrical infrastructure.
