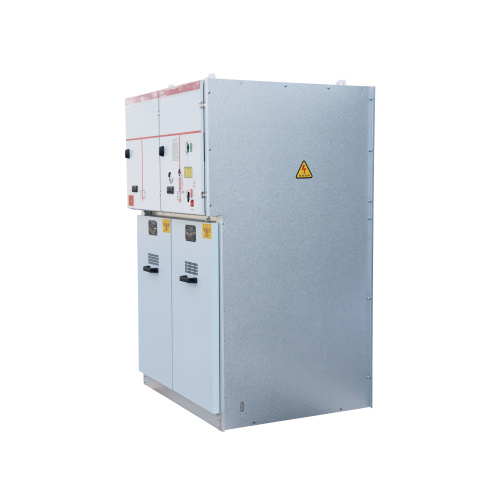

HXGN-12 Box-Type Fixed SF6 High Voltage Switchgear

Product Overview: XGN2-12 Fixed Metal Enclosed Switchgear

Introduction: The XGN2-12 Fixed Metal Closed Switchgear is a state-of-the-art medium-voltage switchgear solution designed for optimal safety, reliability, and efficiency in electrical power distribution. This switchgear is engineered to meet the rigorous demands of modern electrical systems, making it suitable for a wide range of applications across various industries.

Technical Specifications:

• Rated Voltage: 12kV, tailored for medium-voltage applications.
• Frequency: 50Hz, compatible with standard power grid frequencies.
• Rated Current: Available in multiple configurations to accommodate diverse load requirements.
• Short-Circuit Withstand Current: Up to 50kA for 4 seconds, ensuring robust protection during fault conditions.
• Peak Withstand Current: Capable of withstanding peak currents up to 125kA.
• Protection Class: IP2X, providing effective protection against solid objects.
• Dimensions: Customizable to fit specific installation requirements.
• Weight: Typically ranges from 800 to 1100kg, depending on the configuration.

Key Features:

• Metal-Enclosed Design: Offers enhanced safety and protection against environmental hazards, ensuring the integrity of internal components.
• Modular Compartmentalization: Features separate chambers for circuit breakers, busbars, cables, and control equipment, minimizing the risk of electrical faults and facilitating maintenance.
• Pressure Relief Mechanism: Designed with pressure relief channels to safely manage internal pressure during fault conditions.
• Mechanical Interlocking System: Prevents unauthorized operation and ensures safe switching procedures.
• Flexible Circuit Breaker Options: Compatible with various vacuum circuit breakers, allowing for tailored protection solutions.
• High-Quality Isolation Switches: Ensures reliable operation and safe maintenance practices.
• Efficient Busbar Arrangement: Top-mounted busbar system for optimized current distribution.
• Built-in Lighting: Internal illumination aids in maintenance and inspection tasks.

Operational Environment:

• Ambient Temperature: Designed to operate effectively in environments with an ambient temperature not exceeding 40°C.
• Altitude: Suitable for use at altitudes up to 3000m.
• Atmospheric Conditions: Intended for use in clean, non-corrosive environments.
• Humidity: Capable of operating in high humidity conditions without performance issues.

Storage and Transportation:

• Storage Requirements: Should be stored in its original packaging to maintain product integrity.
• Transportation Guidelines: Requires protection from direct sunlight, rain, and extreme temperatures during transit.

Applications:

• Power Generation Facilities: For efficient power distribution and control.
• Transformer Stations: To manage the flow of electricity from power plants to local grids.
• Industrial and Mining Operations: To ensure reliable power supply in harsh and demanding environments.
• Commercial Buildings: To provide a stable power supply for various commercial applications.

Why Choose XGN2-12?

• Standards Compliance: Adheres to international safety and performance standards, ensuring reliability.
• Versatility: Adaptable to a wide range of configurations and system requirements.
• Durability: Built to withstand harsh conditions, providing long-term reliability and performance.
• Maintenance-Friendly Design: Engineered for ease of maintenance to extend service life.

The XGN2-12 Fixed Metal-Enclosed Switchgear is a reliable and efficient solution for medium-voltage power distribution, designed to meet the demanding needs of modern electrical infrastructure. Its advanced features and robust design ensure optimal performance and safety across a variety of applications
