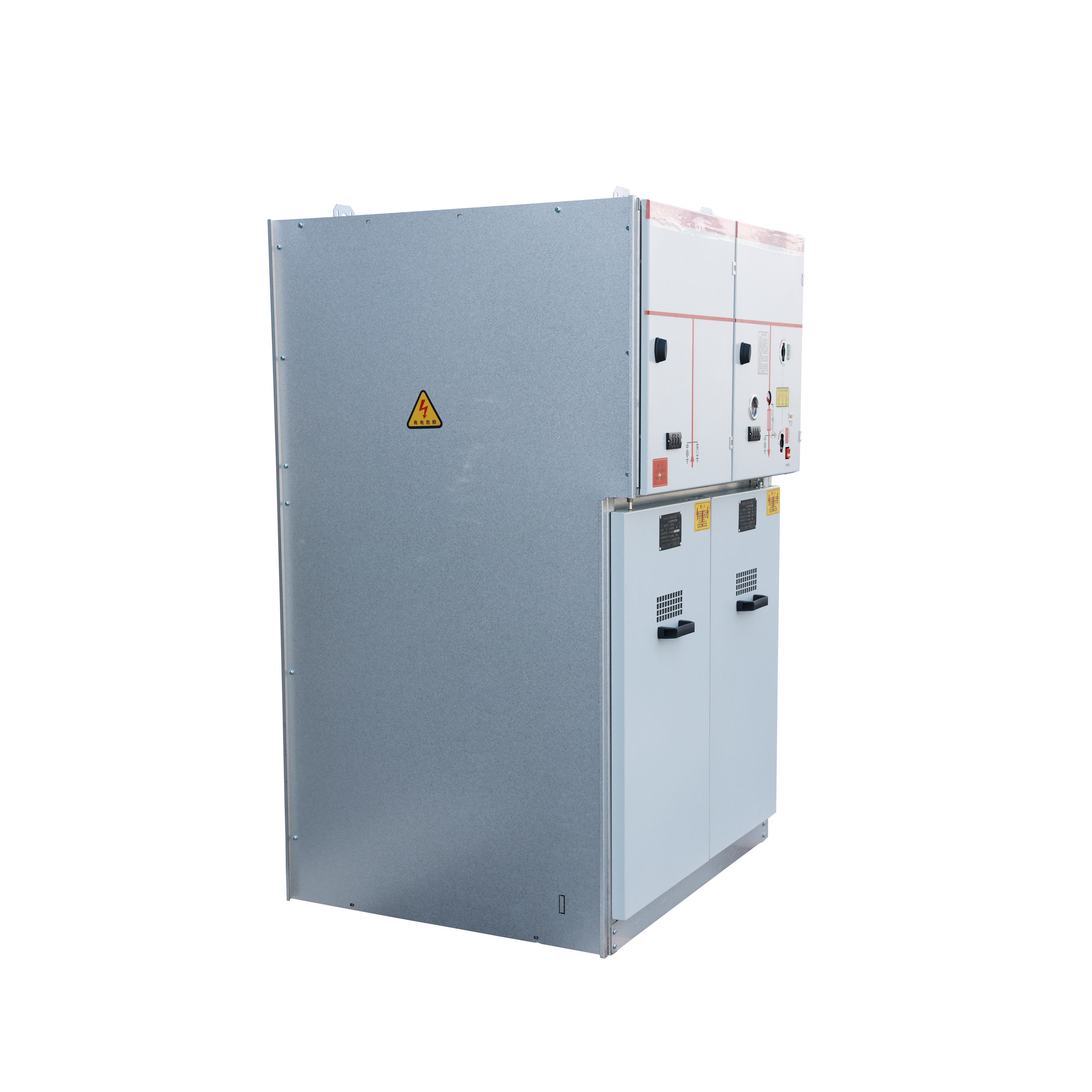

XGN2-12 Indoor Fixed Box-Type AC Metal Enclosed Switchgear

Product Specification: XGN2-12 Fixed Metal Enclosed Switchgear

Product Synopsis: The XGN2-12 Fixed Metal Closed Switchgear is a sophisticated medium-voltage switchgear system designed for the secure and efficient distribution of electrical power. This system is recognized for its robust construction, advanced safety features, and adaptability to various electrical configurations.

Technical Specifications:

• Voltage Rating: 12kV, catering to the needs of medium-voltage networks.
• Frequency: 50Hz, in line with the standard frequency of power grids.
• Rated Current: A range of current ratings to accommodate different load demands.
• Short-Time耐受电流: Up to 50kA for 4 seconds, ensuring protection during short-circuit events.
• Peak Withstand Current: Capable of withstanding peak currents of up to 125kA.
• Protection Class: IP2X, safeguarding against the ingress of solid objects.
• Dimensions: Customizable to fit various installation spaces.
• Weight: Varies based on the specific configuration, typically ranging from 800 to 1100kg.

Distinctive Attributes:

• Metal-Enclosed Construction: Provides superior protection against environmental factors and enhances safety.
• Compartmentalization: Features separate compartments for breakers, busbars, cables, and control units, reducing the risk of cross-contamination and improving safety.
• Pressure Relief Channels: Equipped with a pressure relief system to manage internal pressure in the event of an internal fault.

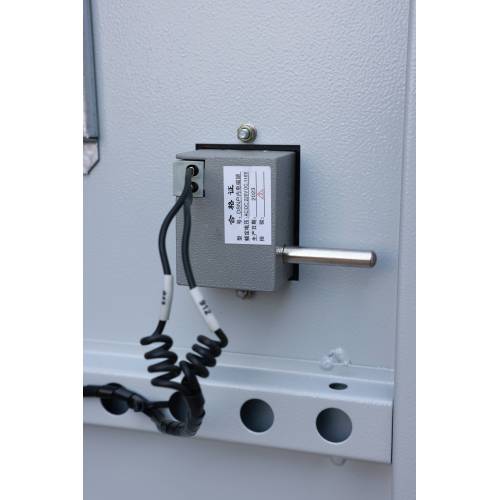

• Mechanical Interlocks: Prevents unauthorized operations and ensures safe switching procedures.
• Circuit Breaker Flexibility: Compatible with a variety of vacuum circuit breakers, offering flexibility in circuit protection.
• Isolation Switches: Incorporates high-quality isolation switches for reliable operation and maintenance.
• Efficient Busbar System: Features a top-mounted busbar system for efficient power distribution.
• Internal Illumination: Facilitates easier maintenance and inspection with built-in lighting.

Operational Conditions:

• Ambient Temperature: Designed to operate in environments with an ambient temperature not exceeding 40°C.
• Altitude: Suitable for use up to 3000m above sea level.
• Atmospheric Conditions: Intended for use in clean, non-corrosive environments.
• Humidity: Capable of operating in high humidity conditions without performance issues.

Storage and Transport:

• Storage: Should be kept in its original packaging to maintain its integrity.
• Transport: Requires protection from direct sunlight, rain, and extreme temperatures during transit.

Versatile Applications:

• Power Generation Facilities: For efficient power distribution and control.
• Transformer Stations: To manage the flow of electricity from power plants to local grids.
• Industrial and Mining Enterprises: To ensure reliable power supply in harsh and demanding environments.
• Commercial Buildings: To provide a stable power supply for commercial and office spaces.

Why Select XGN2-12:

• Compliance with Standards: Adheres to international safety and performance standards.
• Versatility: Adaptable to a wide range of configurations and system requirements.
• Durability: Built to withstand the test of time with a focus on long-term reliability.
• Ease of Maintenance: Designed for ease of maintenance to extend the service life.

The XGN2-12 Fixed Metal-Enclosed Switchgear is a symbol of reliability and safety in medium-voltage power distribution, offering a comprehensive solution for the energy management needs of various industries.
