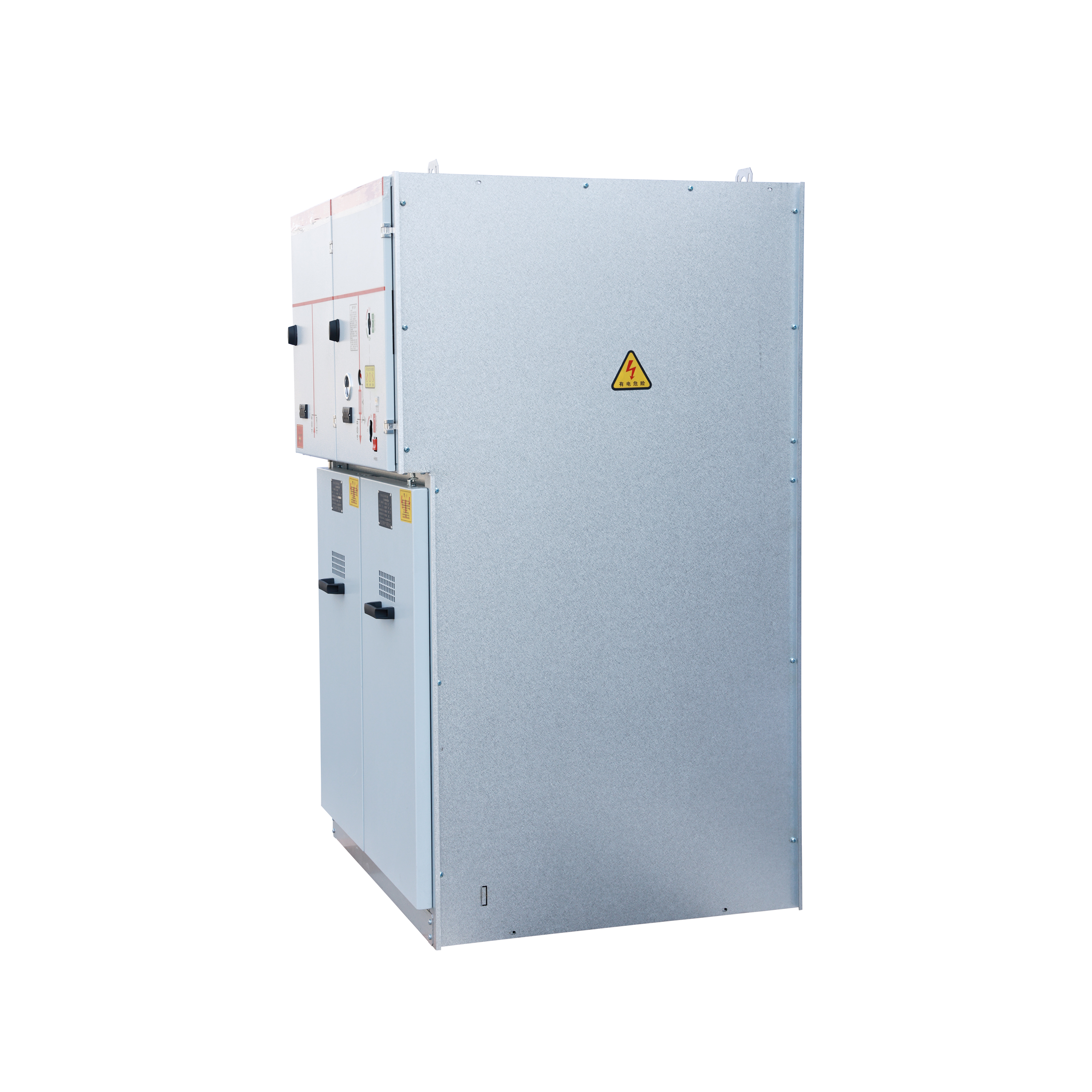

HXGN-12 Box type fixed metal enclosed switchgear

HXGN-12 Fixed Metal Enclosed Switchgear

HXGN-12 series box-type fixed ring network high-voltage switchgear is suitable for indoor three-phase AC 50Hz, rated voltage 3~12KV ring network power supply and user substation to receive, control and distribute electric energy. This cabinet fully meets the "five protection" requirements of the power system high-voltage switchgear, and is widely used in industrial and mining enterprises, residential areas, high-rise buildings and school parks and other power distribution systems to distribute load current, and can close the rated short-circuit current, and can also be used to break the transformer no-load current, a certain distance overhead line or cable line current, the ring network cabinet with fuse can cut off the short-circuit current as a protective switch.

Technical Specifications:

• Rated Voltage: 12kV, designed for medium-voltage electrical systems.
• Frequency: 50Hz, aligning with the standard frequency of power grids.
• Rated Current: Various configurations available to match specific load demands.
• Short-Circuit Withstand Current: Up to 50kA for 4 seconds, providing protection during fault conditions.
• Peak Withstand Current: Capable of withstanding peak currents of up to 125kA.
• Protection Class: IP2X, offering protection against the ingress of solid objects.
• Dimensions: Customizable to fit various installation spaces.
• Weight: Typically ranges from 800 to 1100kg, depending on the specific configuration.

Product Highlights:

• Metal-Enclosed Construction: Offers enhanced safety and protection against environmental factors.
• Modular Compartmentalization: Houses separate chambers for breakers, busbars, cables, and control equipment, enhancing safety and simplifying maintenance.
• Pressure Relief System: Includes a pressure relief system to manage internal pressure in the event of an internal fault.
• Mechanical Interlocking: Prevents unauthorized operation and ensures safe switching procedures.
• Circuit Breaker Compatibility: Compatible with various types of vacuum circuit breakers, offering flexibility in circuit protection.
• Isolation Switches: High-quality switches for reliable operation and safe maintenance.
• Top Busbar System: Efficient power distribution with a top-mounted busbar system.
• Internal Illumination: Facilitates easier maintenance and inspection with built-in lighting.

Operational Conditions:

• Ambient Temperature: Capable of operating in environments with an ambient temperature not exceeding 40°C.
• Altitude: Suitable for use up to 3000m above sea level.
• Atmospheric Conditions: Intended for use in clean, non-corrosive environments.
• Humidity: Can operate in high humidity conditions without performance degradation.

Storage and Transportation:

• Storage: Should be kept in its original packaging to maintain its integrity.
• Transportation: Requires protection from direct sunlight, rain, and extreme temperatures during transit.

Applications:

• Power Generation Facilities: For efficient power distribution and control.
• Transformer Stations: To manage the flow of electricity from power plants to local grids.
• Industrial and Mining Enterprises: To ensure reliable power supply in harsh and demanding environments.
• Commercial Buildings: To provide a stable power supply for commercial and office spaces.

Why Select XGN2-12:

• Compliance with Standards: Adheres to international safety and performance standards.
• Versatility: Adaptable to a wide range of configurations and system requirements.
• Durability: Built to withstand the test of time with a focus on long-term reliability.
• Maintenance Friendly: Designed for ease of maintenance to extend the service life.

The XGN2-12 Fixed Metal-Enclosed Switchgear is a symbol of reliability and safety in medium-voltage power distribution, offering a comprehensive solution for the energy management needs of various industries. Its advanced features and robust design ensure that it meets the demanding requirements of today’s electrical infrastructure.
